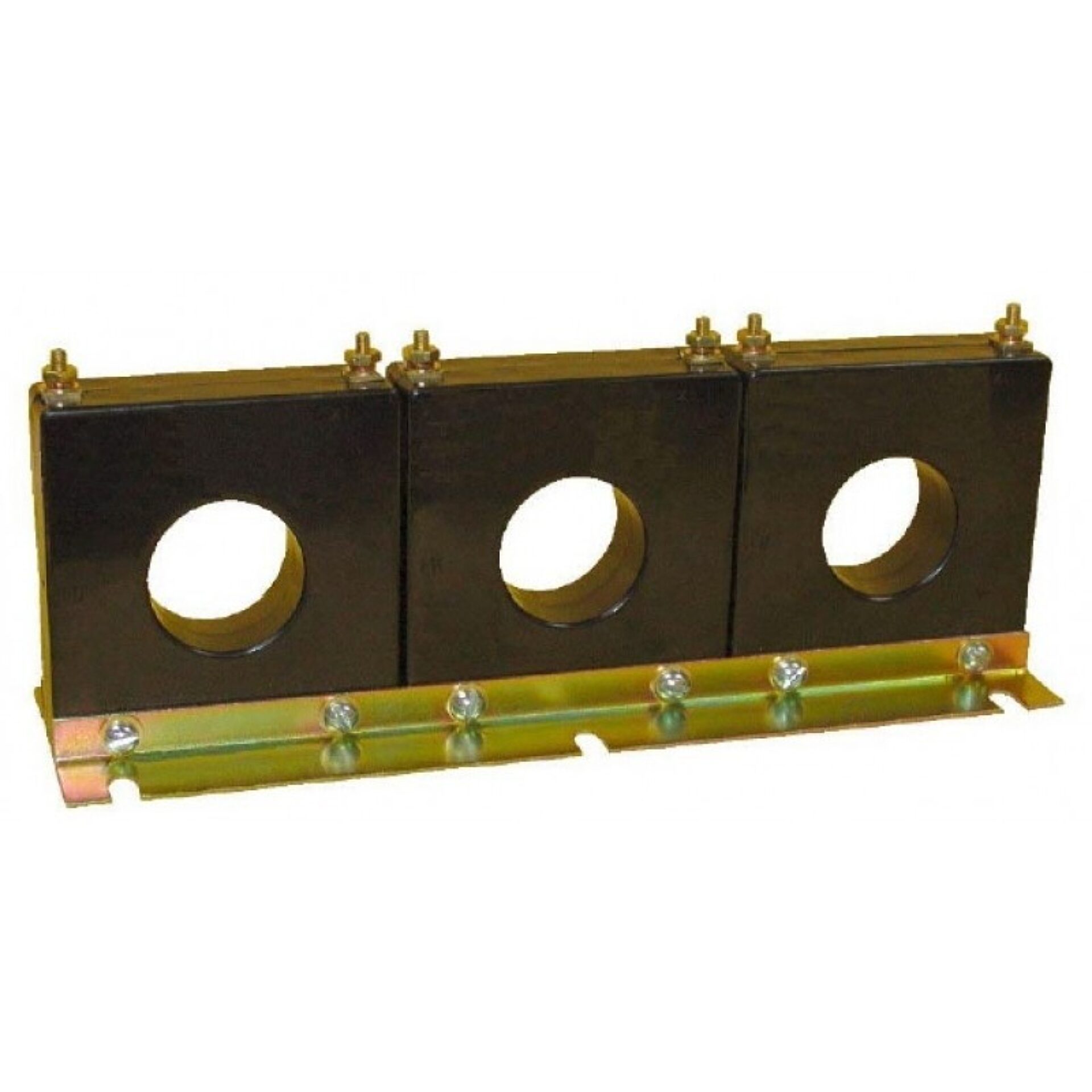

Model 3P4 Current Transformer
Introducing the Model 3P4 Current Transformer, a reliable and precision-engineered component designed to meet the demanding needs of electrical measurement and protection systems. and brought to you by Spectrum Industries, this current transformer exemplifies quality, durability, and accuracy, making it an essential tool for professionals in the electrical industry. Whether used in power distribution, industrial automation, or testing applications, the Model 3P4 delivers consistent performance and dependable readings.
Overview
Introducing the Model 3P4 Current Transformer, a reliable and precision-engineered component designed to meet the demanding needs of electrical measurement and protection systems. and brought to you by Spectrum Industries, this current transformer exemplifies quality, durability, and accuracy, making it an essential tool for professionals in the electrical industry. Whether used in power distribution, industrial automation, or testing applications, the Model 3P4 delivers consistent performance and dependable readings.
Built with advanced materials and meticulous craftsmanship, the Model 3P4 Current Transformer offers excellent linearity and minimal phase shift, ensuring that your measurements are both accurate and stable over time. Its robust construction provides excellent resistance to environmental factors such as temperature fluctuations and electrical surges, making it suitable for a wide range of operational conditions. The product's compact design allows for easy installation in various settings, helping to streamline your setup process and reduce maintenance efforts.
As a product of our long-standing reputation for innovation and excellence in electrical components, the Model 3P4 Current Transformer stands out as a trusted choice for engineers and technicians seeking high-quality measurement solutions. Spectrum Industries is proud to distribute this top-tier product, ensuring that you receive a component that not only meets but exceeds industry standards. With the Model 3P4, you can be confident in the accuracy, reliability, and longevity of your electrical measurement systems.
Request a Quote for Model 3P4 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 6.75 lbs
- Application
- Metering
- Insulation Level
- 600 Volt, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Window Diameter
- 1.56 in
- Secondary Leads
- Various configurations available
Specification Table
| Primary A | Secondary A | Ratio (display) | Secondary Resistance |
|---|---|---|---|
| 50 | 5 | 50:5 | 0.011 |
| 100 | 5 | 100:5 | 0.023 |
| 150 | 5 | 150:5 | 0.034 |
| 200 | 5 | 200:5 | 0.045 |
| 250 | 5 | 250:5 | 0.057 |
| 300 | 5 | 300:5 | 0.068 |
| 400 | 5 | 400:5 | 0.091 |
| 500 | 5 | 500:5 | 0.113 |
| 600 | 5 | 600:5 | 0.136 |
| 750 | 5 | 750:5 | 0.17 |
| 800 | 5 | 800:5 | 0.181 |
| 1000 | 5 | 1000:5 | 0.226 |
