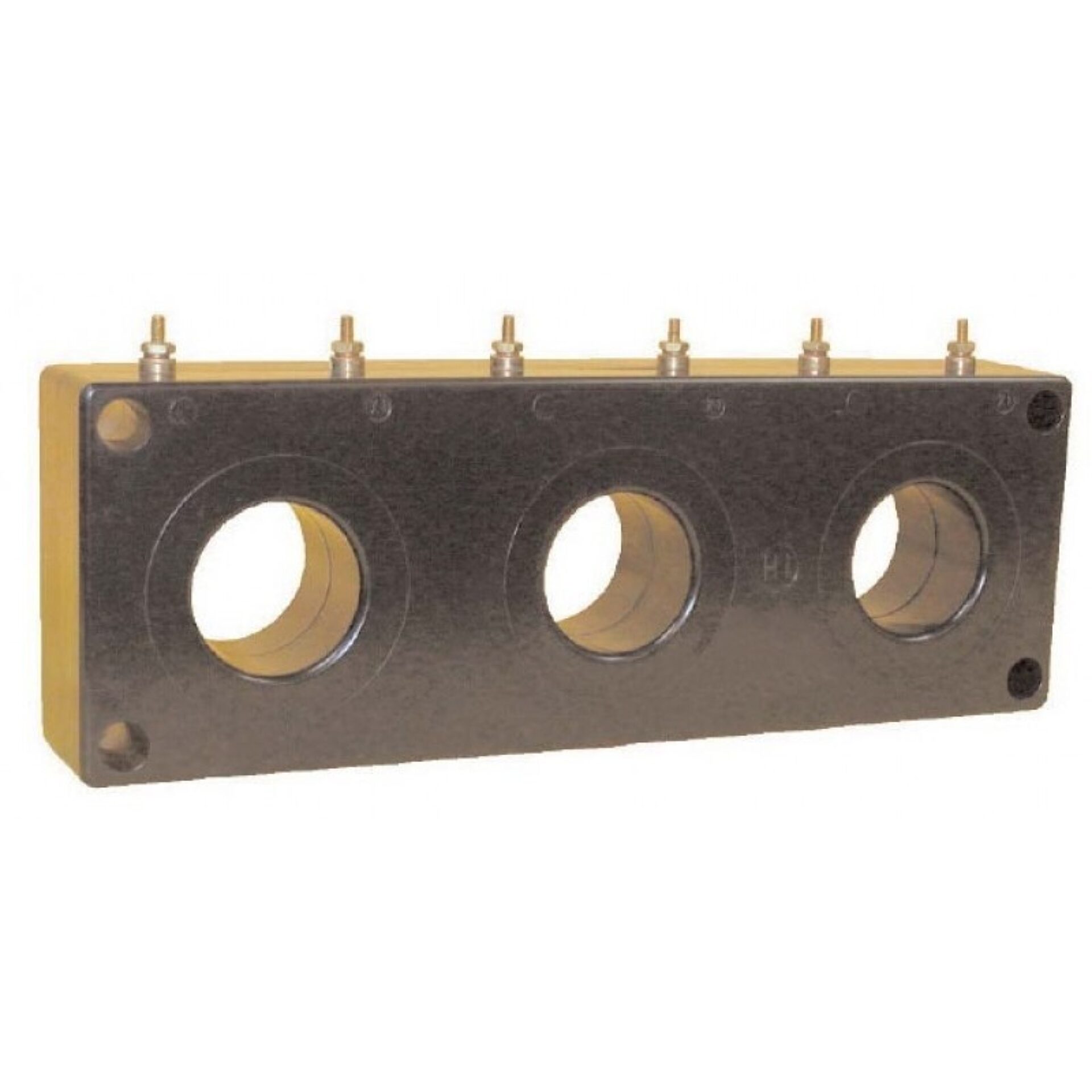

Model 3P41 Current Transformer
Introducing the Model 3P41 Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and power monitoring applications. and distributed by Spectrum Industries, this current transformer exemplifies precision engineering and durability, making it an essential component for professionals seeking accurate current measurement in various electrical systems.
Overview
Introducing the Model 3P41 Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and power monitoring applications. and distributed by Spectrum Industries, this current transformer exemplifies precision engineering and durability, making it an essential component for professionals seeking accurate current measurement in various electrical systems.
The Model 3P41 is engineered to deliver consistent and precise readings, ensuring optimal performance in both industrial and commercial environments. Its robust construction and advanced design allow it to withstand harsh conditions while maintaining accuracy over time. Whether used for energy management, system protection, or load analysis, this current transformer provides dependable data that helps optimize electrical system efficiency and safety.
a globally recognized leader in electrical equipment and technology, the Model 3P41 benefits from decades of innovation and expertise. Spectrum Industries, a trusted distributor, ensures that this product is readily available to meet your project requirements. With its user-friendly installation and maintenance features, the Model 3P41 Current Transformer is an excellent choice for engineers and technicians seeking reliable performance and long-term value.
In summary, the -produced Model 3P41 Current Transformer from Spectrum Industries offers a combination of precision, durability, and trusted brand quality, making it a smart investment for anyone looking to enhance their electrical measurement capabilities.
Request a Quote for Model 3P41 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 12 lbs
- Application
- Metering, Protection, Motor Control
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Window Diameter
- 2.03 in
- Mounting Orientation
- Horizontal
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.03 |
| 150 | 5 | 150:5 | — | 0.045 |
| 200 | 5 | 200:5 | — | 0.075 |
| 250 | 5 | 250:5 | C10 | 0.094 |
| 300 | 5 | 300:5 | C10 | 0.09 |
| 400 | 5 | 400:5 | C10 | 0.151 |
| 500 | 5 | 500:5 | C20 | 0.149 |
| 600 | 5 | 600:5 | C20 | 0.179 |
