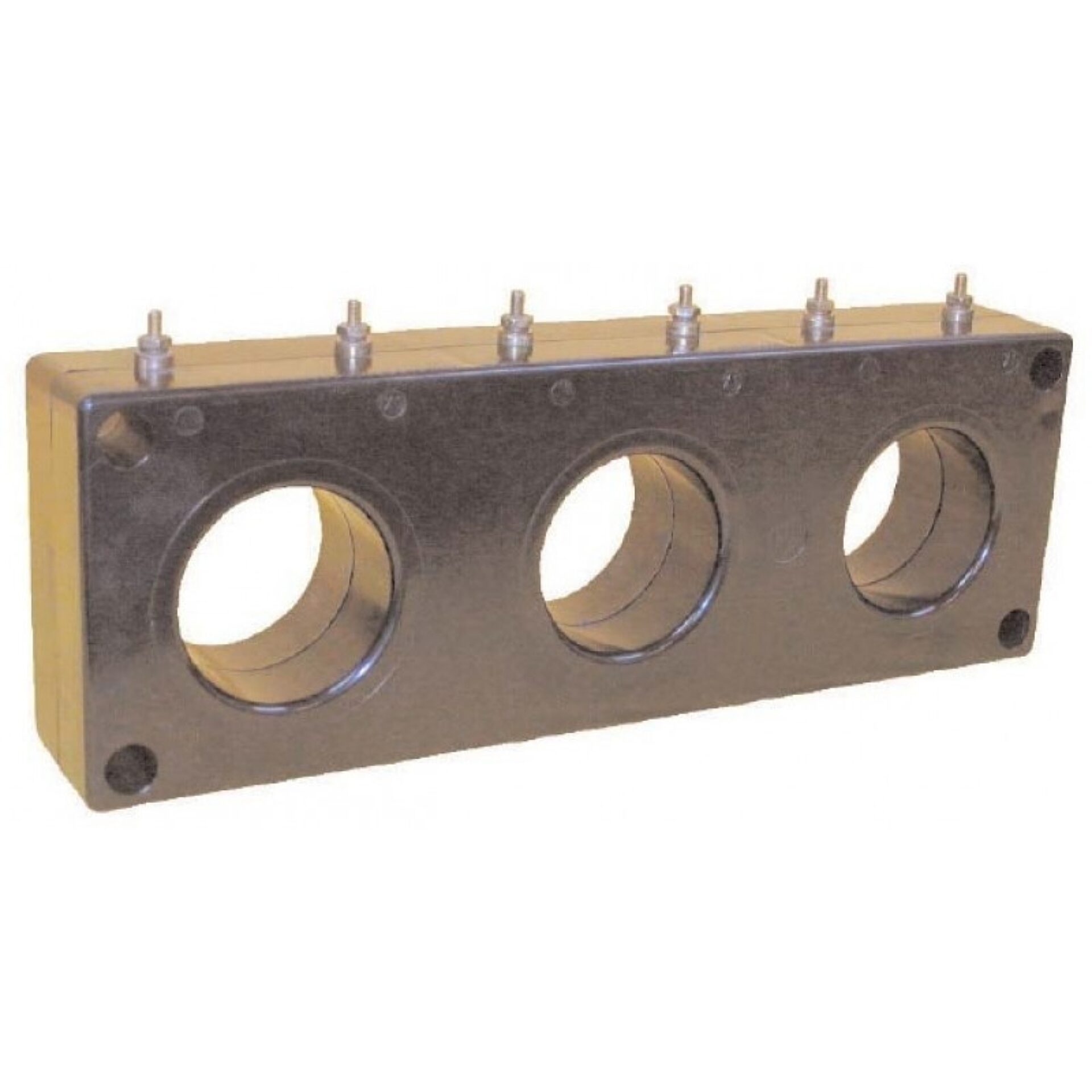

Model 3P42 Current Transformer
Introducing the Model 3P42 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Built with durability and efficiency in mind, the Model 3P42 ensures consistent operation even in demanding environments, making it a trusted choice for professionals across various industries.
Overview
Introducing the Model 3P42 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Built with durability and efficiency in mind, the Model 3P42 ensures consistent operation even in demanding environments, making it a trusted choice for professionals across various industries.
a global leader in electrical and electronic manufacturing, this current transformer benefits from advanced engineering and rigorous quality standards. Its robust construction provides excellent electrical insulation and mechanical strength, ensuring long-term stability and safety. The Model 3P42 is suitable for a wide range of applications, including power distribution, industrial automation, and energy management systems, where accurate current measurement is critical for system performance and safety.
Spectrum Industries takes pride in offering products that meet the highest standards of quality and reliability, and the Model 3P42 Current Transformer is no exception. Whether you are upgrading existing systems or designing new installations, this transformer provides the precision and dependability you need to ensure optimal operation. Trust the combination of ’s innovative technology and Spectrum Industries’ commitment to excellence to deliver a product that supports your electrical infrastructure with confidence.
Request a Quote for Model 3P42 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 11.5 lbs
- Application
- Metering, Protection, Motor Control
- Insulation Voltage
- 600 V
- Window Diameter
- 2.50 in
- Terminals
- No. 8-32 brass studs
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.035 |
| 150 | 5 | 150:5 | — | 0.053 |
| 200 | 5 | 200:5 | — | 0.071 |
| 250 | 5 | 250:5 | — | 0.088 |
| 300 | 5 | 300:5 | — | 0.106 |
| 400 | 5 | 400:5 | C10 | 0.112 |
| 500 | 5 | 500:5 | C10 | 0.14 |
| 600 | 5 | 600:5 | C10 | 0.168 |
| 750 | 5 | 750:5 | C20 | 0.265 |
| 800 | 5 | 800:5 | C20 | 0.283 |
| 1000 | 5 | 1000:5 | C10 | 0.308 |
| 1200 | 5 | 1200:5 | C10 | 0.365 |
| 1500 | 5 | 1500:5 | C10 | 0.462 |
| 1600 | 5 | 1600:5 | C10 | 0.492 |
