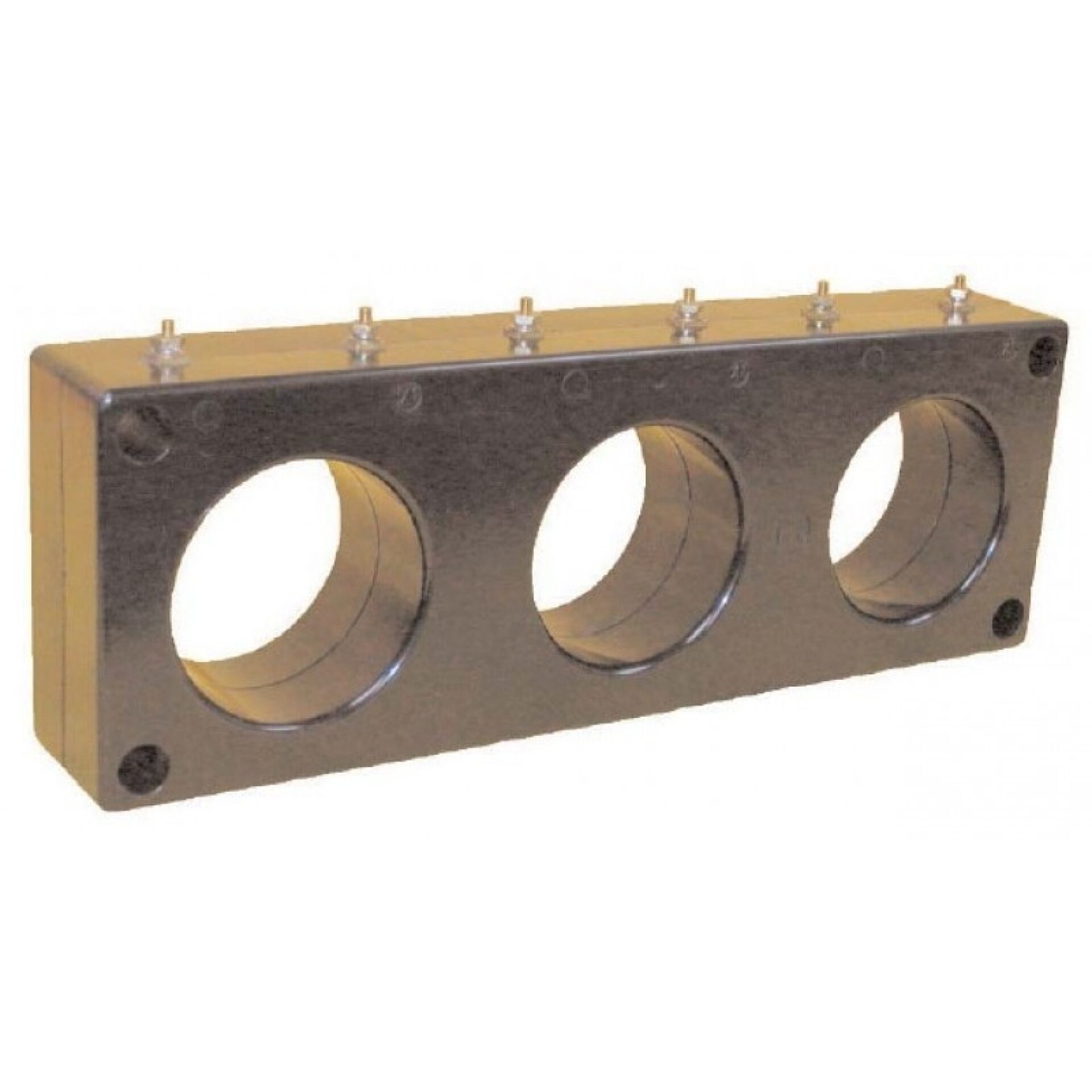

Model 3P43 Current Transformer
APPLICATION: 3 phase relay, metering and motor overload protection.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Flexible leads UL 1015, 105oC.,CSA approved, No. 16 AWG , 24” long are available.
Window Diameter 3.00”
Approximate weight 8.5 lbs.
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
