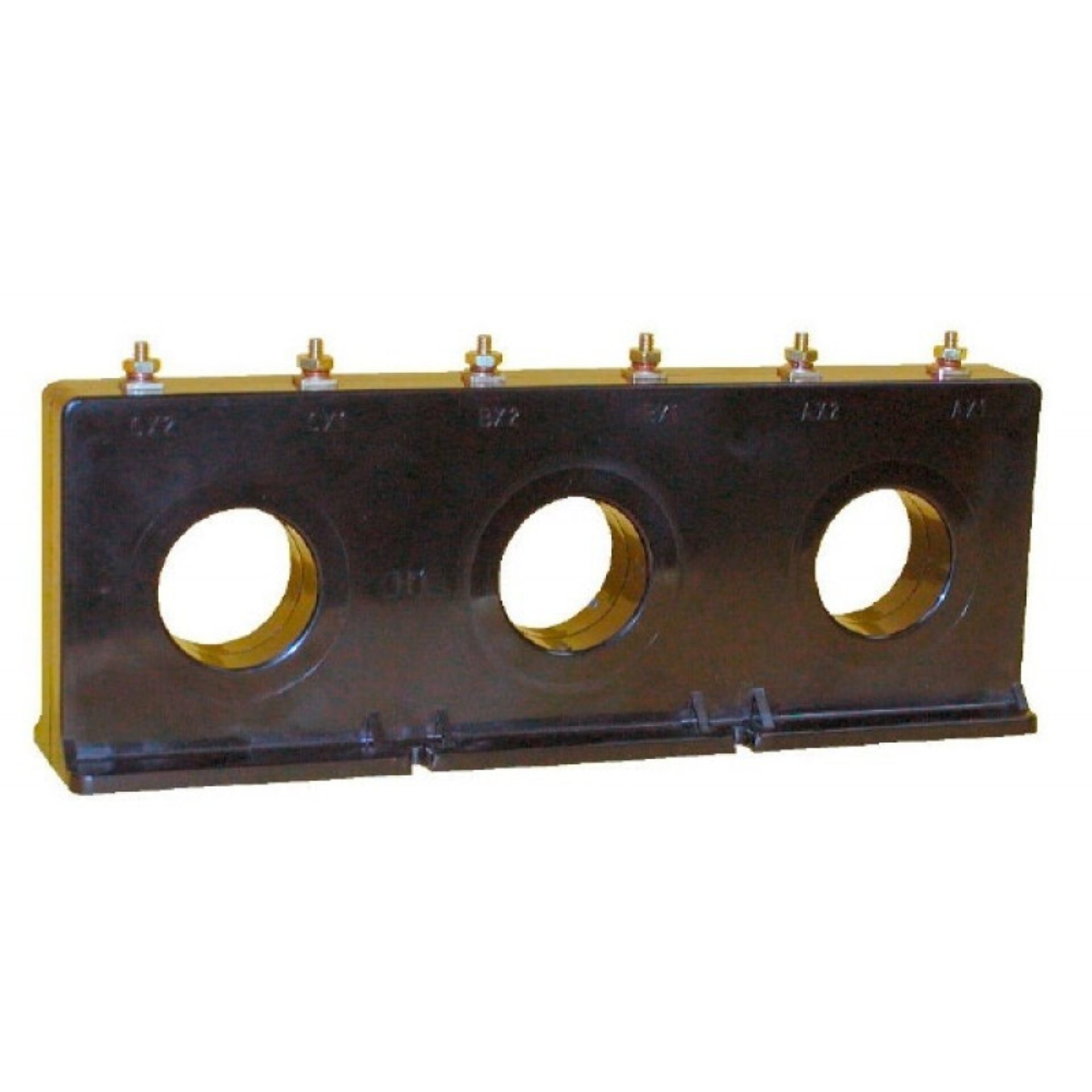

Model 3P5 Current Transformer
Introducing the Model 3P5 Current Transformer, a highly reliable and precise solution for electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is designed to deliver accurate current readings across a wide range of industrial and commercial settings. Its robust construction and innovative design ensure consistent performance, making it an essential component for electrical systems that demand precision and durability.
Overview
Introducing the Model 3P5 Current Transformer, a highly reliable and precise solution for electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is designed to deliver accurate current readings across a wide range of industrial and commercial settings. Its robust construction and innovative design ensure consistent performance, making it an essential component for electrical systems that demand precision and durability.
The Model 3P5 Current Transformer is engineered to meet the rigorous standards of modern electrical infrastructure. It provides excellent linearity and minimal phase shift, which are critical for accurate power measurement and system protection. Whether used in energy management, power distribution, or automation systems, this transformer offers dependable operation and long-lasting performance. Its compact size and easy installation make it suitable for various environments, from control panels to heavy-duty industrial equipment.
a global leader in electrical and electronic manufacturing, this current transformer benefits from decades of expertise and technological innovation. Spectrum Industries ensures that every unit undergoes strict quality control processes to guarantee reliability and customer satisfaction. With the Model 3P5 Current Transformer, you can trust that your electrical measurement needs are met with precision, efficiency, and durability, supporting the safe and efficient operation of your electrical systems.
Request a Quote for Model 3P5 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3 lbs
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Insulation Voltage Rating
- 600 V
- Window Diameter
- 1.56 in
- Terminals
- Brass studs No. 8-32
Specification Table
| Primary A | Secondary A | Ratio (display) | Secondary Resistance |
|---|---|---|---|
| 50 | 5 | 50:5 | 0.009 |
| 75 | 5 | 75:5 | 0.01 |
| 100 | 5 | 100:5 | 0.012 |
| 150 | 5 | 150:5 | 0.019 |
| 200 | 5 | 200:5 | 0.024 |
| 250 | 5 | 250:5 | 0.033 |
| 300 | 5 | 300:5 | 0.04 |
| 400 | 5 | 400:5 | 0.091 |
| 500 | 5 | 500:5 | 0.105 |
| 600 | 5 | 600:5 | 0.158 |
| 750 | 5 | 750:5 | 0.147 |
| 800 | 5 | 800:5 | 0.156 |
| 1000 | 5 | 1000:5 | 0.196 |
| 1200 | 5 | 1200:5 | 0.291 |
