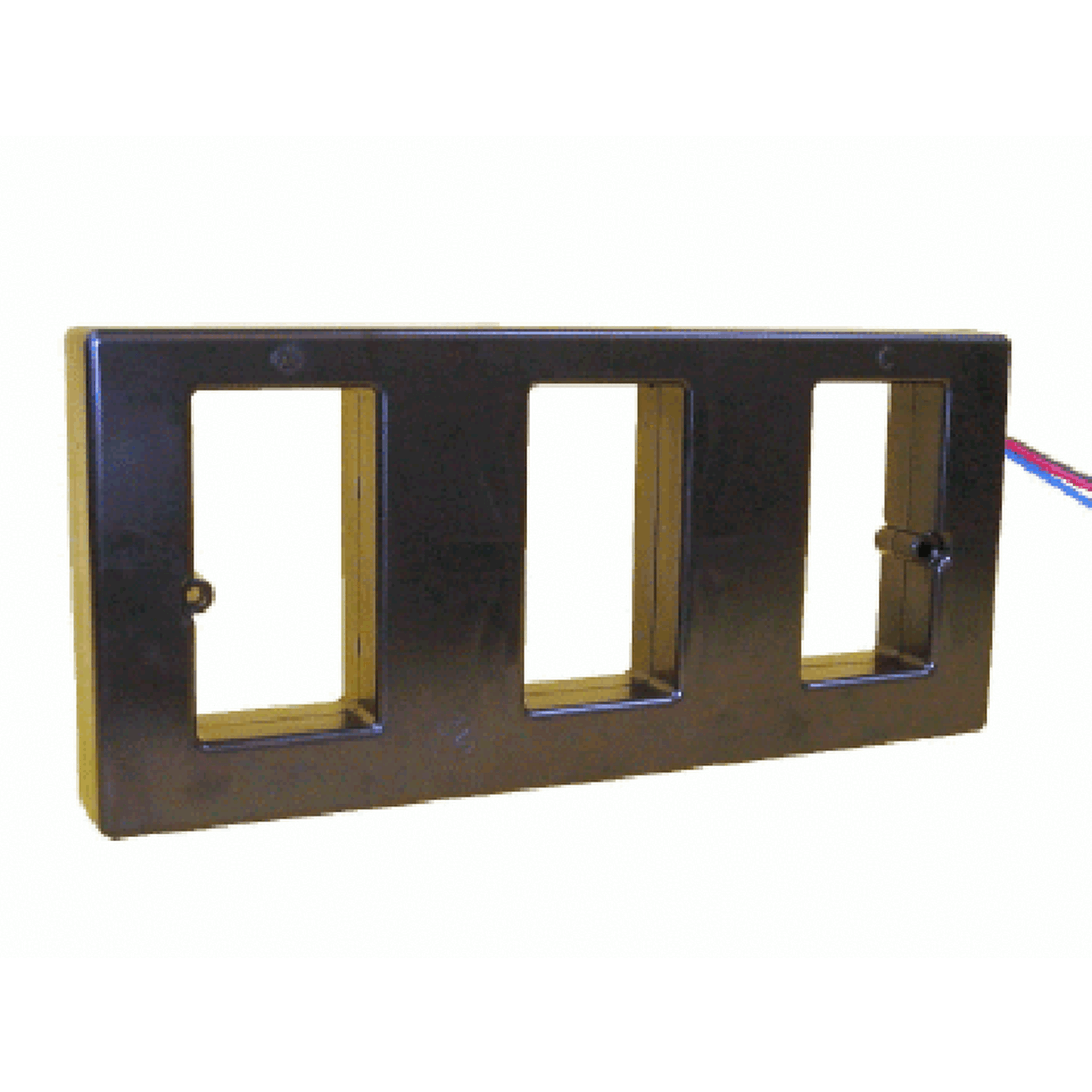

Model 3P665 Current Transformer
Introducing the Model 3P665 Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer is engineered to deliver precise and reliable performance in various industrial and commercial settings. Whether for power distribution, energy management, or protective relays, the 3P665 offers accurate current transformation essential for effective system operation.
Overview
Introducing the Model 3P665 Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer is engineered to deliver precise and reliable performance in various industrial and commercial settings. Whether for power distribution, energy management, or protective relays, the 3P665 offers accurate current transformation essential for effective system operation.
Built with durability and accuracy in mind, the Model 3P665 features robust construction that ensures long-lasting performance even in challenging environments. Its design emphasizes safety and ease of installation, making it a versatile choice for technicians and engineers alike. The transformer’s high accuracy ratings help facilitate precise measurement, which is critical for maintaining system efficiency and diagnosing electrical issues promptly.
a trusted leader in electrical equipment manufacturing, this current transformer benefits from decades of innovation and quality assurance. Spectrum Industries proudly offers this product, ensuring that customers receive a dependable component that integrates seamlessly into existing electrical systems. Whether used for metering, protection, or control, the Model 3P665 current transformer stands out as a reliable, cost-effective solution tailored to meet the rigorous demands of modern electrical infrastructure.
Request a Quote for Model 3P665 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 7.5 lbs
- Application
- Metering
- Insulation Voltage Rating
- 600 Volts
- Window Size
- 2.63" x 4.88"
- Enclosure Material
- Thermoplastic shell
- Lead Wire Configuration
- Four 12 gauge wires, 24" long, exit right side (H1 side)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 1600 | 5 | 1600:5 | 0.3B0.2 | 0.231 |
| 2000 | 5 | 2000:5 | 0.3B0.5 | 0.289 |
| 2400 | 5 | 2400:5 | 0.3B0.9 | 0.431 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 0.449 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 0.539 |
| 3200 | 5 | 3200:5 | 0.3B1.8 | 0.574 |
| 3500 | 5 | 3500:5 | 0.3B1.8 | 0.712 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 0.813 |
