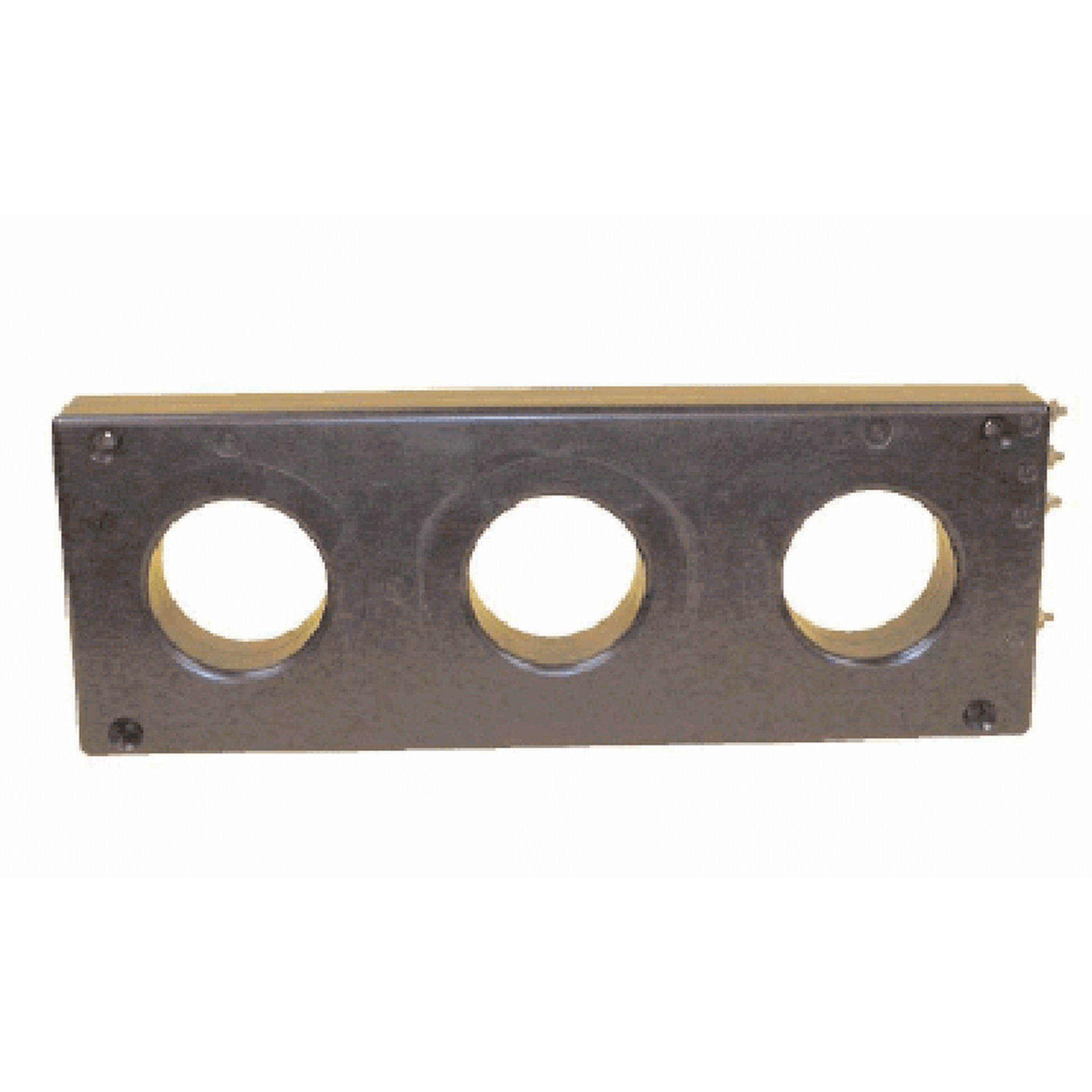

Model 3P667 Current Transformer
Introducing the Model 3P667 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to provide precise current measurement for a variety of industrial and commercial applications, this current transformer ensures reliable performance and accurate data collection in demanding environments.
Overview
Introducing the Model 3P667 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to provide precise current measurement for a variety of industrial and commercial applications, this current transformer ensures reliable performance and accurate data collection in demanding environments.
a global leader in electrical and electronic solutions, the Model 3P667 embodies cutting-edge technology and rigorous quality standards. Its robust construction and advanced design enable it to handle high current loads while maintaining excellent accuracy and stability over time. Whether used in power distribution systems, control panels, or monitoring equipment, this current transformer is built to deliver consistent performance and longevity.
Spectrum Industries takes pride in offering this premium product to meet the needs of engineers, technicians, and industry professionals. The Model 3P667 features easy installation, durable materials, and compliance with industry standards, making it a dependable choice for your current measurement requirements. With its reliable operation, you can ensure the safety and efficiency of your electrical systems while maintaining precise control and monitoring capabilities.
Choose the Model 3P667 Current Transformer by, supplied through Spectrum Industries, for a trusted solution that combines innovation, durability, and accuracy in every application.
Request a Quote for Model 3P667 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 15 lbs
- Application
- Metering, Protection, Motor Control
- Window Diameter
- 2.75 in
- Insulation Voltage Rating
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flat washer and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24 in long (available)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 0.013 |
| 75 | 5 | 75:5 | — | 0.019 |
| 100 | 5 | 100:5 | 1.2B0.1 | 0.028 |
| 150 | 5 | 150:5 | 0.6B0.1 | 0.041 |
| 200 | 5 | 200:5 | 0.3B0.1 | 0.055 |
| 300 | 5 | 300:5 | 0.3B0.2 | 0.083 |
| 400 | 5 | 400:5 | 0.3B0.5 | 0.111 |
| 500 | 5 | 500:5 | 0.3B0.5 | 0.138 |
| 600 | 5 | 600:5 | 0.3B0.9 | 0.166 |
