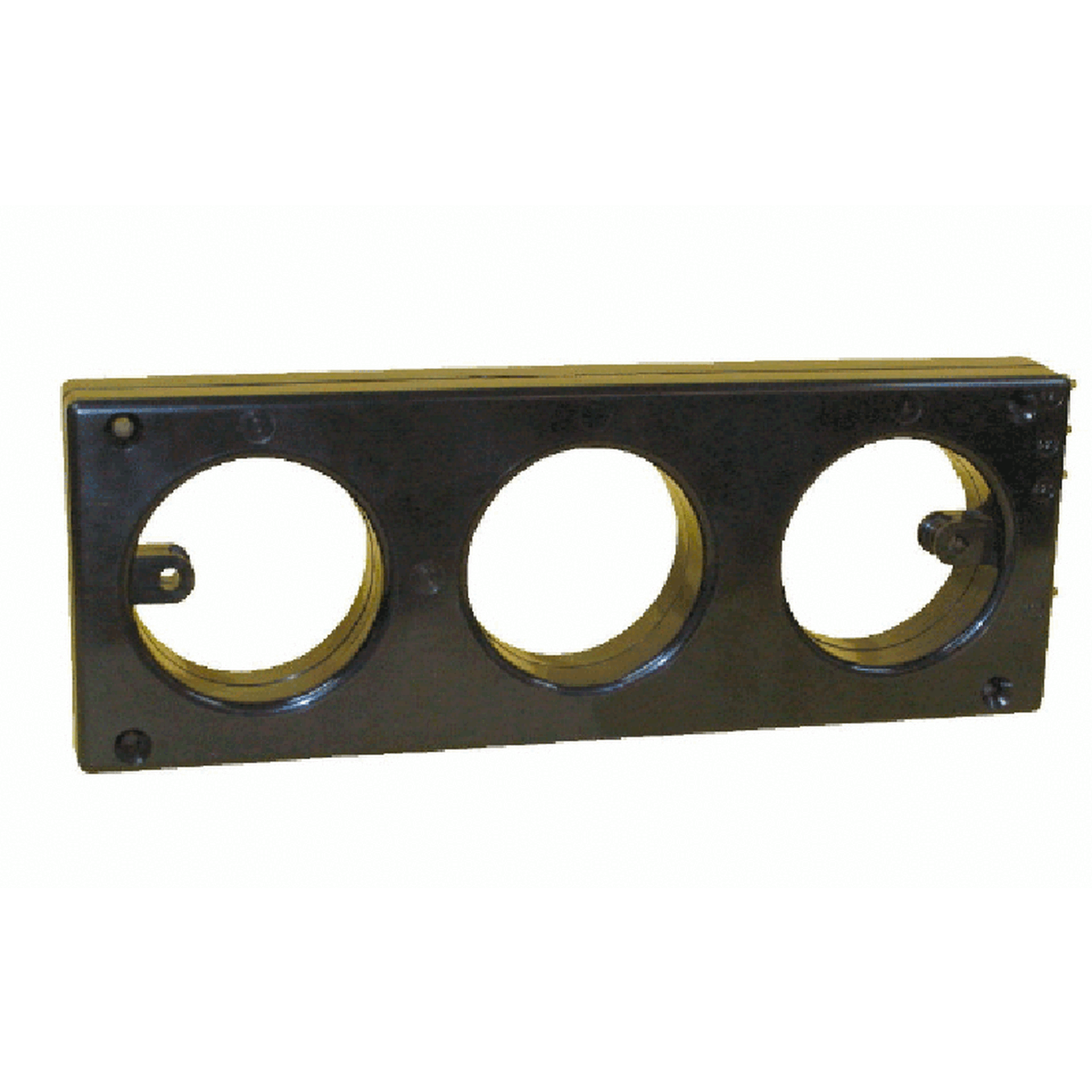

Model 3P668 Current Transformer
APPLICATION: 3 phase metering and motor overload protection.
FREQUENCY: 50-400 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher and regular nut.
Leads (4) are 12 gauge, 24" long.
Approximate weight 7.5 lbs.
Window Diameter 3.66”
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
