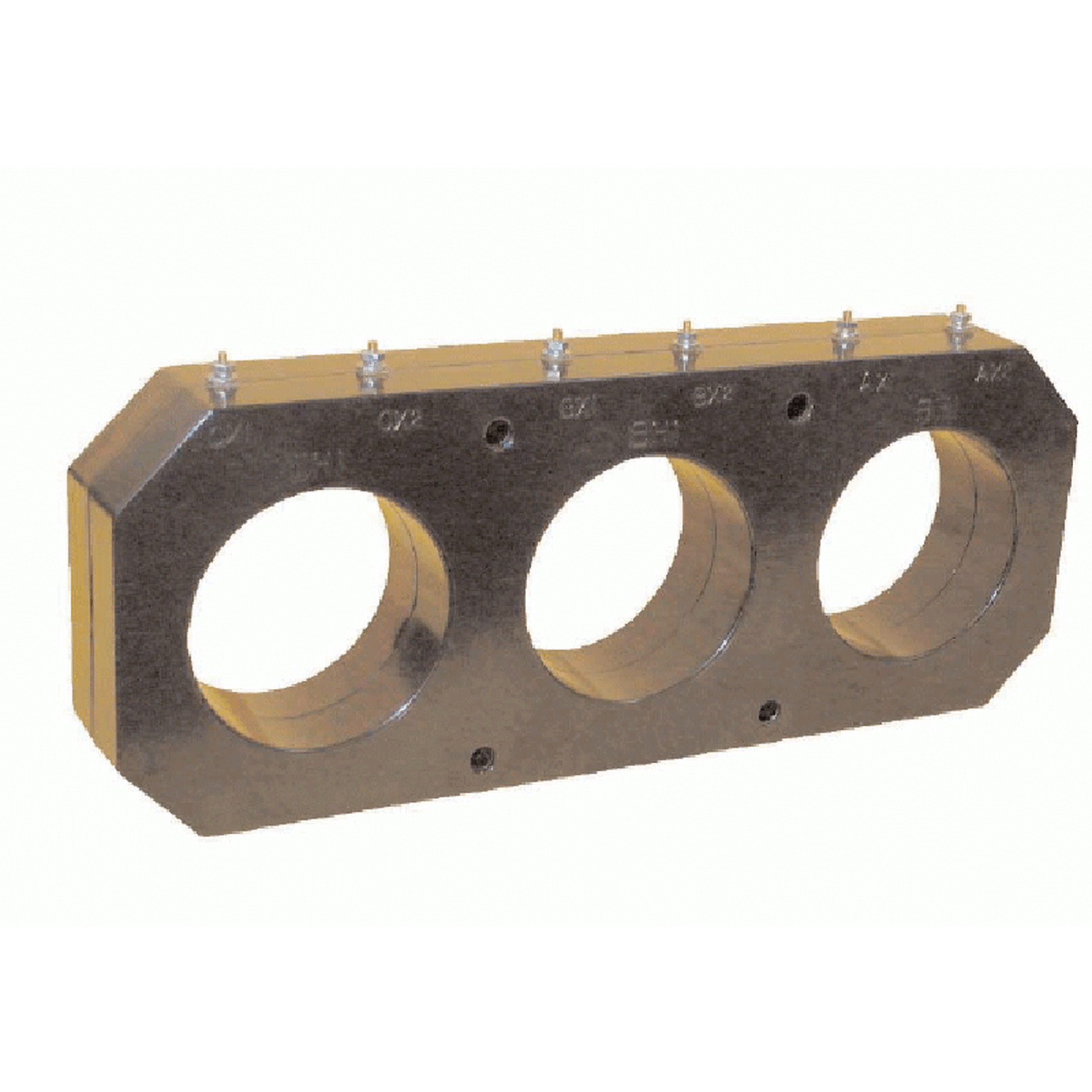

Model 3P670 Current Transformer
Introducing the Model 3P670 Current Transformer, a high-quality solution, distributed by Spectrum Industries. Designed to deliver precise current measurement capabilities, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether utilized in industrial, commercial, or utility applications, the 3P670 ensures reliable performance and durability under demanding conditions.
Overview
Introducing the Model 3P670 Current Transformer, a high-quality solution, distributed by Spectrum Industries. Designed to deliver precise current measurement capabilities, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether utilized in industrial, commercial, or utility applications, the 3P670 ensures reliable performance and durability under demanding conditions.
a global leader in electrical equipment manufacturing, this current transformer exemplifies advanced engineering and rigorous quality standards. It features a robust construction that provides excellent accuracy and stability over a wide range of operating environments. The 3P670 is designed to seamlessly integrate into existing systems, offering easy installation and maintenance, making it an ideal choice for professionals seeking dependable measurement solutions.
Spectrum Industries, a trusted distributor of electrical components, ensures that the Model 3P670 is readily available to meet your project needs. With its proven performance and ’s reputation for innovation, this current transformer is a valuable addition to any electrical infrastructure. Whether for new installations or system upgrades, the 3P670 delivers the precision and reliability necessary to optimize electrical system performance and safety.
Request a Quote for Model 3P670 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 8 lbs
- Application
- Metering, Protection, Motor Control
- Insulation Voltage Rating
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24 in long (available)
- Window Diameter
- 3.88 in
- Revenue Metering Approval
- Approved for revenue metering by Industry Canada No. AE-0636
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.02 |
| 150 | 5 | 150:5 | 1.2B0.1 | 0.03 |
| 200 | 5 | 200:5 | 1.2B0.2 | 0.04 |
| 250 | 5 | 250:5 | 0.6B0.1 | 0.05 |
| 300 | 5 | 300:5 | 0.6B0.2 | 0.061 |
| 400 | 5 | 400:5 | 0.6B0.2 | 0.081 |
| 500 | 5 | 500:5 | 0.3B0.2 | 0.101 |
| 600 | 5 | 600:5 | 0.3B0.2 | 0.121 |
| 750 | 5 | 750:5 | 0.3B0.2 | 0.151 |
| 800 | 5 | 800:5 | 0.3B0.5 | 0.174 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 0.202 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 0.242 |
| 1500 | 5 | 1500:5 | 0.3B0.5 | 0.211 |
| 1600 | 5 | 1600:5 | 0.3B0.5 | 0.225 |
| 2000 | 5 | 2000:5 | 0.3B0.9 | 0.281 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 0.352 |
