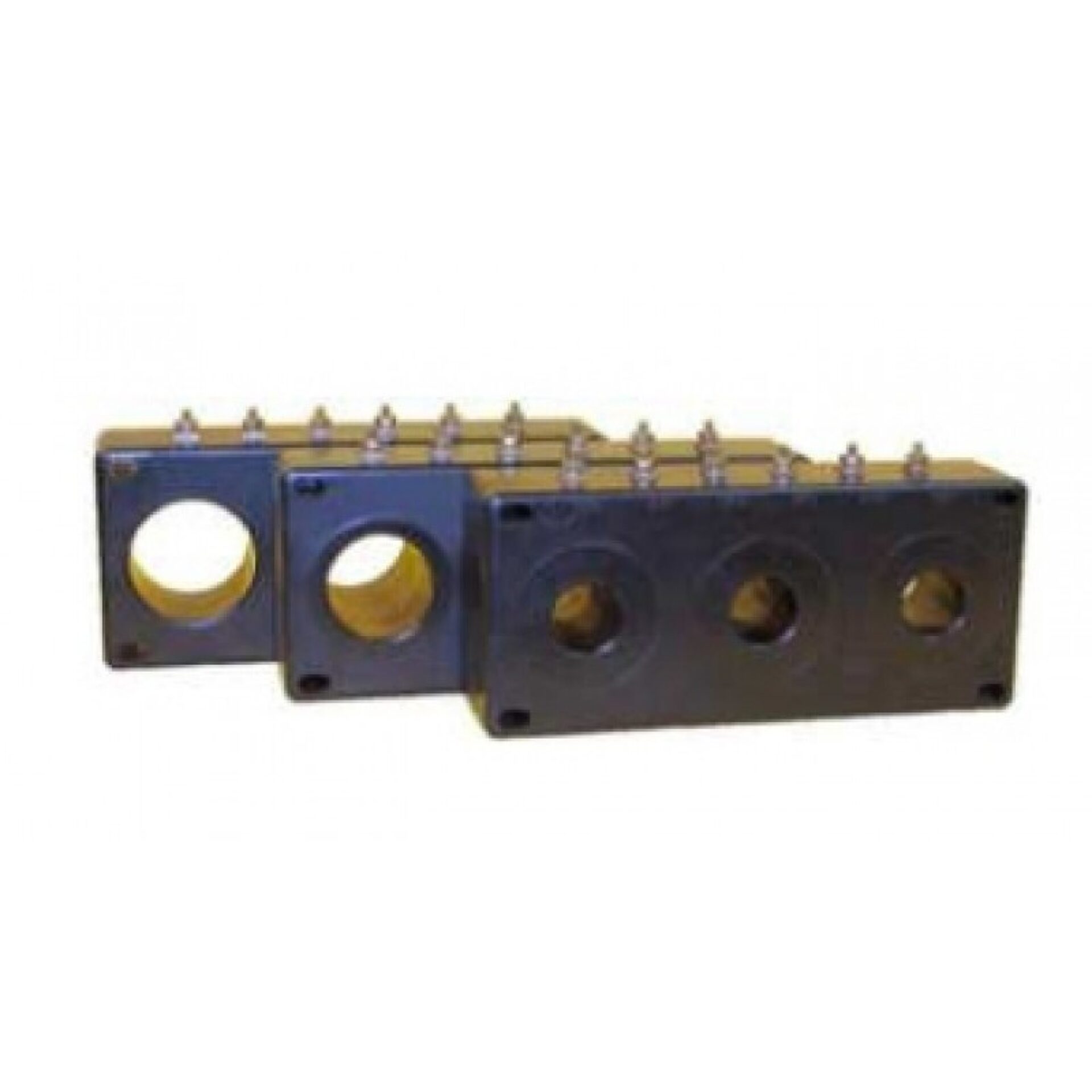

Model 3P80 Current Transformer
Introducing the Model 3P80 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to provide precise current measurement and protection in a variety of electrical systems, this current transformer is an essential tool for engineers, technicians, and professionals working in power distribution, industrial automation, and electrical testing.
Overview
Introducing the Model 3P80 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to provide precise current measurement and protection in a variety of electrical systems, this current transformer is an essential tool for engineers, technicians, and professionals working in power distribution, industrial automation, and electrical testing.
a globally renowned leader in electrical and electronic manufacturing, the Model 3P80 combines durability, accuracy, and reliability. Its robust construction ensures consistent performance even in demanding environments, making it suitable for both residential and industrial applications. The transformer is engineered to handle high current loads while maintaining excellent accuracy, thus enabling effective monitoring and control of electrical systems.
Spectrum Industries offers this model as part of their commitment to providing top-tier electrical components that meet rigorous standards. The Model 3P80 features user-friendly installation and maintenance, making it a versatile choice for a wide range of projects. Whether you're upgrading existing systems or designing new installations, this current transformer delivers the performance and dependability you need to ensure safety and efficiency. With ’s trusted engineering and Spectrum Industries’ dedicated support, the Model 3P80 Current Transformer stands out as a reliable solution for accurate current measurement in any electrical setup.
Request a Quote for Model 3P80 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering, Protection, Motor Control
- Window Diameter
- 1.00 in
- Rated Voltage
- 600 V
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher, and regular nut
- Lead Wire (optional)
- UL 1015, 105C, CSA approved, No. 16 AWG, 24 in flexible leads available
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.034 |
| 150 | 5 | 150:5 | 1.2B0.2 | 0.052 |
| 200 | 5 | 200:5 | 0.6B0.1 | 0.069 |
| 300 | 5 | 300:5 | 0.6B0.2 | 0.103 |
