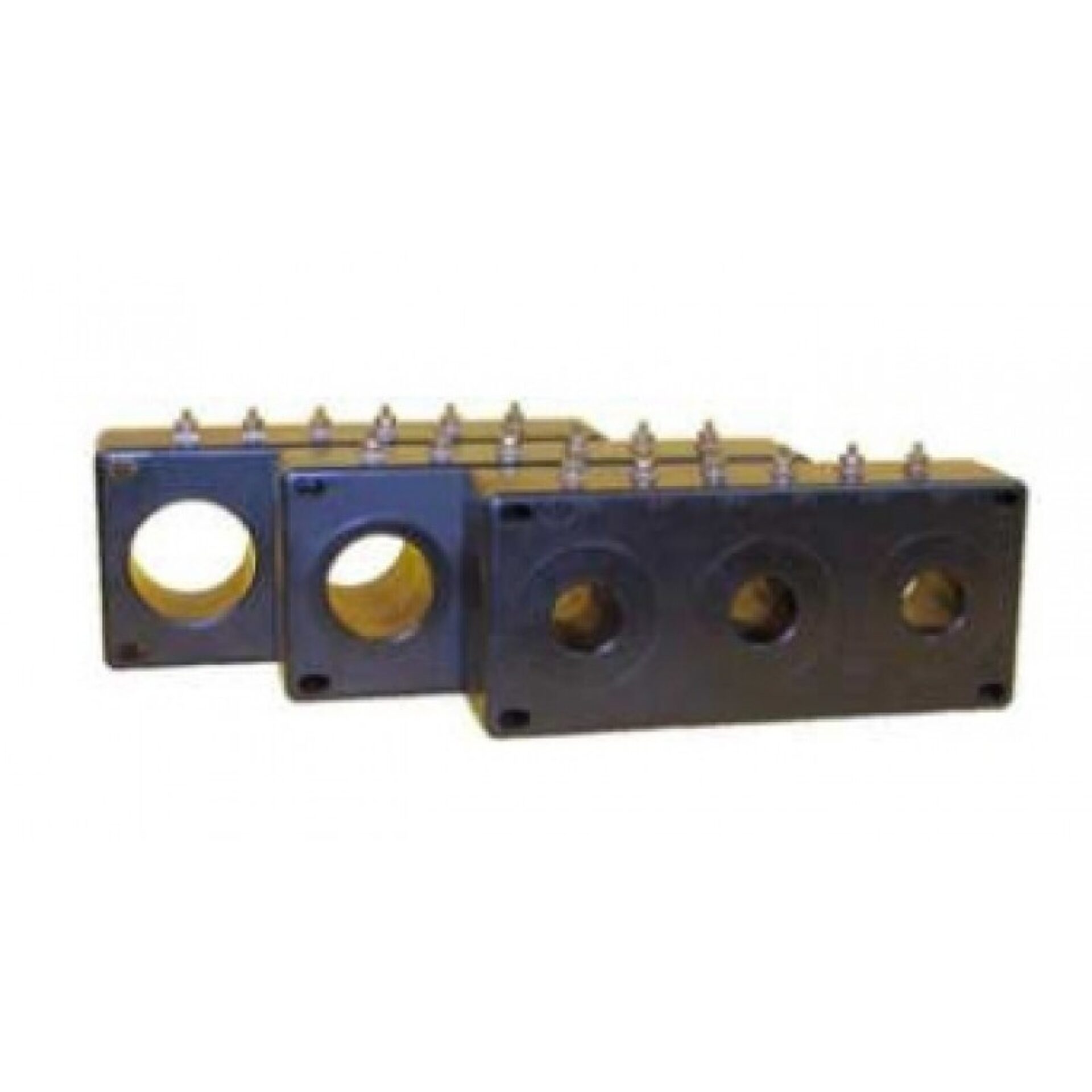

Model 3P82 Current Transformer
Introducing the Model 3P82 Current Transformer, a high-performance product, manufactured by Spectrum Industries. Designed to provide precise current measurement and reliable performance in various electrical applications, this current transformer is an essential component for ensuring the safety, efficiency, and accuracy of power systems.
Overview
Introducing the Model 3P82 Current Transformer, a high-performance product, manufactured by Spectrum Industries. Designed to provide precise current measurement and reliable performance in various electrical applications, this current transformer is an essential component for ensuring the safety, efficiency, and accuracy of power systems.
The Model 3P82 is built with durability and accuracy in mind, making it suitable for use in both industrial and commercial environments. Its robust construction allows it to withstand harsh conditions while maintaining consistent performance over time. This transformer is ideal for metering, protection, and control applications, offering seamless integration into existing electrical infrastructure. With its precise ratio and high accuracy, it ensures that electrical systems operate within their specified parameters, helping to prevent overloads and faults.
a globally recognized leader in electrical equipment and technology, the Model 3P82 Current Transformer benefits from advanced manufacturing standards and innovative design. Spectrum Industries, known for their commitment to quality and reliability, ensures that each unit meets strict quality controls and industry standards. Whether for new installations or system upgrades, this current transformer is a trusted choice for professionals seeking dependable and accurate current measurement solutions.
Request a Quote for Model 3P82 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering, Protection, Motor Control
- Standards
- UL, CSA
- Window Diameter
- 2.00"
- Rated Insulation Voltage
- 600 Volts
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24" long, available option
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 300 | 5 | 300:5 | — | 0.106 |
| 400 | 5 | 400:5 | 1.2B0.1 | 0.142 |
| 500 | 5 | 500:5 | 1.2B0.2 | 0.177 |
| 600 | 5 | 600:5 | 1.2B0.2 | 0.212 |
