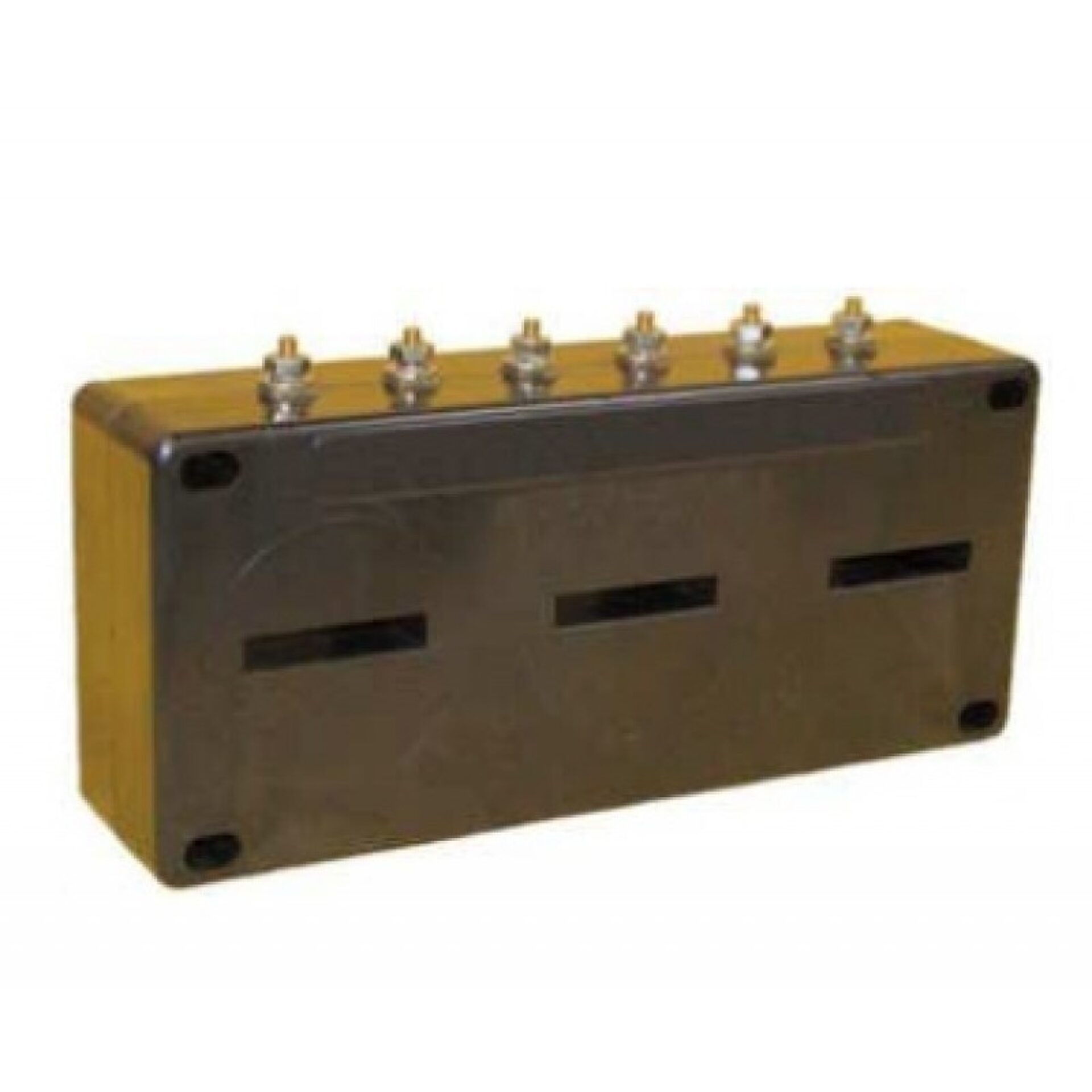

Model 3P83 Current Transformer
Introducing the Model 3P83 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise current measurement and enhance the safety and efficiency of electrical systems, this current transformer is an essential tool for professionals across various industries. Whether used in power distribution, industrial automation, or electrical testing, the Model 3P83 offers reliable performance and durability.
Overview
Introducing the Model 3P83 Current Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise current measurement and enhance the safety and efficiency of electrical systems, this current transformer is an essential tool for professionals across various industries. Whether used in power distribution, industrial automation, or electrical testing, the Model 3P83 offers reliable performance and durability.
a globally recognized leader in electrical and electronic solutions, this current transformer embodies innovation and engineering excellence. Its robust construction ensures long-term stability and accurate readings even in demanding environments. The Model 3P83 is engineered to meet rigorous industry standards, providing users with confidence in its performance and reliability.
Spectrum Industries takes pride in offering this premium product to meet the needs of engineers, technicians, and electrical contractors. Its user-friendly design simplifies installation and maintenance, making it a practical choice for both new installations and upgrades. With the Model 3P83 Current Transformer, you can ensure precise current measurement, improve system safety, and optimize electrical performance in your applications. This product exemplifies ’s commitment to quality and Spectrum Industries’ dedication to delivering dependable electrical solutions.
Request a Quote for Model 3P83 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering, Protection, Motor Control
- Standards
- ANSI/IEEE C57.13
- Insulation Voltage Rating
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Window Size
- 1.55" x 0.45", 1.55" x 0.25"
- Flexible Leads (optional)
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24" long, available
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 0.015 |
| 100 | 5 | 100:5 | — | 0.03 |
| 150 | 5 | 150:5 | 1.2B0.2 | 0.045 |
| 200 | 5 | 200:5 | 0.6B0.1 | 0.061 |
| 250 | 5 | 250:5 | 0.6B0.2 | 0.076 |
| 300 | 5 | 300:5 | 0.3B0.1 | 0.091 |
| 400 | 5 | 400:5 | 0.3B0.1 | 0.122 |
| 500 | 5 | 500:5 | 0.3B0.5 | 0.153 |
| 600 | 5 | 600:5 | 0.3B0.2 | 0.161 |
| 800 | 5 | 800:5 | 0.3B0.9 | 0.215 |
