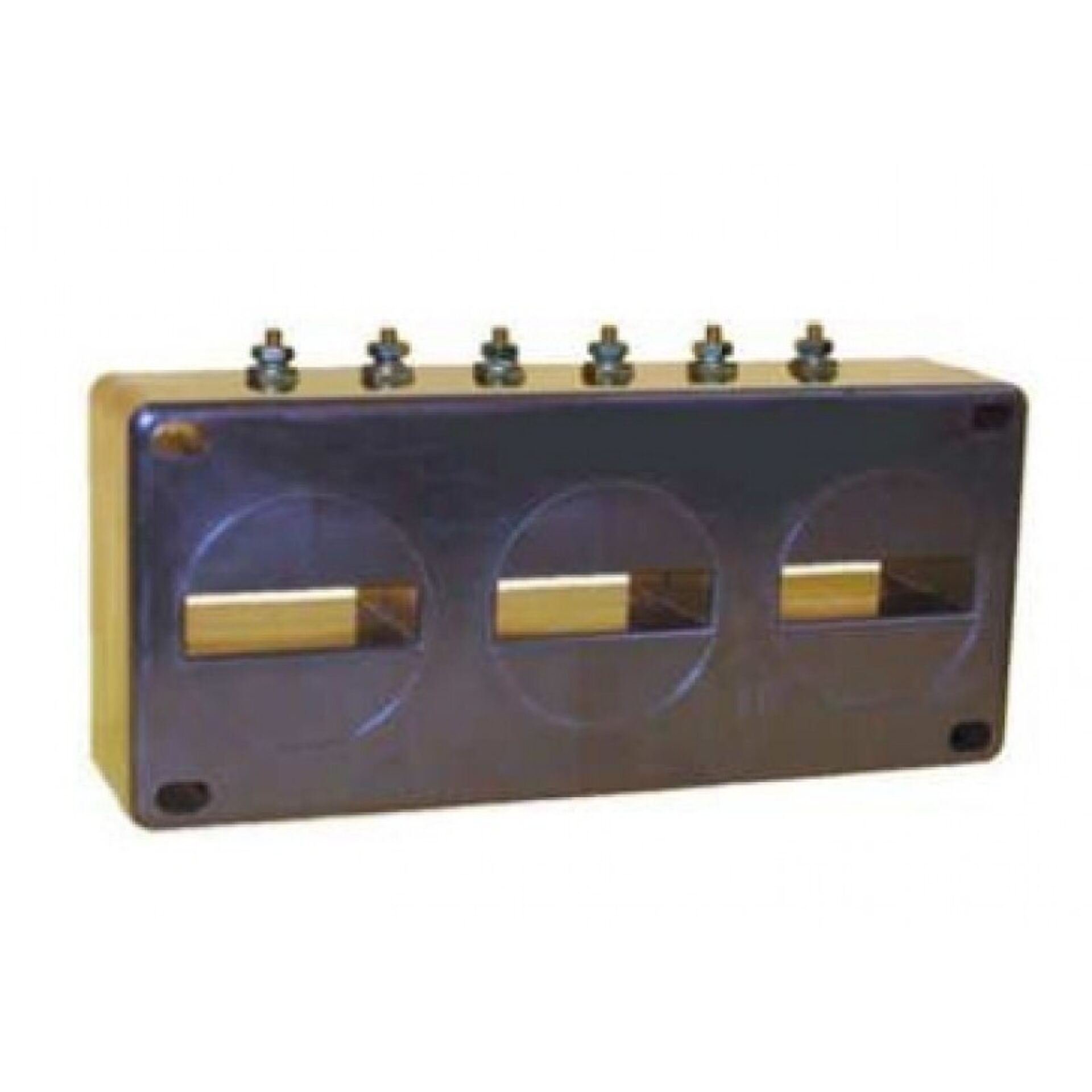

Model 3P84 Current Transformer
Introducing the Model 3P84 Current Transformer, a high-quality product, designed to meet the demanding needs of electrical measurement and protection systems. Manufactured by Spectrum Industries, this current transformer exemplifies precision engineering and reliability, ensuring accurate current measurement across various applications. Whether used in industrial, commercial, or utility settings, the Model 3P84 provides consistent performance, making it an essential component for engineers and technicians alike.
Overview
Introducing the Model 3P84 Current Transformer, a high-quality product, designed to meet the demanding needs of electrical measurement and protection systems. Manufactured by Spectrum Industries, this current transformer exemplifies precision engineering and reliability, ensuring accurate current measurement across various applications. Whether used in industrial, commercial, or utility settings, the Model 3P84 provides consistent performance, making it an essential component for engineers and technicians alike.
The Model 3P84 is engineered to deliver accurate current readings with minimal phase shift and high linearity, which is crucial for effective system monitoring and fault detection. Its robust construction ensures durability and long-term stability even in harsh operating environments. This current transformer features a compact design that facilitates easy installation and maintenance, helping to streamline electrical system setup and reduce downtime.
and distributed through Spectrum Industries, the Model 3P84 exemplifies the integration of advanced manufacturing techniques and quality assurance standards. This ensures that each unit meets stringent performance criteria, providing users with confidence in its reliability and accuracy. Whether upgrading existing systems or designing new installations, the Model 3P84 Current Transformer is a dependable choice for precise current measurement and system protection needs.
Request a Quote for Model 3P84 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering, Protection, Motor Control
- Window size
- 2.05" x 0.50"
- Insulation level
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Optional flexible leads
- UL 1015, 105 C, CSA approved, No. 16 AWG, 24 in. long, available
- Mounting
- Can be mounted directly on bus bar (2.75 in. bus center lines) and held with roll pins inserted in bus; top holes accept an auxiliary device mounting plate (not supplied); secondary leads can be reconfigured for transformer-mounted relays on request
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.035 |
| 150 | 5 | 150:5 | 1.2B0.1 | 0.052 |
| 200 | 5 | 200:5 | 1.2B0.2 | 0.07 |
| 250 | 5 | 250:5 | 0.6B0.1 | 0.087 |
| 300 | 5 | 300:5 | 0.6B0.2 | 0.105 |
| 400 | 5 | 400:5 | 0.6B0.2 | 0.132 |
| 500 | 5 | 500:5 | 0.3B0.2 | 0.165 |
| 600 | 5 | 600:5 | 0.3B0.2 | 0.198 |
| 750 | 5 | 750:5 | 0.3B0.2 | 0.268 |
| 800 | 5 | 800:5 | 0.3B0.2 | 0.285 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 0.317 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 0.38 |
