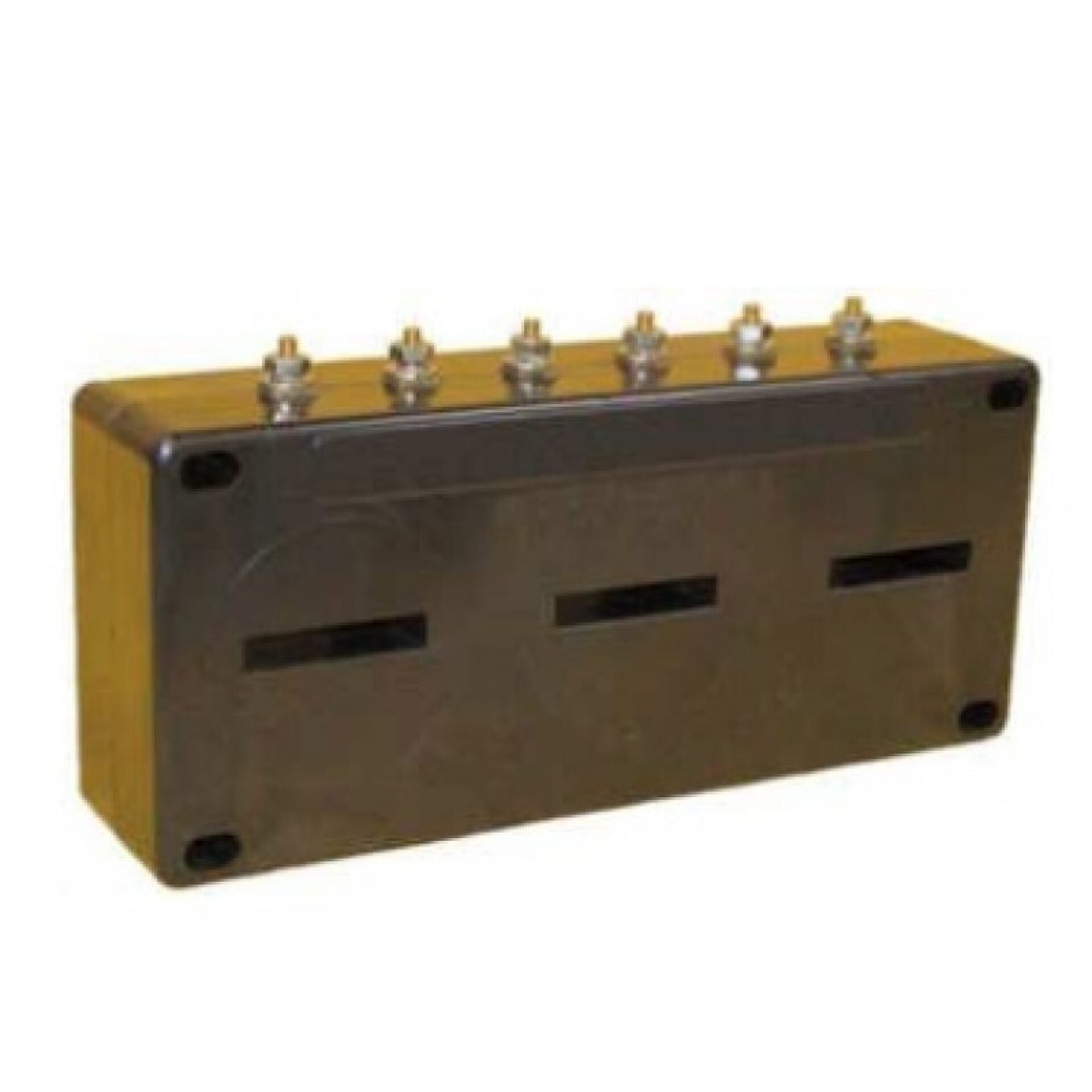

Model 3P86 Current Transformer
Introducing the Model 3P86 Current Transformer, a high-performance solution, manufactured by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 3P86 ensures consistent and dependable operation, making it an excellent choice for professionals seeking quality and durability.
Overview
Introducing the Model 3P86 Current Transformer, a high-performance solution, manufactured by Spectrum Industries. Designed to deliver precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 3P86 ensures consistent and dependable operation, making it an excellent choice for professionals seeking quality and durability.
Produced by Spectrum Industries, a trusted name in electrical instrumentation, this current transformer combines advanced engineering with robust construction to meet the demanding needs of modern electrical environments. The Model 3P86 is engineered to provide accurate current transformation over a wide range of operating conditions, facilitating effective system analysis, protection, and automation. Its compact design allows for easy installation and integration into existing systems, while its high-quality materials ensure long-term reliability and minimal maintenance.
With ’s reputation for innovation and Spectrum Industries’ commitment to excellence, the Model 3P86 Current Transformer stands out as a dependable and precise instrument for electrical measurement. Whether for new installations or upgrades to existing systems, this transformer offers the accuracy, durability, and performance needed to support safe and efficient electrical operations. Trust in the combined expertise of and Spectrum Industries to deliver a product that meets the highest standards of quality and performance.
Request a Quote for Model 3P86 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering, Protection, Motor Control
- Standards
- UL, CSA
- Window Size
- 1.55" x 0.45" or 1.55" x 0.25"
- Insulation Voltage Rating
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
- Lead Wire
- Flexible leads UL 1015, 105°C, CSA approved, No. 16 AWG, 24" long, available as option.
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 0.015 |
| 100 | 5 | 100:5 | — | 0.03 |
| 150 | 5 | 150:5 | 1.2B0.2 | 0.045 |
| 200 | 5 | 200:5 | 0.6B0.1 | 0.061 |
| 250 | 5 | 250:5 | 0.6B0.2 | 0.076 |
| 300 | 5 | 300:5 | 0.3B0.1 | 0.091 |
| 400 | 5 | 400:5 | 0.3B0.1 | 0.122 |
| 500 | 5 | 500:5 | 0.3B0.5 | 0.153 |
| 600 | 5 | 600:5 | 0.3B0.2 | 0.161 |
| 800 | 5 | 800:5 | 0.3B0.9 | 0.215 |
