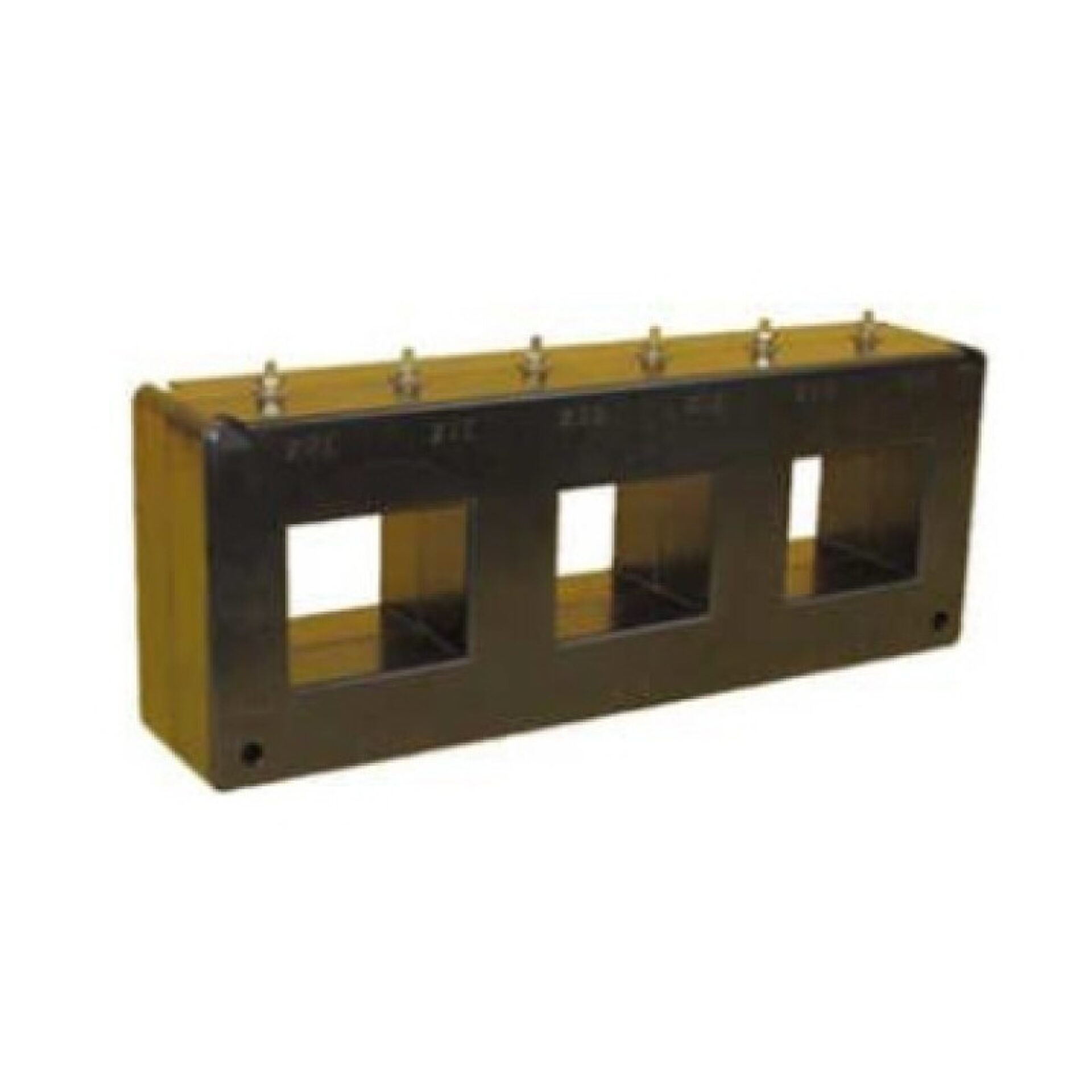

Model 3P92 Current Transformer
Introducing the Model 3P92 Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise current measurement in a variety of electrical applications, this current transformer is an essential component for professionals seeking reliable and accurate performance. Whether you're involved in power distribution, industrial automation, or electrical testing, the Model 3P92 offers the durability and precision necessary to meet demanding standards.
Overview
Introducing the Model 3P92 Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise current measurement in a variety of electrical applications, this current transformer is an essential component for professionals seeking reliable and accurate performance. Whether you're involved in power distribution, industrial automation, or electrical testing, the Model 3P92 offers the durability and precision necessary to meet demanding standards.
a global leader in electrical equipment and technology, this current transformer benefits from decades of engineering excellence and innovation. Its robust construction ensures longevity and dependable operation even in challenging environments. The Model 3P92 features a compact design that facilitates easy installation and integration into existing systems, making it a versatile choice for various electrical setups.
Spectrum Industries is proud to distribute this premium product, ensuring that customers receive a device built to exacting specifications. The Model 3P92 is designed to provide accurate current readings, which are critical for system monitoring, fault detection, and safety assurance. With its superior quality and trusted brand backing, this current transformer is an excellent investment for professionals who demand precision and reliability in their electrical measurements.
Request a Quote for Model 3P92 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 7 lbs
- Application
- Metering, Protection, Motor Control
- Standards
- UL, CSA
- Insulation Voltage Rating
- 600 Volts
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24" long available
- Window Size
- 2.56" x 2.12"
- Auxiliary Mounting
- Captive slots on top of case for attaching auxiliary device mounting plate (not supplied)
- Secondary Lead Configuration
- Can be ordered with secondary leads configured in various ways
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 0.012 |
| 150 | 5 | 150:5 | 1.2B0.5 | 0.023 |
| 200 | 5 | 200:5 | 0.6B0.5 | 0.036 |
| 250 | 5 | 250:5 | 0.6B0.5 | 0.045 |
| 300 | 5 | 300:5 | 0.6B0.5 | 0.054 |
| 400 | 5 | 400:5 | 0.3B0.5 | 0.076 |
| 500 | 5 | 500:5 | 0.3B0.5 | 0.095 |
| 600 | 5 | 600:5 | 0.3B0.5 | 0.15 |
| 750 | 5 | 750:5 | 0.3B0.9 | 0.187 |
| 800 | 5 | 800:5 | 0.3B0.9 | 0.2 |
| 1000 | 5 | 1000:5 | 0.3B0.9 | 0.177 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 0.213 |
| 1500 | 5 | 1500:5 | 0.3B1.8 | 0.266 |
| 1600 | 5 | 1600:5 | 0.3B1.8 | 0.284 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 0.441 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 0.683 |
