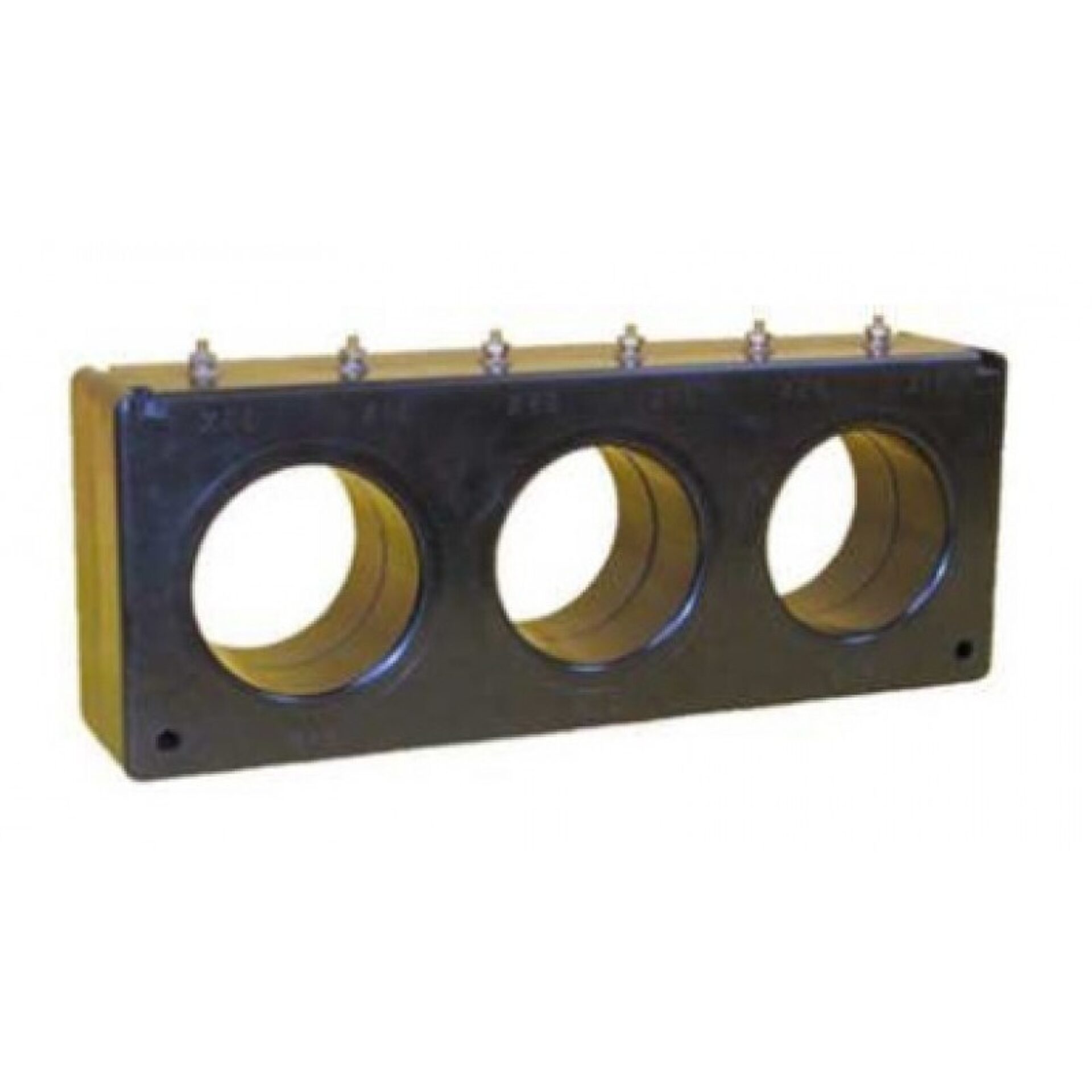

Model 3P93 Current Transformer
Introducing the Model 3P93 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed for precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 3P93 offers exceptional durability and accuracy, ensuring your electrical infrastructure operates smoothly and efficiently.
Overview
Introducing the Model 3P93 Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed for precise current measurement and reliable performance, this transformer is an essential component for electrical systems requiring accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 3P93 offers exceptional durability and accuracy, ensuring your electrical infrastructure operates smoothly and efficiently.
a global leader in electrical and electronic manufacturing, this current transformer benefits from years of industry expertise and innovative technology. Spectrum Industries, a trusted provider of electrical components and solutions, ensures that each product meets rigorous standards for quality and performance. The Model 3P93 is built to withstand demanding environments, providing stable and consistent readings over its lifespan.
This transformer features a compact design that facilitates easy installation and integration into existing systems. Its robust construction and precise specifications make it ideal for a variety of measurement and protection applications. With the Model 3P93 Current Transformer, you can be confident in the accuracy and reliability of your electrical measurements, helping to optimize system performance and ensure safety. Trust in Spectrum Industries and ’s commitment to excellence with this dependable current transformer.
Request a Quote for Model 3P93 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 7 lbs
- Application
- Metering, Protection, Motor Control
- Window Diameter
- 2.88"
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flat washer and regular nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, No. 16 AWG, 24" long (available)
- Mounting Options
- Captive slots on top of case for auxiliary device mounting plate (not supplied)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Secondary Resistance |
|---|---|---|---|---|
| 200 | 5 | 200:5 | 1.2B0.1 | 0.036 |
| 250 | 5 | 250:5 | 0.6B0.1 | 0.044 |
| 300 | 5 | 300:5 | 0.6B0.1 | 0.053 |
| 400 | 5 | 400:5 | 0.6B0.2 | 0.071 |
| 500 | 5 | 500:5 | 0.6B0.2 | 0.089 |
| 600 | 5 | 600:5 | 0.6B0.2 | 0.107 |
| 750 | 5 | 750:5 | 0.3B0.2 | 0.133 |
| 800 | 5 | 800:5 | 0.3B0.2 | 0.142 |
| 1000 | 5 | 1000:5 | 0.3B0.1 | 0.127 |
| 1200 | 5 | 1200:5 | 0.3B0.2 | 0.152 |
| 1500 | 5 | 1500:5 | 0.3B0.5 | 0.19 |
| 1600 | 5 | 1600:5 | 0.3B0.5 | 0.203 |
| 2000 | 5 | 2000:5 | 0.3B0.9 | 0.254 |
