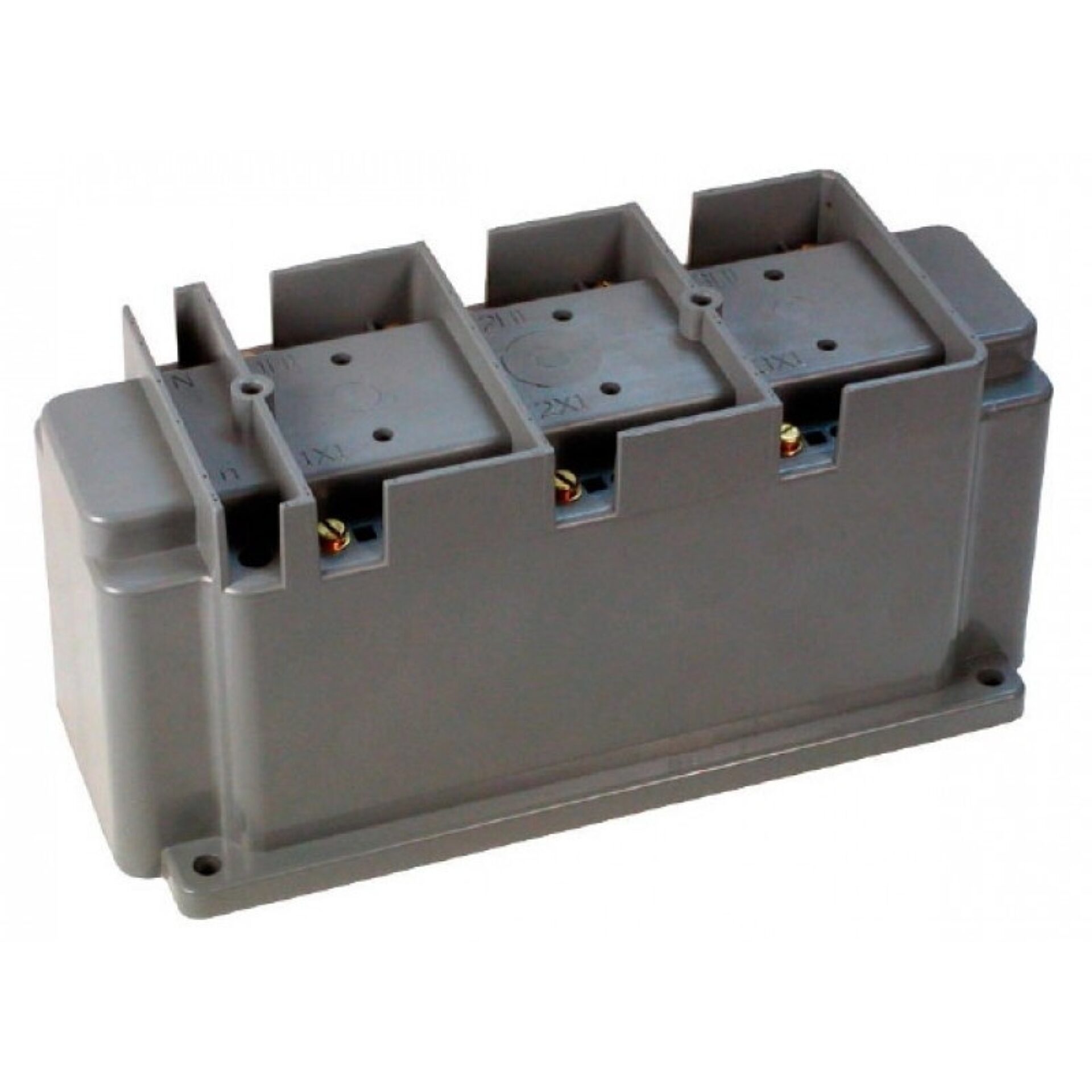

Model 3VTL460 3 Phase Voltage Transformer
Introducing the Model 3VTL460 Three-Phase Voltage Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance in various industrial and commercial applications, this transformer is an essential tool for ensuring the stability and safety of electrical systems.
Overview
Introducing the Model 3VTL460 Three-Phase Voltage Transformer, a high-quality electrical component and distributed by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance in various industrial and commercial applications, this transformer is an essential tool for ensuring the stability and safety of electrical systems.
a global leader in electrical engineering and innovation, the Model 3VTL460 is built with durability and accuracy in mind. Its robust construction and advanced design enable it to withstand demanding environments while providing consistent voltage readings. This transformer is ideal for use in power distribution, metering, and control systems, where accurate voltage measurement is critical for operational efficiency and safety compliance.
Spectrum Industries is proud to offer this premium product, which combines ’s renowned engineering expertise with Spectrum’s commitment to quality and customer satisfaction. The Model 3VTL460 features easy installation and maintenance, making it a practical choice for technicians and engineers seeking a dependable voltage transformation solution. Whether upgrading existing infrastructure or installing new systems, this transformer ensures optimal performance and peace of mind.
In summary, the -produced Model 3VTL460 Three-Phase Voltage Transformer, available through Spectrum Industries, stands out as a reliable, precise, and durable solution for modern electrical applications. Its superior design and manufacturing quality make it a valuable addition to any electrical setup requiring accurate voltage measurement and consistent operation.
Request a Quote for Model 3VTL460 3 Phase Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 24 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Accuracy Class (per phase)
- 0.6 W, 1.2 X at 60 Hz
- Thermal Rating (per phase)
- 150 VA @ 30°C amb.; 100 VA @ 55°C amb.
- Standard Secondary Voltage
- 120 V line-to-line
- Terminals
- No. 8-32 screws into 1/2" deep brass inserts with lockwasher and flatwasher
- Insulation Level
- 600 V, 10 kV BIL full wave
- Construction
- Three transformers in one case; core and coil encased in thermoplastic shell filled with resin; clear plastic cover
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Fuse Rating |
|---|---|---|---|---|---|
| 120 | 120 | 1:1 | 150 | 100 | 4.0 A |
| 208 | 120 | 1.73:1 | 150 | 100 | 2.0 A |
| 240 | 120 | 2:1 | 150 | 100 | 2.0 A |
| 288 | 120 | 2.4:1 | 150 | 100 | 1.5 A |
| 480 | 120 | 4:1 | 150 | 100 | 1.0 A |
| 600 | 120 | 5:1 | 150 | 100 | 0.75 A |
