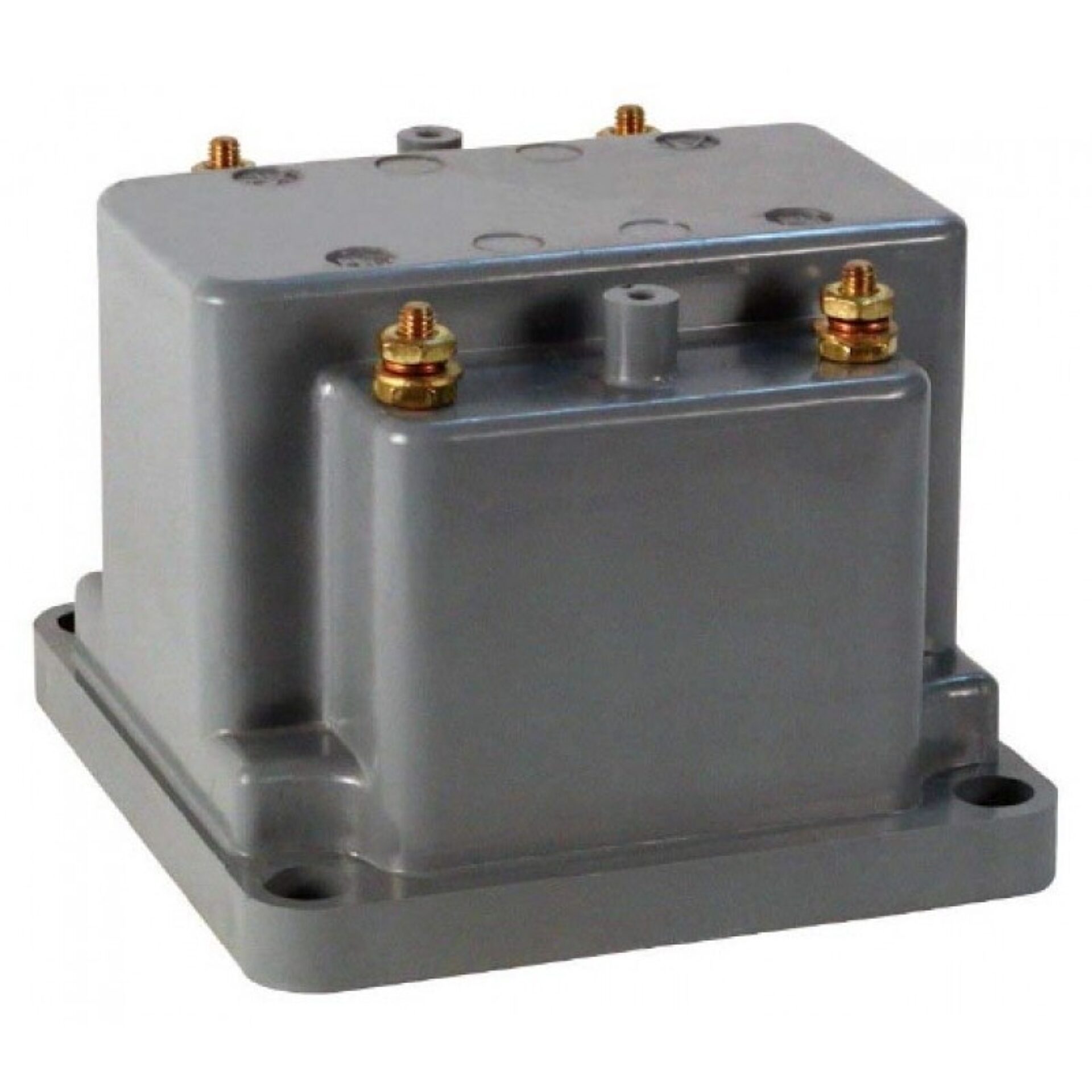

Model 460I Voltage Transformer
FREQUENCY: 50 Hz.
STANDARD SECONDARY VOLTAGE: 110 Volts
INSULATION LEVEL: 0.72kV
ACCURACY CLASS: 0.5 @ 10VA. - 1.0 @ 20VA.
THERMAL RATING: 125VA at 30oC. amb., 75VA at 55oC. amb.
Terminals are brass studs ASA 10-32 with one lockwasher, flatwasher and regular nut.
Approximate weight 3.5 kg
Would you like to customize this product? Contact us today to see if
we can create the custom option that fits your needs.
