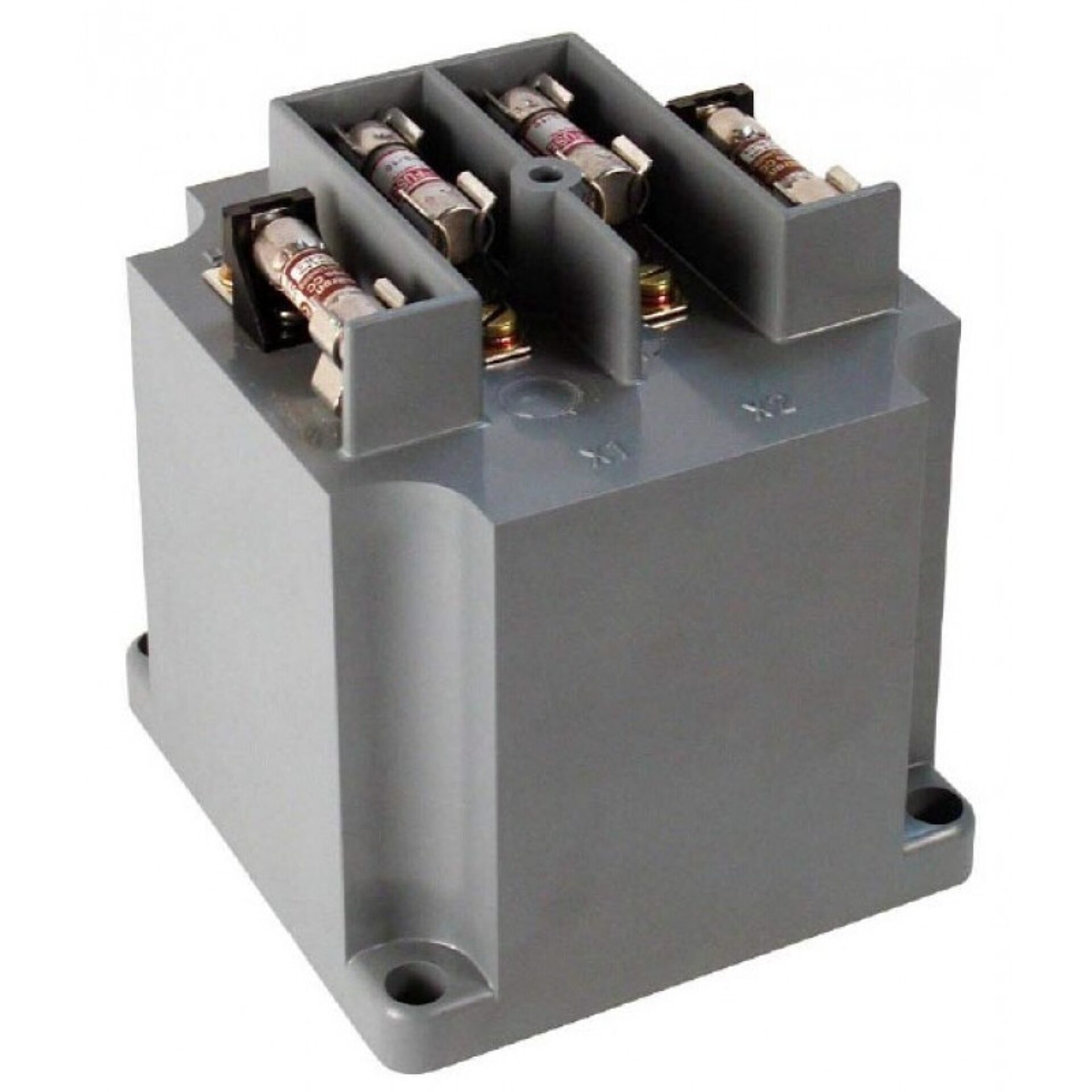

Model 460I Voltage Transformer Fused
Introducing the Model 460i Voltage Transformer Fused, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance, this voltage transformer is an essential component for various electrical applications, ensuring safety and accuracy in your operations. Built with durability and efficiency in mind, the Model 460i is suitable for use in industrial, commercial, and utility settings where dependable voltage monitoring is critical.
Overview
Introducing the Model 460i Voltage Transformer Fused, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance, this voltage transformer is an essential component for various electrical applications, ensuring safety and accuracy in your operations. Built with durability and efficiency in mind, the Model 460i is suitable for use in industrial, commercial, and utility settings where dependable voltage monitoring is critical.
a globally recognized leader in electrical equipment and technology, this transformer embodies innovation and engineering excellence. Spectrum Industries, a trusted provider of electrical components and solutions, offers the Model 460i to meet the demanding needs of professionals seeking dependable voltage transformation and protection. Its fused design enhances safety by providing overcurrent protection, reducing the risk of damage to connected equipment and ensuring longevity.
Whether you're upgrading existing systems or installing new infrastructure, the Model 460i Voltage Transformer Fused offers consistent performance and peace of mind. Its robust construction and precise specifications make it a reliable choice for safeguarding your electrical systems. Trust in the quality and expertise behind this product— and distributed by Spectrum Industries—to deliver the performance and safety your applications require.
Request a Quote for Model 460I Voltage Transformer Fused
Product Specifications
- Frequency
- 50 Hz
- Weight
- 7.7 lbs
- Application
- Metering, Protection
- Insulation Level
- 0.72 kV
- Accuracy Class
- 0.5 at 10 VA; 1.0 at 20 VA
- Thermal Rating
- 125 VA at 30 C amb.; 75 VA at 55 C amb.
- Standard Secondary Voltage
- 110 V
- Terminals
- Brass screws ASA 8-32 with one lockwasher and flatwasher
- Construction
- Core and coil encased in a thermoplastic shell and resin filled
- Connection
- Line-to-line; may be operated line-to-ground or line-to-neutral at 58% of rated volts
- Secondary Fuse
- 1.75 A BBS type or equivalent recommended
- Primary Fuse Type
- Class CC rejection type
- Cover
- Clear plastic
- Rating Basis
- IEC rated, 50 Hz
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 110 | 110 | 1:1 | 3 amp |
| 110 | 110 | 1:1 | 3 amp |
| 220 | 110 | 2:1 | 2 amp |
| 220 | 110 | 2:1 | 2 amp |
| 380 | 110 | 3.45:1 | 1 amp |
| 380 | 110 | 3.45:1 | 1 amp |
| 400 | 110 | 3.64:1 | 1 amp |
| 400 | 110 | 3.64:1 | 1 amp |
| 416 | 110 | 3.78:1 | 1 amp |
| 416 | 110 | 3.78:1 | 1 amp |
| 440 | 110 | 4:1 | 1 amp |
| 440 | 110 | 4:1 | 1 amp |
