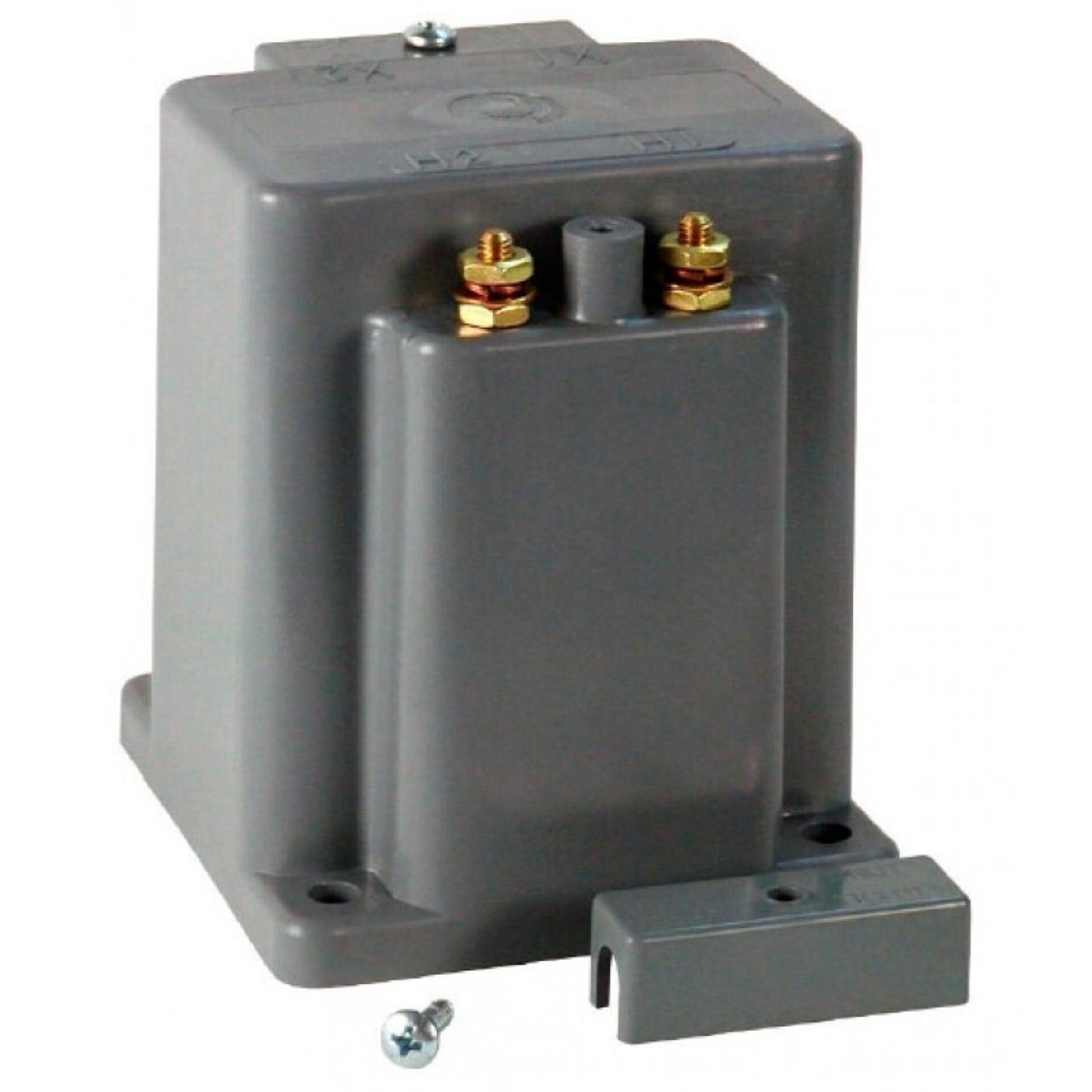

Model 465 Voltage Transformer
Introducing the Model 465 Voltage Transformer, a high-quality product, distributed by Spectrum Industries. Designed to provide precise voltage measurement and monitoring, this transformer is an essential tool for electrical professionals and technicians who require reliable performance in various applications. Whether used in industrial settings, power distribution, or testing environments, the Model 465 offers exceptional accuracy and durability, ensuring that your voltage readings are both consistent and dependable.
Overview
Introducing the Model 465 Voltage Transformer, a high-quality product, distributed by Spectrum Industries. Designed to provide precise voltage measurement and monitoring, this transformer is an essential tool for electrical professionals and technicians who require reliable performance in various applications. Whether used in industrial settings, power distribution, or testing environments, the Model 465 offers exceptional accuracy and durability, ensuring that your voltage readings are both consistent and dependable.
a globally recognized leader in electrical equipment and engineering innovation, the Model 465 Voltage Transformer embodies the company's commitment to quality and technological excellence. Spectrum Industries, known for its dedication to providing top-tier electrical components, ensures that this transformer meets rigorous standards for performance and safety. Its robust construction and advanced design make it suitable for demanding conditions, while its user-friendly features facilitate straightforward installation and operation.
This voltage transformer is engineered to deliver stable and precise voltage conversion, making it an invaluable asset for applications that require exact measurements and reliable data. Whether integrating into complex electrical systems or serving as a standalone testing device, the Model 465 via Spectrum Industries stands out as a trusted choice for professionals seeking high-performance electrical components. With its combination of precision engineering and trusted brand heritage, this transformer is a smart investment for any electrical setup.
Request a Quote for Model 465 Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 7.75 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Accuracy Class
- 0.6 W, 1.2 X at 60 Hz
- Rated Secondary Voltage
- 120 V
- Rated Primary Voltage
- 600 V
- Terminals
- Brass studs No. 10-32 with lockwasher, flatwasher and nut
- Construction
- Thermoplastic shell, resin filled core and coil
- Connection
- Line-to-line (also line-to-ground/neutral at 58% of rated)
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Fuse Rating |
|---|---|---|---|---|---|
| 69.3 | 120 | 69.3:120 | 150 | 100 | 5.0 A |
| 120 | 120 | 120:120 | 150 | 100 | 4.0 A |
| 208 | 120 | 208:120 | 150 | 100 | 2.0 A |
| 240 | 120 | 240:120 | 150 | 100 | 2.0 A |
| 277 | 120 | 277:120 | 150 | 100 | 2.0 A |
| 288 | 120 | 288:120 | 150 | 100 | 1.5 A |
| 300 | 120 | 300:120 | 150 | 100 | 1.5 A |
| 346 | 120 | 346:120 | 150 | 100 | 1.5 A |
| 480 | 120 | 480:120 | 150 | 100 | 1.0 A |
| 600 | 120 | 600:120 | 150 | 100 | 0.75 A |
