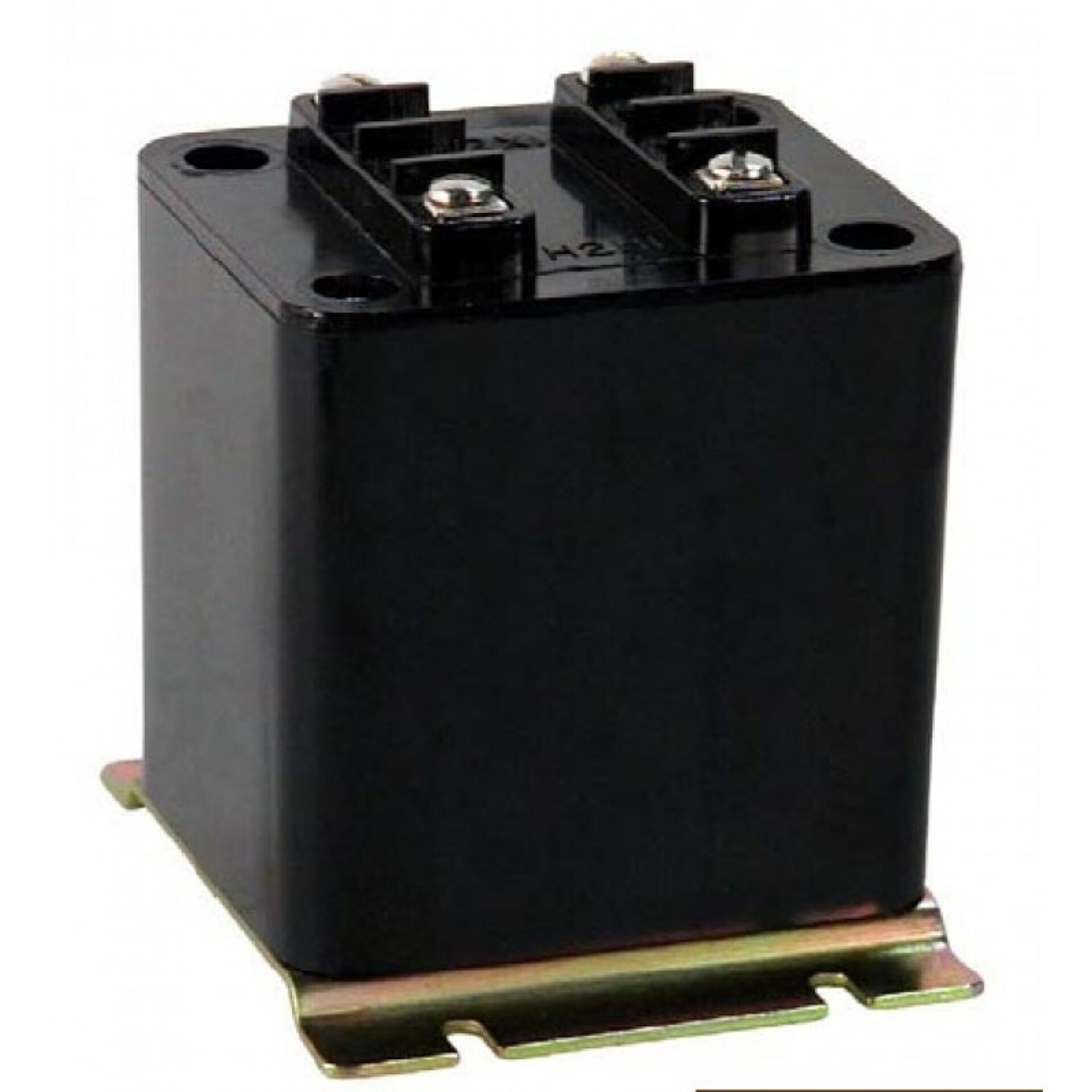

Model 467 Voltage Transformer
Introducing the Model 467 Voltage Transformer, a high-quality and reliable solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical testing and measurement applications, this voltage transformer offers precision, durability, and safety in a compact and easy-to-use package. Whether you're working in industrial, commercial, or research environments, the Model 467 provides accurate voltage transformation, ensuring that your measurements are consistent and dependable.
Overview
Introducing the Model 467 Voltage Transformer, a high-quality and reliable solution, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical testing and measurement applications, this voltage transformer offers precision, durability, and safety in a compact and easy-to-use package. Whether you're working in industrial, commercial, or research environments, the Model 467 provides accurate voltage transformation, ensuring that your measurements are consistent and dependable.
a global leader in electrical and electronic manufacturing, this voltage transformer benefits from decades of engineering expertise and innovation. Spectrum Industries has carefully selected and integrated ’s advanced technology into this product to deliver exceptional performance and longevity. The Model 467 is built with high-quality materials and features robust construction, making it suitable for both laboratory and field use. Its design emphasizes ease of calibration and maintenance, helping users achieve optimal accuracy with minimal effort.
With its versatile specifications and reliable operation, the Model 467 Voltage Transformer is an essential tool for technicians, engineers, and researchers who require precise voltage conversion for testing and measurement tasks. Trust in Spectrum Industries’ commitment to quality and ’s proven engineering excellence to provide you with a product that enhances your operational efficiency and ensures safety in your electrical projects.
Request a Quote for Model 467 Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 2.5 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Thermal rating @ 30 C ambient
- 40 VA
- Insulation level
- 600 V, 10 kV BIL full wave
- Terminals
- No. 6-32 screws with one lockwasher and one flatwasher
- Cover
- Clear plastic cover
- Construction
- Core and coil assembly encased in a thermoplastic shell and filled with resin
- Recommended secondary fuse
- 0.40 A
- Line-to-ground operation
- Permitted at reduced voltage (58% of rated volts)
- 50 Hz operation
- Available with reduced performance; consult factory for details
- Burden — Value
- 5
- Burden — Condition
- max
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- at all burdens up to 5 VA at 1.0 and 0.95 P.F.
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 69.3 | 120 | 69.3:120 | 1.5 A |
| 120 | 120 | 120:120 | 1.0 A |
| 208 | 120 | 208:120 | 0.5 A |
| 240 | 120 | 240:120 | 0.5 A |
| 277 | 120 | 277:120 | 0.5 A |
| 288 | 120 | 288:120 | 0.4 A |
| 300 | 120 | 300:120 | 0.4 A |
| 346 | 120 | 346:120 | 0.4 A |
| 480 | 120 | 480:120 | 0.25 A |
| 600 | 120 | 600:120 | 0.25 A |
