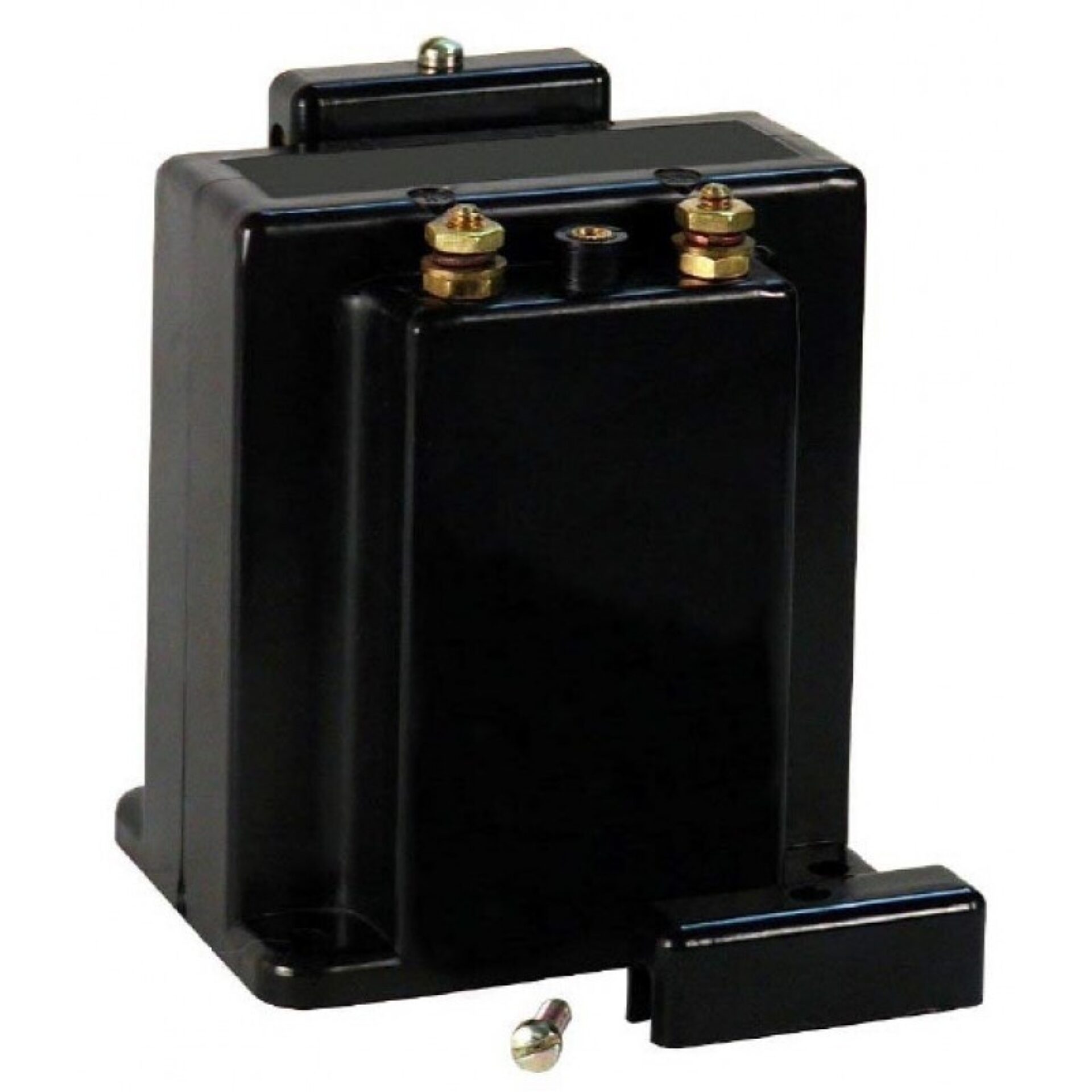

Model 468 Voltage Transformer
Introducing the Model 468 Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical testing and measurement, this voltage transformer offers exceptional accuracy and reliability, making it an essential tool for professionals in the electrical and engineering fields.
Overview
Introducing the Model 468 Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical testing and measurement, this voltage transformer offers exceptional accuracy and reliability, making it an essential tool for professionals in the electrical and engineering fields.
The Model 468 Voltage Transformer is engineered to provide precise voltage conversion, ensuring that your measurements are both accurate and consistent. Its robust construction and advanced design make it suitable for a wide range of applications, from laboratory testing to field installations. Whether you're calibrating equipment or performing detailed electrical analysis, this transformer delivers dependable performance that you can trust.
a globally recognized leader in electrical manufacturing and innovation, the Model 468 embodies the company's commitment to quality and technological excellence. Spectrum Industries, a trusted distributor of specialized electrical equipment, offers this transformer as part of their extensive product lineup. The combination of our manufacturing expertise and Spectrum Industries' dedication to customer satisfaction ensures that you receive a product that meets the highest standards of quality and durability.
In summary, the Model 468 Voltage Transformer by, available through Spectrum Industries, is a reliable and precise instrument designed to support your electrical measurement needs. Its durability, accuracy, and reputable manufacturing make it a valuable addition to any professional's toolkit.
Request a Quote for Model 468 Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Standard Secondary Voltage
- 120 V
- Insulation Level
- 600 V, 10 kV BIL full wave
- Thermal Rating
- 75 VA @ 30 C, 50 VA @ 55 C
- Terminals
- No. 10-32 brass studs
- Construction
- Encapsulated
- Connection
- Line-to-line (standard)
- Secondary Fuse Recommendation
- 0.80 A
- ANSI C57.13 Accuracy Group
- Group 1 (standard) / Group 2 (marked)
- 50 Hz Variants
- 468-380, 468-400, 468-416
- 3-Phase Version
- Model 3VT468
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 69.3 | 120 | 69.3:120 | 3 |
| 120 | 120 | 120:120 | 2 |
| 208 | 120 | 208:120 | 1 |
| 240 | 120 | 240:120 | 1 |
| 277 | 120 | 277:120 | 1 |
| 288 | 120 | 288:120 | 0.75 |
| 300 | 120 | 300:120 | 0.75 |
| 346 | 120 | 346:120 | 0.75 |
| 480 | 120 | 480:120 | 0.5 |
| 600 | 120 | 600:120 | 0.4 |
