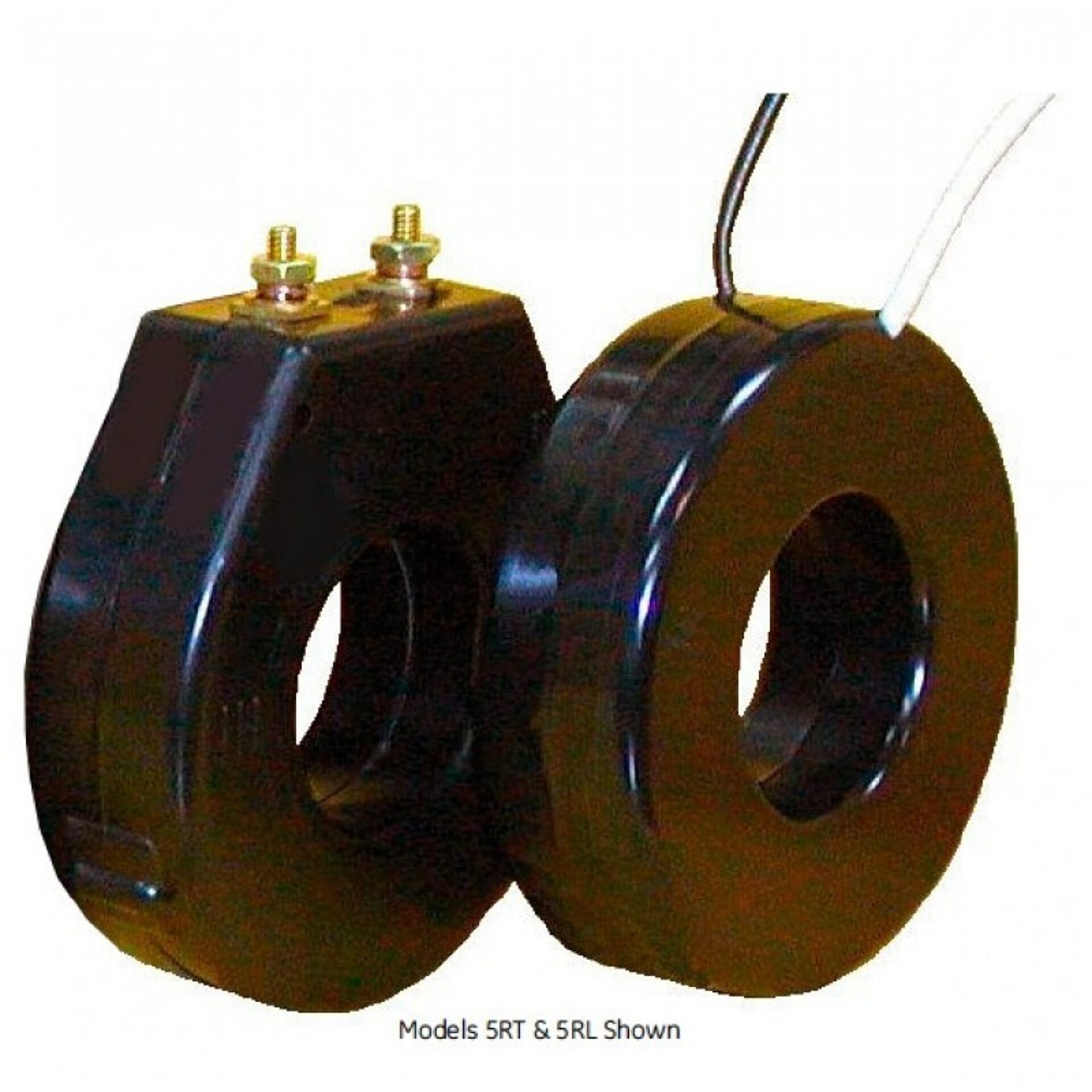

Model 5 Current Transformer
Introducing the Model 5 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 5 offers consistent performance, ensuring that electrical parameters are accurately captured for analysis and safety purposes.
Overview
Introducing the Model 5 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 5 offers consistent performance, ensuring that electrical parameters are accurately captured for analysis and safety purposes.
a globally recognized leader in electrical equipment, the Model 5 Current Transformer benefits from advanced engineering and rigorous quality standards. Its robust construction and precise calibration make it suitable for demanding environments where dependable readings are critical. The transformer’s design allows for easy installation and integration into existing systems, providing users with a straightforward solution for current measurement needs.
Spectrum Industries takes pride in offering reliable products that meet the highest standards of quality and performance. The Model 5 Current Transformer exemplifies this commitment, providing customers with a trusted tool for electrical diagnostics, system protection, and energy management. Whether you are upgrading your current measurement setup or implementing new electrical infrastructure, the Model 5 by, available through Spectrum Industries, is a dependable choice that ensures accuracy and durability for years to come.
Request a Quote for Model 5 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation
- 600 V, 10 kV BIL full wave
- Window Diameter
- 1.56 in
- Leads
- UL 1015, 105 C, #16 AWG, 24 in
- Terminals
- Brass studs #8-32 with flatwasher, lockwasher and regular nut
- Case Styles
- SFT, SHT, SRT, RL, RBT, RBL (SHT and SHF also available as SHL and SFL with leads)
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
