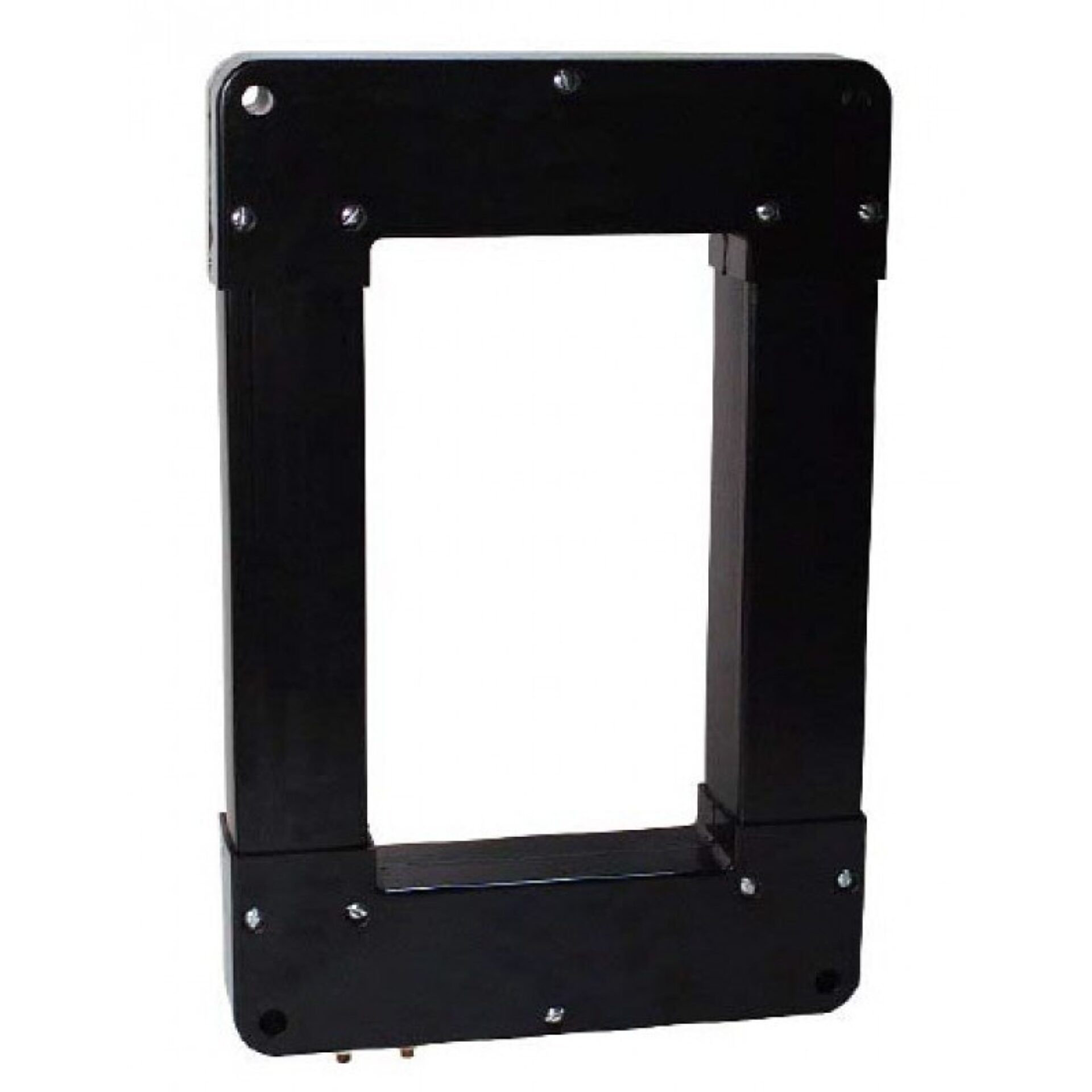

Model 500 Split Core Current Transformer
Introducing the Model 500 Split Core Current Transformer, a reliable and efficient solution for accurate current measurement in a variety of electrical applications. and distributed by Spectrum Industries, this advanced device is designed to provide precise readings while offering the convenience of a split core design. Its innovative construction allows for easy installation without the need to disconnect wiring, making it ideal for retrofit projects, maintenance, and monitoring in existing systems.
Overview
Introducing the Model 500 Split Core Current Transformer, a reliable and efficient solution for accurate current measurement in a variety of electrical applications. and distributed by Spectrum Industries, this advanced device is designed to provide precise readings while offering the convenience of a split core design. Its innovative construction allows for easy installation without the need to disconnect wiring, making it ideal for retrofit projects, maintenance, and monitoring in existing systems.
The Model 500 split core current transformer is built with durability and performance in mind. It features high-quality materials that ensure long-lasting operation even in demanding environments. The split core design enables quick and hassle-free installation, reducing downtime and labor costs. This transformer is suitable for use in residential, commercial, and industrial settings, providing accurate current measurement for energy management, load analysis, and system troubleshooting.
a leader in electrical and electronic manufacturing, the Model 500 reflects a commitment to quality and innovation. Spectrum Industries distributes this product, ensuring it meets rigorous standards for performance and reliability. Whether you are upgrading your existing electrical system or installing new monitoring equipment, the Model 500 split core current transformer offers a dependable solution that combines ease of use with precise measurement capabilities.
Request a Quote for Model 500 Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C amb., 1.0 at 55 C amb.
- Terminals
- 8-32 brass studs with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long (available)
- Window Size
- Available up to 10 in x 30 in
- Weight
- 8 to 18 lbs
- Part Number Format
- 500T<size> X <ratio number>, e.g. 500T041 X 117
Specification Table
| Ratio | Ratio Number | Accuracy Class with U.P.F. Burden |
|---|---|---|
| 300:5 | 301 | 5 % @ 1.5VA |
| 400:5 | 401 | 3 % @ 2.5VA |
| 500:5 | 501 | 2 % @ 2.5VA |
| 600:5 | 601 | 1 % @ 4.0VA |
| 750:5 | 751 | 1 % @ 5.0VA |
| 800:5 | 801 | 1 % @ 5.0VA |
| 1000:5 | 102 | 1 % @ 7.5VA |
| 1200:5 | 122 | 1 % @ 10.0VA |
| 1500:5 | 152 | 1 % @ 12.5VA |
| 2000:5 | 202 | 1 % @ 15.0VA |
| 2500:5 | 252 | 1 % @ 25.0VA |
| 3000:5 | 302 | 1 % @ 25.0VA |
| 3500:5 | 352 | 1 % @ 25.0VA |
| 4000:5 | 402 | 1 % @ 25.0VA |
| 5000:5 | 502 | 1 % @ 30.0VA |
| 6000:5 | 602 | 1 % @ 40.0VA |
Ratio number 301. Accuracy class with unity-power-factor burden: 5 % @ 1.5VA.
