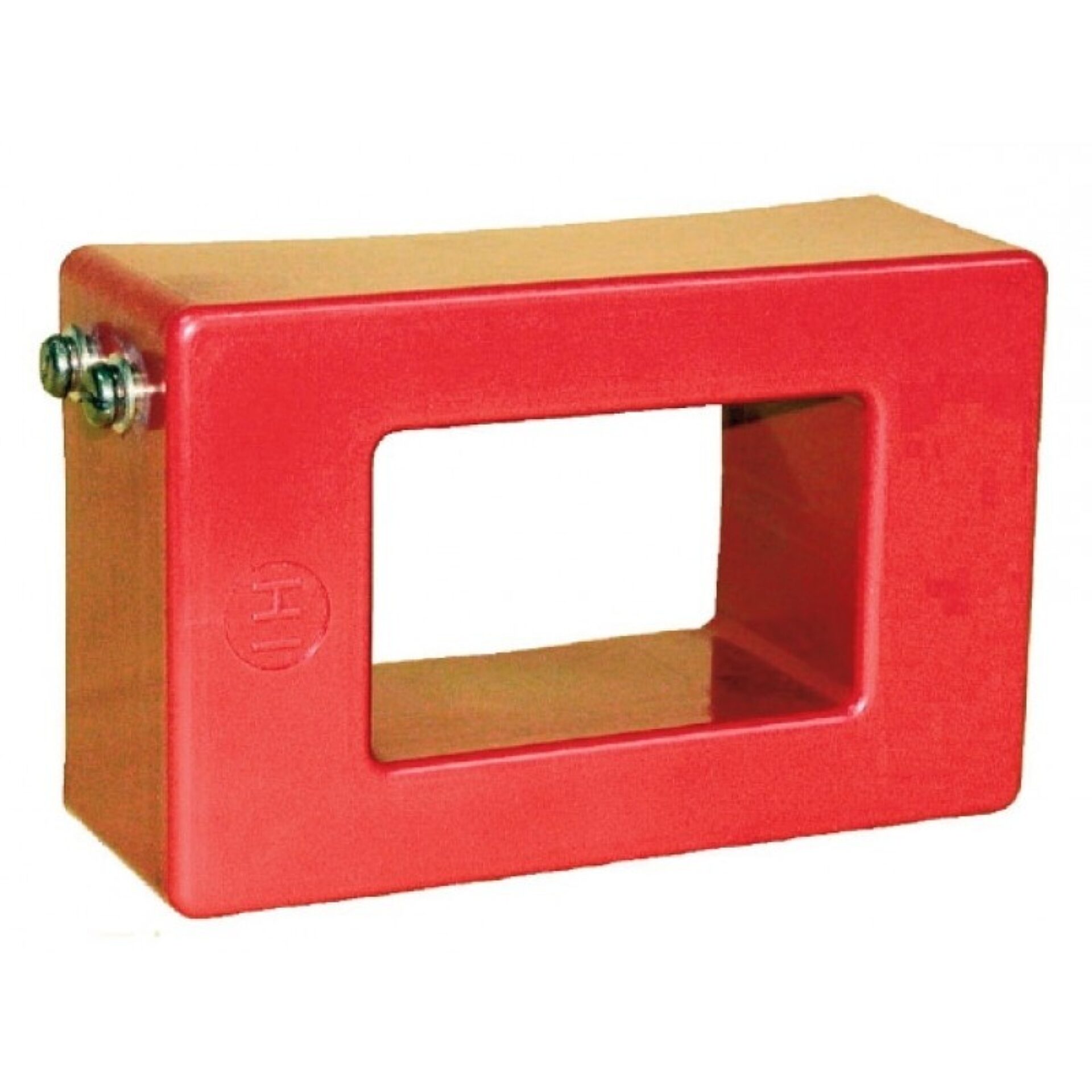

Model 530 Current Transformer
Introducing the Model 530 Current Transformer, a high-quality electrical measurement device, offered by Spectrum Industries. Designed to provide precise current measurement capabilities, this transformer is an essential component for electrical systems that require accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 530 ensures reliable performance and durability, making it a trusted choice for professionals in the electrical field.
Overview
Introducing the Model 530 Current Transformer, a high-quality electrical measurement device, offered by Spectrum Industries. Designed to provide precise current measurement capabilities, this transformer is an essential component for electrical systems that require accurate monitoring and control. Whether used in industrial, commercial, or utility applications, the Model 530 ensures reliable performance and durability, making it a trusted choice for professionals in the electrical field.
a global leader in electrical and electronic equipment, the Model 530 Current Transformer embodies advanced engineering and rigorous quality standards. Its robust construction and precise specifications enable it to operate effectively in demanding environments, ensuring consistent and accurate readings over time. The transformer is engineered to handle a wide range of current levels, providing versatility and flexibility for various measurement needs.
Spectrum Industries offers the Model 530 as part of their extensive portfolio of electrical components, emphasizing quality and customer satisfaction. This current transformer is easy to install and maintain, making it a practical solution for both new installations and system upgrades. With its proven performance and trusted brand backing, the Model 530 is an excellent choice for ensuring the safety, efficiency, and reliability of your electrical infrastructure.
Request a Quote for Model 530 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3.5 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 600 V
- Window Size
- 1.88" x 3.06"
- Construction
- Cast resin
- Terminals
- Brass screws No. 10-32
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 100 | 5 | 100:5 | 1.2B0.1 | 1.33 | 1 |
| 150 | 5 | 150:5 | 0.6B0.1 | 1.33 | 1 |
| 200 | 5 | 200:5 | 0.6B0.2 | 1.33 | 1 |
| 250 | 5 | 250:5 | 0.3B0.1 | 1.33 | 1 |
| 300 | 5 | 300:5 | 0.3B0.1 | 1.33 | 1 |
| 400 | 5 | 400:5 | 0.3B0.2 | 1.33 | 1 |
| 500 | 5 | 500:5 | 0.3B0.5 | 1.33 | 1 |
| 600 | 5 | 600:5 | 0.3B0.2 | 1.33 | 1 |
| 750 | 5 | 750:5 | 0.3B0.5 | 1.33 | 1 |
| 800 | 5 | 800:5 | 0.3B0.5 | 1.33 | 1 |
