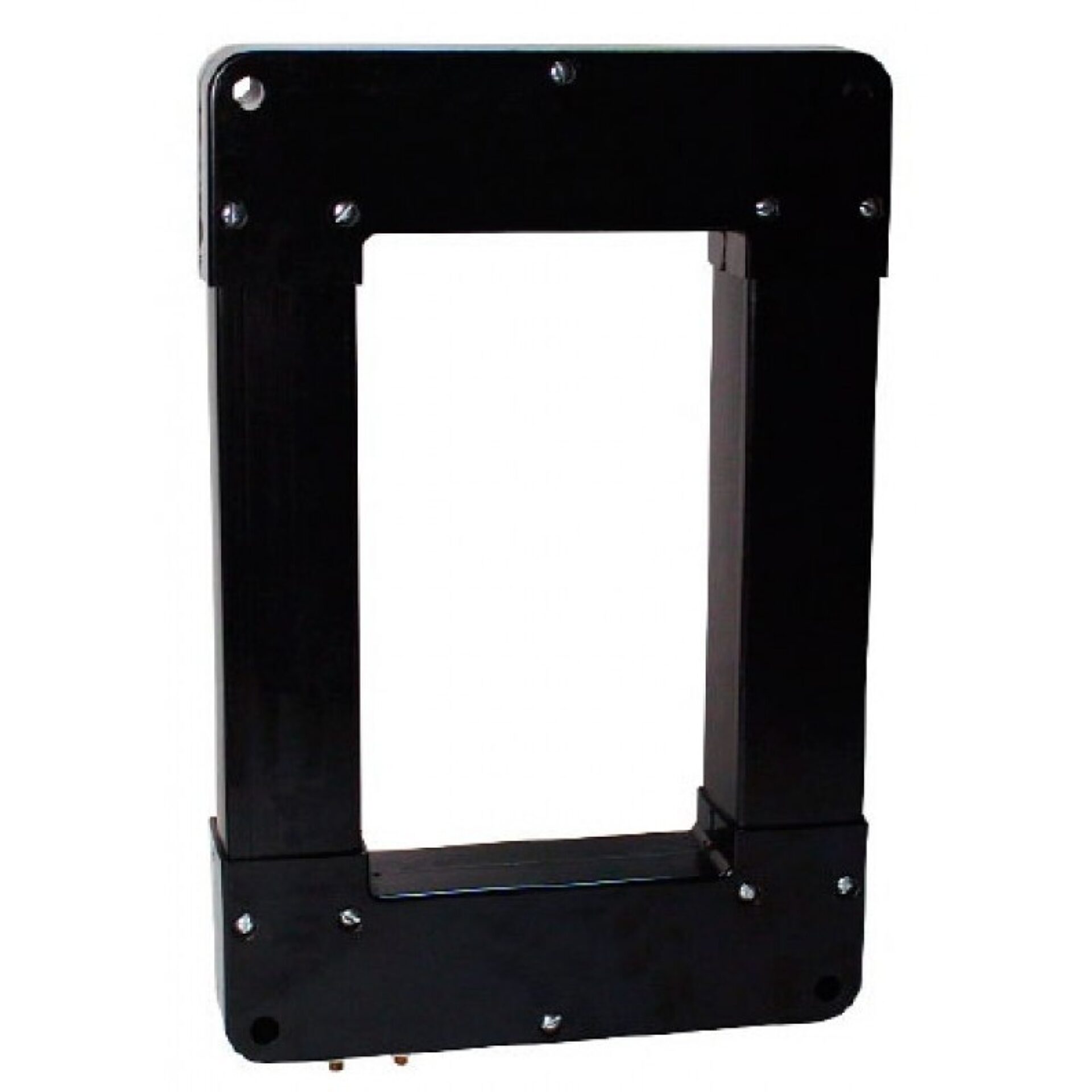

Model 550 Split Core Current Transformer
Introducing the Model 550 Split Core Current Transformer, a premium solution, brought to you by Spectrum Industries. Designed to provide precise current measurement while offering ease of installation, this transformer is ideal for a wide range of electrical applications, including power monitoring, energy management, and industrial automation.
Overview
Introducing the Model 550 Split Core Current Transformer, a premium solution, brought to you by Spectrum Industries. Designed to provide precise current measurement while offering ease of installation, this transformer is ideal for a wide range of electrical applications, including power monitoring, energy management, and industrial automation.
The Model 550 features a split core design that allows for quick and simple installation without the need to disconnect wiring or shut down systems. This makes it especially suitable for retrofitting existing electrical systems where minimizing downtime is critical. Its robust construction ensures durability and reliable performance even in demanding environments, providing accurate readings over extended periods.
a globally recognized leader in electrical and electronic manufacturing, this current transformer benefits from advanced engineering and quality standards. Spectrum Industries, the trusted distributor, ensures that all products meet stringent specifications, delivering consistent and dependable results. The Model 550's compact size and user-friendly design make it a versatile choice for technicians and engineers seeking a high-quality current measurement solution.
Whether used for monitoring electrical loads or integrating into complex automation systems, the Model 550 Split Core Current Transformer offers exceptional accuracy, ease of use, and long-term reliability. It stands as a testament to ’s commitment to innovation and Spectrum Industries’ dedication to providing top-tier electrical components.
Request a Quote for Model 550 Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C amb., 1.0 at 55 C amb.
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105 C, CSA approved, 18 AWG, 24 in long
- Window Size
- Available up to 10 in x 30 in
- Weight
- 8 to 18 lbs
Specification Table
| Current Ratio (Amperes) | VA for 1% Class | ANSI Metering Class B0.1 | ANSI Metering Class B0.2 | ANSI Metering Class B0.5 |
|---|---|---|---|---|
| 300:5 | 1.5 | 4.8 | 4.8 | - |
| 400:5 | 2.5 | 2.4 | 4.8 | 4.8 |
| 500:5 | 5 | 1.2 | 2.4 | 4.8 |
| 600:5 | 7.5 | 1.2 | 2.4 | 2.4 |
| 750:5 | 15 | 1.2 | 1.2 | 2.4 |
| 800:5 | 15 | 0.6 | 1.2 | 2.4 |
| 1000:5 | 20 | 0.6 | 0.6 | 0.6 |
| 1200:5 | 25 | 0.6 | 0.6 | 0.6 |
| 1500:5 | 35 | 0.6 | 0.6 | 0.6 |
| 1600:5 | 40 | 0.6 | 0.6 | 0.6 |
| 2000:5 | 50 | 0.6 | 0.6 | 0.6 |
| 2500:5 | 60 | 0.6 | 0.6 | 0.6 |
| 3000:5 | 70 | 0.6 | 0.6 | 0.6 |
| 3500:5 | 80 | 0.6 | 0.6 | 0.6 |
| 4000:5 | 100 | 0.6 | 0.6 | 0.6 |
| 5000:5 | 100 | 0.6 | 0.6 | 0.6 |
VA for 1% class 1.5. ANSI metering class at 60 Hz: 4.8 at B0.1, 4.8 at B0.2, - at B0.5.
