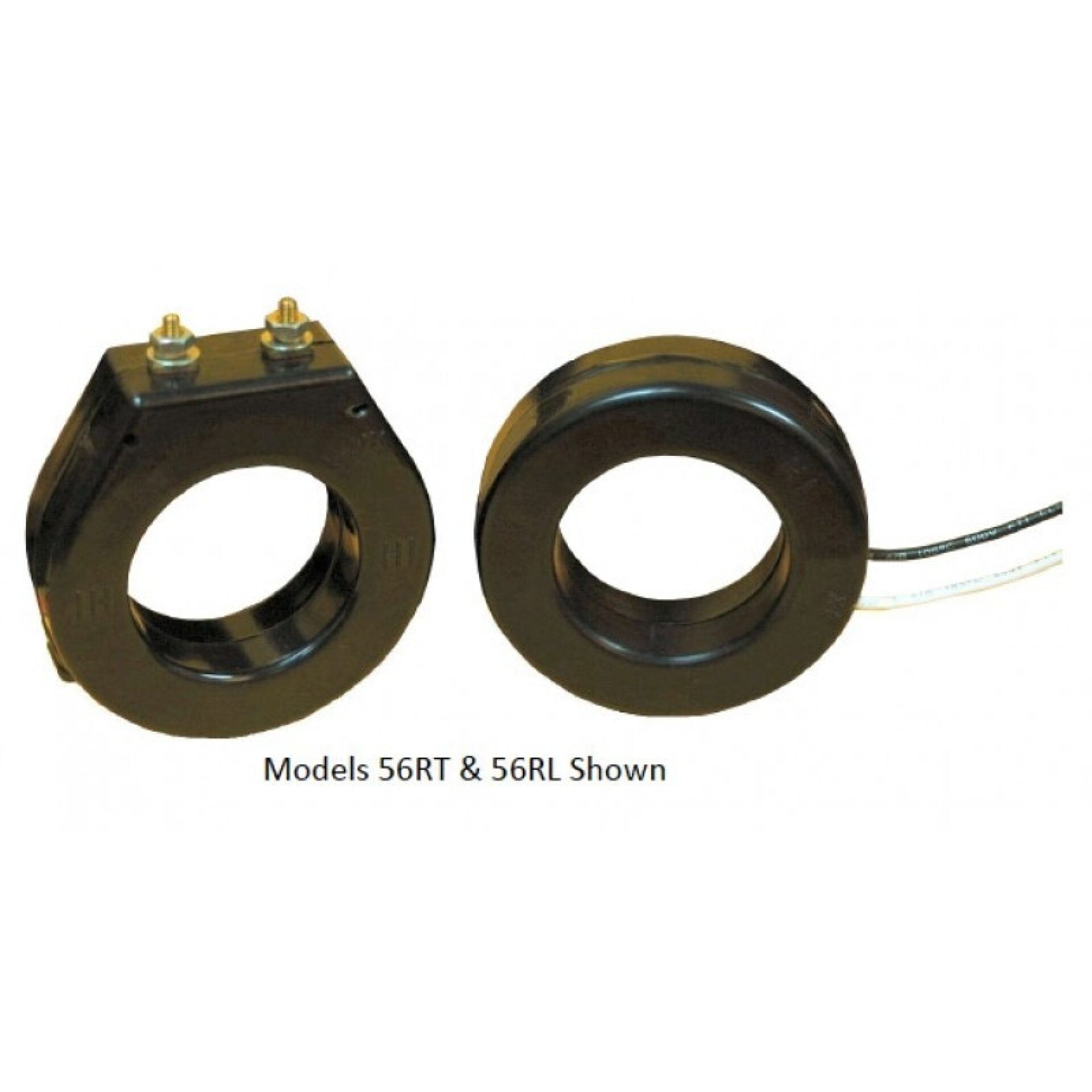

Model 56 Current Transformer
Introducing the Model 56 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate current measurement in various electrical applications. Whether used in industrial settings, power distribution, or testing environments, the Model 56 ensures consistent performance and dependable readings.
Overview
Introducing the Model 56 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for accurate current measurement in various electrical applications. Whether used in industrial settings, power distribution, or testing environments, the Model 56 ensures consistent performance and dependable readings.
a globally recognized leader in electrical and electronic solutions, this current transformer benefits from decades of engineering expertise and innovation. Its robust construction and advanced design enable it to handle demanding operational conditions while maintaining accuracy. The Model 56 is engineered to meet the stringent standards required for professional electrical measurement and monitoring, making it a trusted choice for engineers and technicians alike.
Spectrum Industries, the authorized distributor of this product, ensures that customers receive genuine, high-quality equipment backed by excellent support and service. The Model 56 Current Transformer is easy to install and compatible with a wide range of electrical systems, providing versatility for various applications. With its durable build and precise performance, this product by Spectrum Industries is an excellent investment for anyone seeking reliable current measurement solutions.
Request a Quote for Model 56 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.6 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation Level
- 600 V, 10 kV BIL full wave
- Window Diameter
- 2.06 in
- Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher, and regular nut
- Available Case Styles
- SFT, SFL, RT, RBT, RL, RBL
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 50 | 5 | 50:5 |
| 75 | 5 | 75:5 |
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
