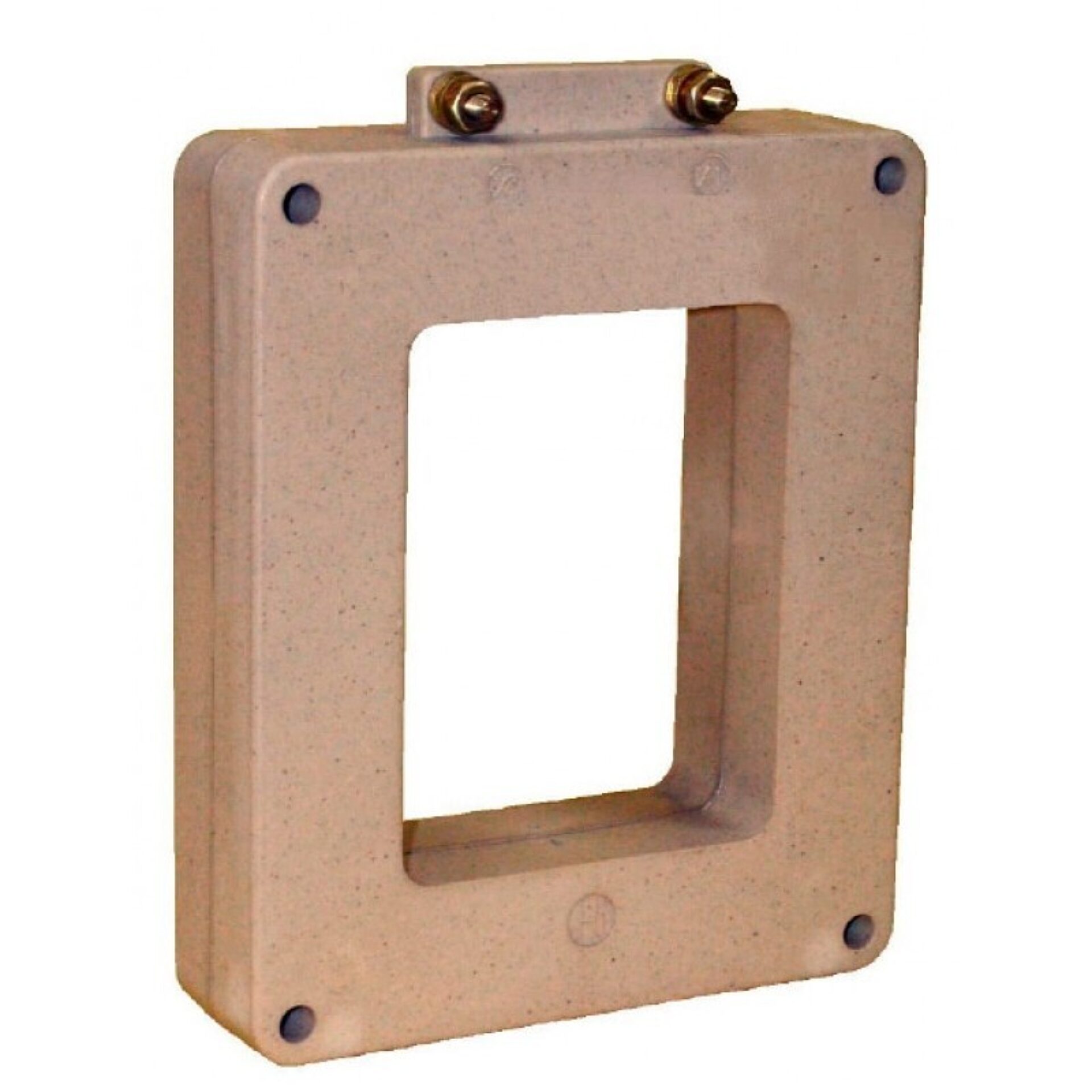

Model 560 Current Transformer
Introducing the Model 560 Current Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical measurement and monitoring applications. and manufactured by Spectrum Industries, this current transformer is engineered to deliver precise and consistent current readings, ensuring the safety and efficiency of your electrical systems. Whether you're involved in industrial, commercial, or utility settings, the Model 560 provides the accuracy and durability required for critical measurement tasks.
Overview
Introducing the Model 560 Current Transformer, a reliable and high-performance solution designed to meet the demanding needs of electrical measurement and monitoring applications. and manufactured by Spectrum Industries, this current transformer is engineered to deliver precise and consistent current readings, ensuring the safety and efficiency of your electrical systems. Whether you're involved in industrial, commercial, or utility settings, the Model 560 provides the accuracy and durability required for critical measurement tasks.
The Model 560 Current Transformer features robust construction and advanced design elements that enhance its longevity and performance under various operating conditions. Its compact size makes it easy to integrate into existing setups without compromising space, while its high accuracy ensures that your measurements are reliable and repeatable. Built with quality materials and precision engineering, this transformer is suitable for both new installations and upgrades to existing systems.
Spectrum Industries, a trusted name in electrical instrumentation, ensures that each Model 560 is manufactured with strict quality standards, offering users peace of mind and dependable operation. This current transformer is an excellent choice for professionals seeking a dependable, accurate, and durable component for current measurement tasks. With its proven design and the backing of ’s engineering expertise, the Model 560 is poised to be a valuable addition to your electrical measurement toolkit.
Request a Quote for Model 560 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 6 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation System
- Temperature Class H (180 C)
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C amb / 1.0 at 55 C amb
- Window Size
- 3.25 in x 4.25 in
- Terminals
- Brass studs No. 10-32 with flatwasher, lockwasher, regular nut
- Revenue Metering Approval
- Industry Canada No. AE-0659 (marked ratios)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 1.33 | 1 | 0.012 |
| 150 | 5 | 150:5 | 1.2B0.1 | 1.33 | 1 | 0.017 |
| 200 | 5 | 200:5 | 1.2B0.2 | 1.33 | 1 | 0.023 |
| 250 | 5 | 250:5 | 0.6B0.1 | 1.33 | 1 | 0.038 |
| 300 | 5 | 300:5 | 0.6B0.2 | 1.33 | 1 | 0.045 |
| 400 | 5 | 400:5 | 0.6B0.2 | 1.33 | 1 | 0.095 |
| 500 | 5 | 500:5 | 0.3B0.2 | 1.33 | 1 | 0.118 |
| 600 | 5 | 600:5 | 0.3B0.2 | 1.33 | 1 | 0.142 |
| 750 | 5 | 750:5 | 0.3B0.5 | 1.33 | 1 | 0.178 |
| 800 | 5 | 800:5 | 0.3B0.5 | 1.33 | 1 | 0.19 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 1.33 | 1 | 0.211 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 1.33 | 1 | 0.253 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 1.33 | 1 | 0.368 |
| 1600 | 5 | 1600:5 | 0.3B0.9 | 1.33 | 1 | 0.262 |
| 2000 | 5 | 2000:5 | 0.3B0.9 | 1.33 | 1 | 0.328 |
| 2500 | 5 | 2500:5 | 0.3B1.8 | 1.33 | 1 | 0.41 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 | 0.347 |
| 3200 | 5 | 3200:5 | 0.3B1.8 | 1.33 | 1 | 0.37 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1.33 | 1 | 0.462 |
