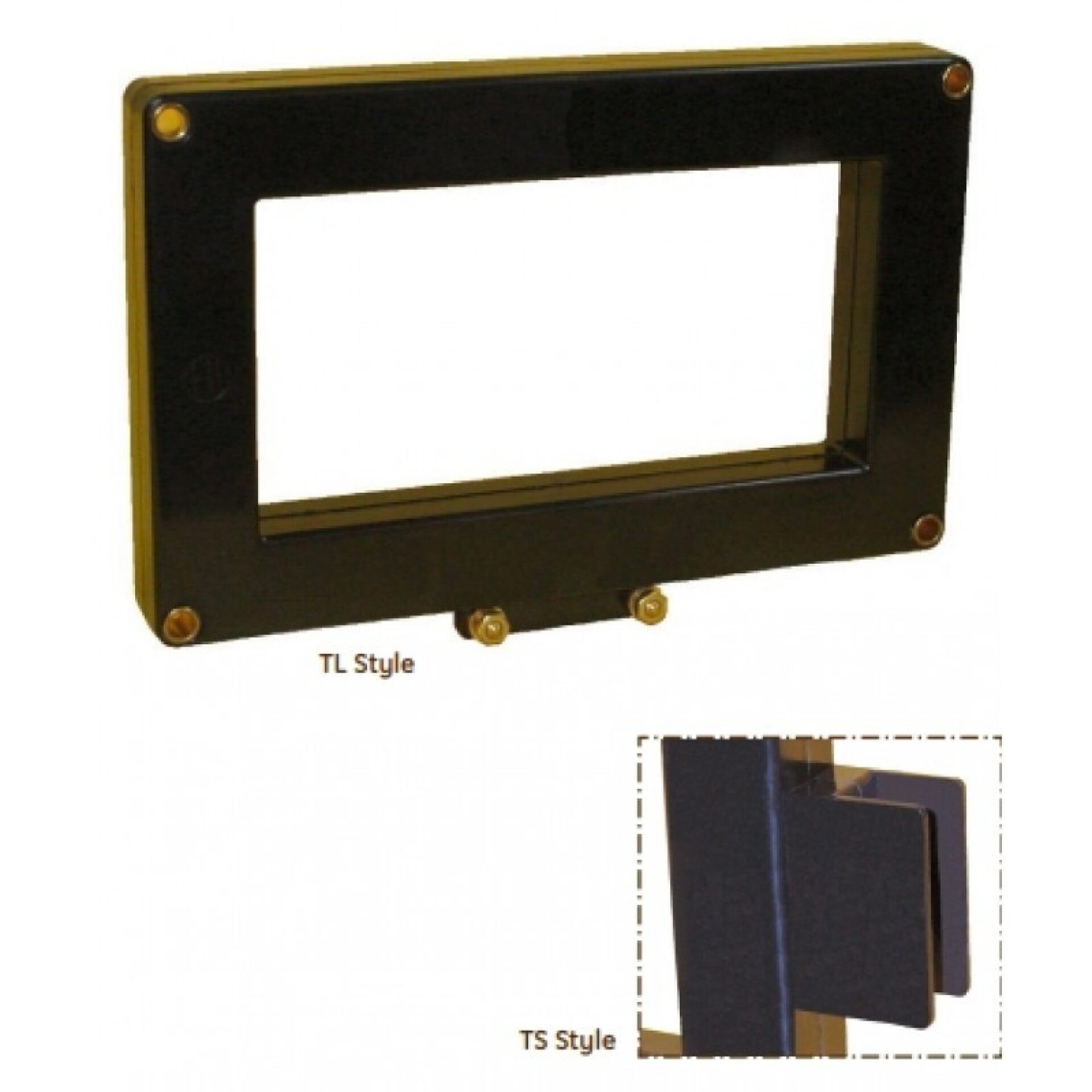

Model 568 Current Transformer
Introducing the Model 568 Current Transformer, a high-quality and reliable solution, now available through Spectrum Industries. This advanced current transformer is engineered to deliver precise current measurements across a wide range of electrical applications, ensuring accurate data collection and system monitoring. Built with durability and performance in mind, the Model 568 is ideal for both industrial and commercial environments where dependable electrical measurement is essential.
Overview
Introducing the Model 568 Current Transformer, a high-quality and reliable solution, now available through Spectrum Industries. This advanced current transformer is engineered to deliver precise current measurements across a wide range of electrical applications, ensuring accurate data collection and system monitoring. Built with durability and performance in mind, the Model 568 is ideal for both industrial and commercial environments where dependable electrical measurement is essential.
a global leader in electrical equipment and technology, this current transformer benefits from decades of expertise and innovative engineering. The Model 568 features robust construction and meticulous calibration, providing users with confidence in its accuracy and longevity. Its design emphasizes safety, ease of installation, and compatibility with various electrical systems, making it a versatile choice for engineers and technicians alike.
Spectrum Industries is proud to offer the Model 568 Current Transformer, a product that exemplifies quality and precision. Whether used for power monitoring, load measurement, or system protection, this transformer delivers consistent performance and reliable readings. With its proven design and ’s trusted manufacturing standards, the Model 568 is an excellent investment for those seeking dependable current measurement solutions to optimize their electrical systems.
Request a Quote for Model 568 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Size
- 7.45 in x 3.75 in
- Insulation Voltage Class
- 600 V
- TL Style Terminals
- Brass studs No. 10-32 with one flatwasher, lockwasher and regular nut
- TS Style Terminals
- Brass screws No. 10-32 with one flatwasher, lockwasher and regular nut
- Catalog Number Ordering Note
- Prefix catalog number with model designation, e.g. 568TL-201 or 568TS-201
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 400 | 5 | 400:5 | 1.2B0.2 | 1.33 | 1 | 0.078 |
| 500 | 5 | 500:5 | 0.6B0.1 | 1.33 | 1 | 0.098 |
| 600 | 5 | 600:5 | 0.6B0.2 | 1.33 | 1 | 0.117 |
| 750 | 5 | 750:5 | 0.6B0.2 | 1.33 | 1 | 0.147 |
| 800 | 5 | 800:5 | 0.6B0.2 | 1.33 | 1 | 0.157 |
| 1000 | 5 | 1000:5 | 0.3B0.2 | 1.33 | 1 | 0.196 |
| 1200 | 5 | 1200:5 | 0.3B0.2 | 1.33 | 1 | 0.235 |
| 1500 | 5 | 1500:5 | 0.3B0.5 | 1.33 | 1 | 0.294 |
| 1600 | 5 | 1600:5 | 0.3B0.5 | 1.33 | 1 | 0.313 |
| 2000 | 5 | 2000:5 | 0.3B0.5 | 1.33 | 1 | 0.417 |
| 2500 | 5 | 2500:5 | 0.3B0.9 | 1.33 | 1 | 0.419 |
| 3000 | 5 | 3000:5 | 0.3B0.9 | 1.33 | 1 | 0.625 |
| 3200 | 5 | 3200:5 | 0.3B0.9 | 1.33 | 1 | 0.536 |
| 4000 | 5 | 4000:5 | 0.3B0.9 | 1.33 | 1 | 0.834 |
| 5000 | 5 | 5000:5 | 0.3B0.9 | 1.33 | 1 | 0.872 |
| 400 | 5 | 400:5 | 1.2B0.2 | 1.33 | 1 | 0.078 |
| 500 | 5 | 500:5 | 0.6B0.1 | 1.33 | 1 | 0.098 |
| 600 | 5 | 600:5 | 0.6B0.2 | 1.33 | 1 | 0.117 |
| 750 | 5 | 750:5 | 0.6B0.2 | 1.33 | 1 | 0.147 |
| 800 | 5 | 800:5 | 0.6B0.2 | 1.33 | 1 | 0.157 |
| 1000 | 5 | 1000:5 | 0.3B0.2 | 1.33 | 1 | 0.196 |
| 1200 | 5 | 1200:5 | 0.3B0.2 | 1.33 | 1 | 0.235 |
| 1500 | 5 | 1500:5 | 0.3B0.5 | 1.33 | 1 | 0.294 |
| 1600 | 5 | 1600:5 | 0.3B0.5 | 1.33 | 1 | 0.313 |
| 2000 | 5 | 2000:5 | 0.3B0.5 | 1.33 | 1 | 0.417 |
| 2500 | 5 | 2500:5 | 0.3B0.9 | 1.33 | 1 | 0.419 |
| 3000 | 5 | 3000:5 | 0.3B0.9 | 1.33 | 1 | 0.625 |
| 3200 | 5 | 3200:5 | 0.3B0.9 | 1.33 | 1 | 0.536 |
| 4000 | 5 | 4000:5 | 0.3B0.9 | 1.33 | 1 | 0.834 |
| 5000 | 5 | 5000:5 | 0.3B0.9 | 1.33 | 1 | 0.872 |
