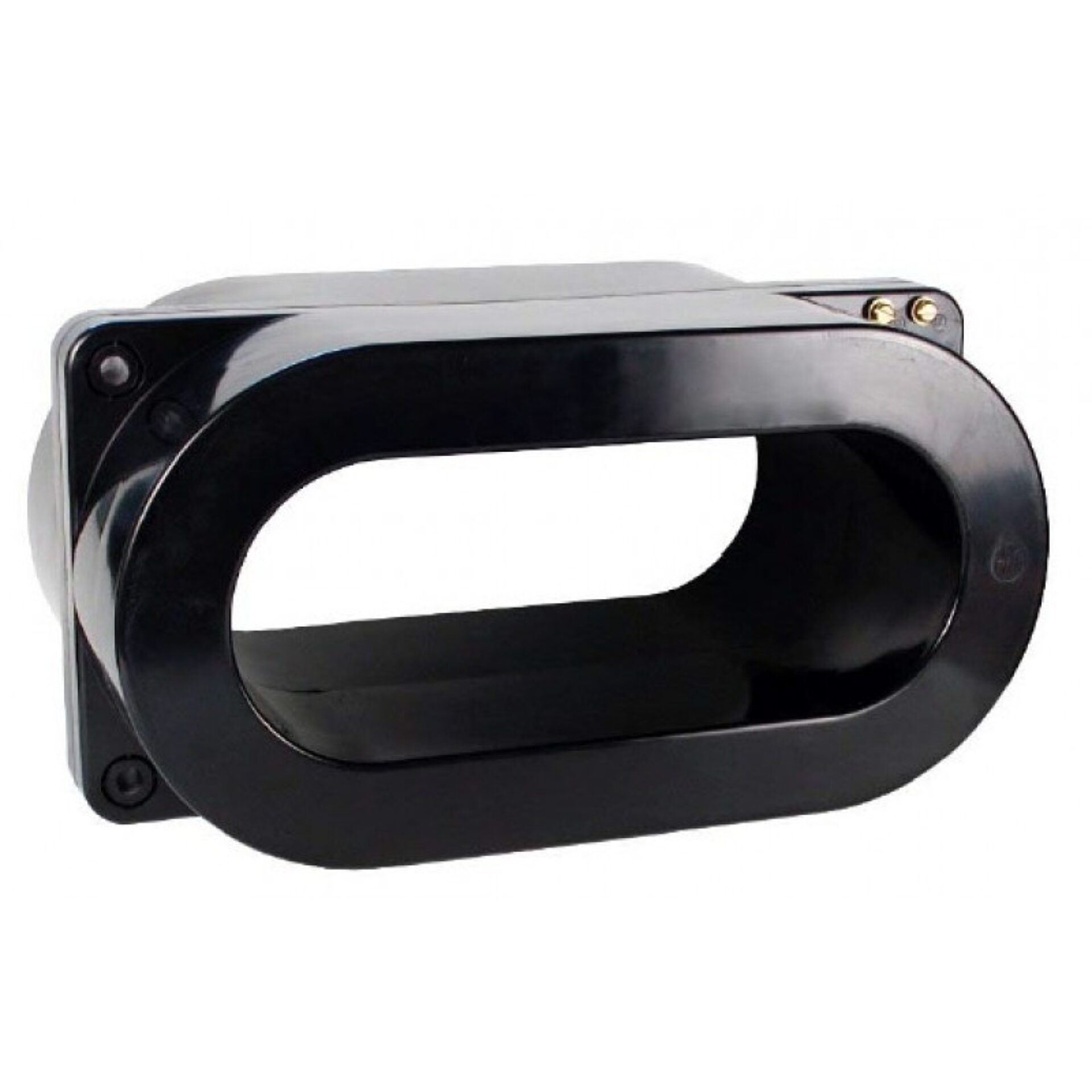

Model 590 Current Transformer
Introducing the Model 590 Current Transformer, a precision-engineered device, distributed by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance, this current transformer is an essential component for electrical testing, metering, and protection applications. With its robust construction and advanced design, the Model 590 ensures consistent and precise readings, making it an ideal choice for professionals seeking dependable instrumentation.
Overview
Introducing the Model 590 Current Transformer, a precision-engineered device, distributed by Spectrum Industries. Designed to deliver accurate current measurement and reliable performance, this current transformer is an essential component for electrical testing, metering, and protection applications. With its robust construction and advanced design, the Model 590 ensures consistent and precise readings, making it an ideal choice for professionals seeking dependable instrumentation.
a globally recognized leader in electrical and electronic solutions, the Model 590 embodies the company's commitment to quality and innovation. Spectrum Industries, serving as the trusted distributor, offers this high-performance current transformer to meet the demanding needs of electrical engineers, technicians, and industrial facilities. The product's design emphasizes durability, ease of installation, and compatibility with a wide range of electrical systems, ensuring seamless integration into existing setups.
Whether used for laboratory testing, power monitoring, or protective relays, the Model 590 provides accurate current transformation across various voltage levels. Its reliable operation helps in maintaining system safety, optimizing performance, and ensuring compliance with industry standards. With Spectrum Industries' dedication to customer satisfaction and our reputation for excellence, this current transformer is a valuable addition to any electrical infrastructure aiming for precision and dependability.
Request a Quote for Model 590 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 70 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Class
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher, accessible from both sides
- Window Size
- 4.28" x 11.28"
- Excitation Data
- Available upon request
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 2 | 2 |
| 75 | 5 | 75:5 | — | 2 | 2 |
| 100 | 5 | 100:5 | — | 2 | 2 |
| 150 | 5 | 150:5 | C50 | 2 | 2 |
| 200 | 5 | 200:5 | — | 2 | 2 |
| 300 | 5 | 300:5 | C100 | 2 | 2 |
| 400 | 5 | 400:5 | — | 2 | 2 |
| 500 | 5 | 500:5 | — | 2 | 2 |
