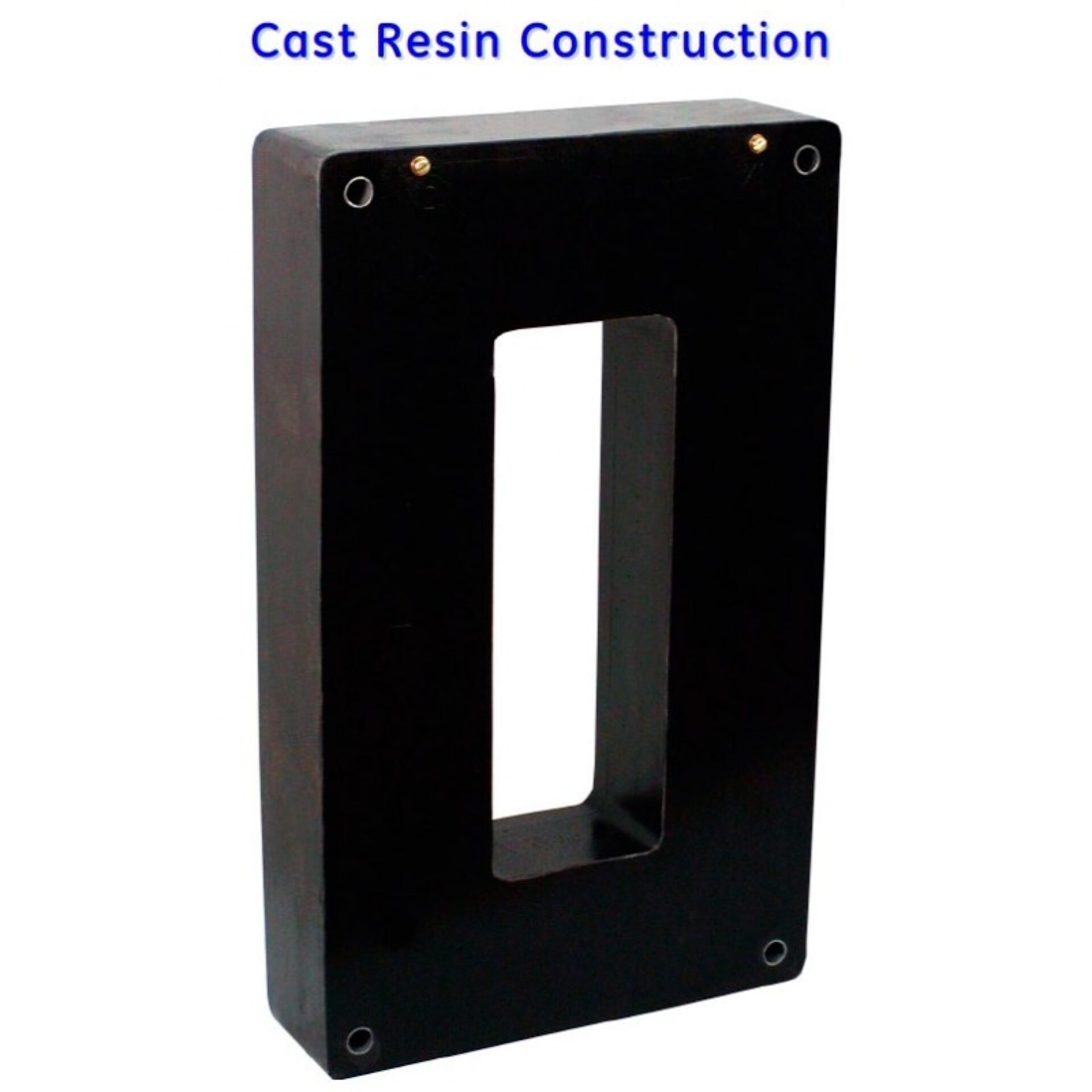

Model 592 Current Transformer
Introducing the Model 592 Current Transformer, a high-performance measurement tool and distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in industrial, commercial, or utility settings, the Model 592 ensures consistent performance and dependable readings, making it a valuable addition to any electrical testing and monitoring toolkit.
Overview
Introducing the Model 592 Current Transformer, a high-performance measurement tool and distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in industrial, commercial, or utility settings, the Model 592 ensures consistent performance and dependable readings, making it a valuable addition to any electrical testing and monitoring toolkit.
a globally recognized leader in electrical and electronic equipment, this current transformer benefits from advanced engineering and rigorous quality standards. The Model 592 is engineered to provide precise current transformation, facilitating accurate measurement and analysis of electrical systems. Its robust construction and dependable performance make it suitable for both routine testing and complex system diagnostics, helping technicians and engineers ensure safety, efficiency, and compliance.
Spectrum Industries proudly offers the Model 592 Current Transformer, combining ’s innovative technology with Spectrum’s commitment to quality customer service. This product is designed to meet the demanding needs of professionals who require reliable, accurate, and durable measurement solutions. Whether for new installations, maintenance, or troubleshooting, the Model 592 is a trusted choice for ensuring electrical systems operate smoothly and safely.
Request a Quote for Model 592 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 150 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Continuous Thermal Current Rating Factor
- 2.0 at 30°C amb., 1.5 at 55°C amb.
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Window Size
- 5.00" x 14.00"
- Construction
- Cast Resin Construction
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Secondary Resistance |
|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 0.014 |
| 100 | 5 | 100:5 | — | 0.028 |
| 200 | 5 | 200:5 | — | 0.056 |
| 300 | 5 | 300:5 | C100 | 0.097 |
| 400 | 5 | 400:5 | — | 0.123 |
| 500 | 5 | 500:5 | — | 0.161 |
| 600 | 5 | 600:5 | C200 | 0.193 |
