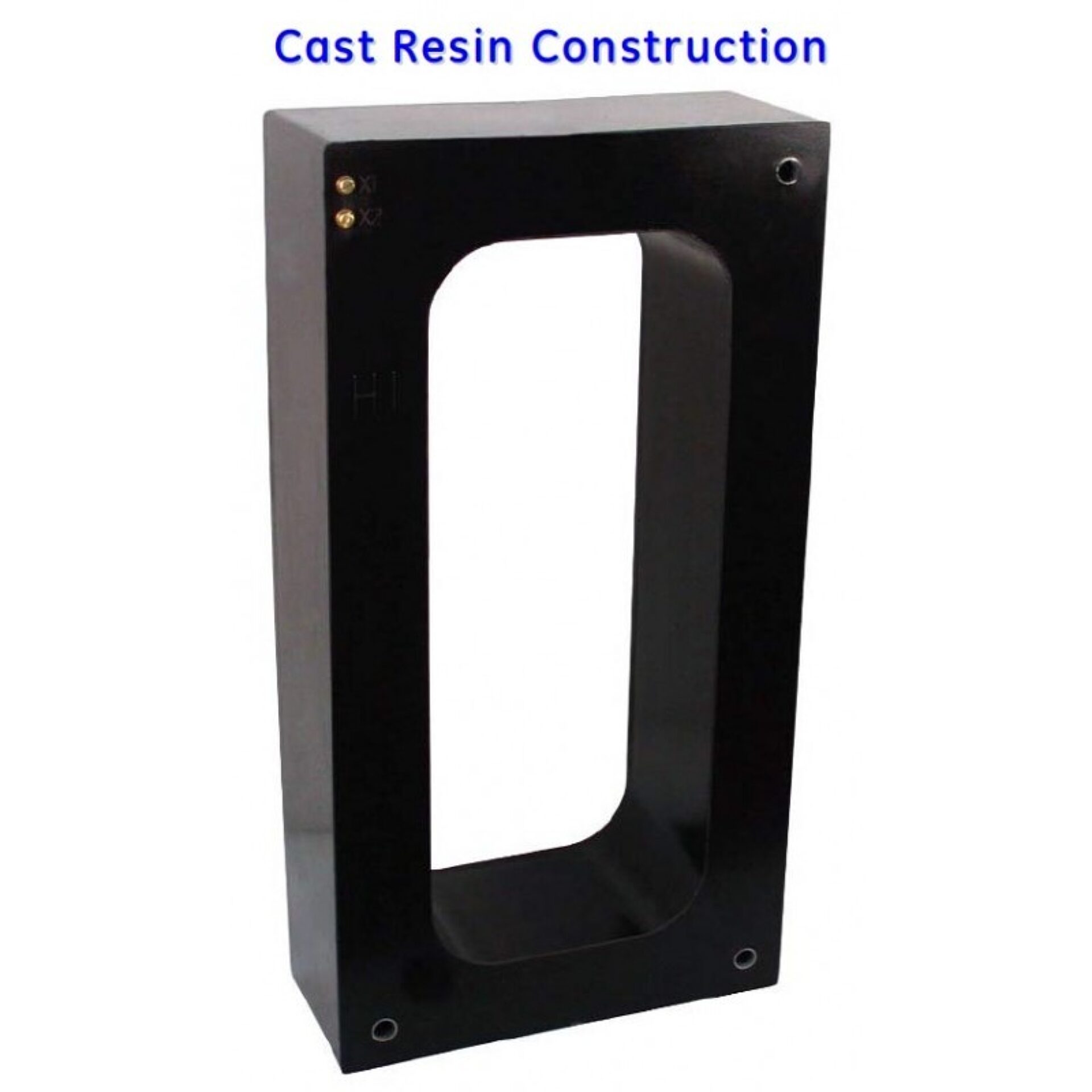

Model 594 Current Transformer
Introducing the Model 594 Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and produced by Spectrum Industries, this current transformer exemplifies precision engineering and durability, ensuring accurate readings across a wide range of electrical systems. Whether used in industrial, commercial, or utility settings, the Model 594 provides consistent performance, helping professionals maintain system integrity and safety.
Overview
Introducing the Model 594 Current Transformer, a high-quality and reliable solution designed to meet the demanding needs of electrical measurement and monitoring applications. and produced by Spectrum Industries, this current transformer exemplifies precision engineering and durability, ensuring accurate readings across a wide range of electrical systems. Whether used in industrial, commercial, or utility settings, the Model 594 provides consistent performance, helping professionals maintain system integrity and safety.
This current transformer is engineered with robust construction and advanced features that facilitate easy installation and maintenance. Its design ensures minimal insertion loss and excellent accuracy, making it an ideal choice for measuring current in high-voltage environments. The Model 594's compatibility with various metering and protection devices allows for seamless integration into existing systems, providing reliable data essential for operational decision-making and troubleshooting.
Spectrum Industries, renowned for their commitment to quality and innovation, produces this transformer under the trusted standards of. The collaboration results in a product that combines ’s technological expertise with Spectrum Industries’ dedication to manufacturing excellence. Whether you need precise current measurements or dependable system monitoring, the Model 594 Current Transformer offers a dependable and efficient solution tailored to meet your specific requirements.
Request a Quote for Model 594 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 150 lbs
- Application
- Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Rating
- 600 Volts, 10 kV BIL full wave
- Continuous Thermal Current Rating Factor
- 2.0 at 30 C amb., 2.0 at 55 C amb.
- Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
- Window Size
- 8.06" x 20.06"
- Construction
- Cast Resin
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class |
|---|---|---|---|
| 50 | 5 | 50:5 | C10 |
| 75 | 5 | 75:5 | C20 |
| 100 | 5 | 100:5 | — |
| 150 | 5 | 150:5 | C50 |
| 200 | 5 | 200:5 | C50 |
| 300 | 5 | 300:5 | C100 |
| 400 | 5 | 400:5 | C100 |
| 500 | 5 | 500:5 | C200 |
