Model 5A Transformer
Introducing the Model 5A Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to meet the rigorous demands of industrial and commercial applications, this transformer offers reliable performance, durability, and precise voltage regulation. Whether you're upgrading existing systems or designing new electrical setups, the Model 5A provides a trusted solution that ensures safety and efficiency.
Overview
Introducing the Model 5A Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to meet the rigorous demands of industrial and commercial applications, this transformer offers reliable performance, durability, and precise voltage regulation. Whether you're upgrading existing systems or designing new electrical setups, the Model 5A provides a trusted solution that ensures safety and efficiency.
a globally recognized leader in electrical engineering and innovation, this transformer embodies advanced technology and engineering excellence. Spectrum Industries is proud to distribute this product, ensuring that customers receive a component built to the highest standards of quality and reliability. The Model 5A Transformer is engineered to handle a variety of voltage and power requirements, making it a versatile choice for a wide range of applications.
Built with durable materials and precision craftsmanship, the Model 5A offers long-lasting performance even in demanding environments. Its compact design allows for easy installation and integration into existing systems, while its robust construction guarantees stability and safety during operation. Whether used in industrial machinery, power distribution, or other electrical systems, this transformer provides consistent, efficient power transfer, helping to optimize overall system performance. Trust the Model 5A Transformer by, supplied by Spectrum Industries, for your electrical needs and experience the difference that quality and innovation can make.
Request a Quote for Model 5A Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1 lbs
- Application
- Metering
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 1.56"
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs #8-32 with flatwasher, lockwasher and nut
- Flexible Leads
- UL 1015, 105°C, CSA approved, #16 AWG, 24" long
- Style Options

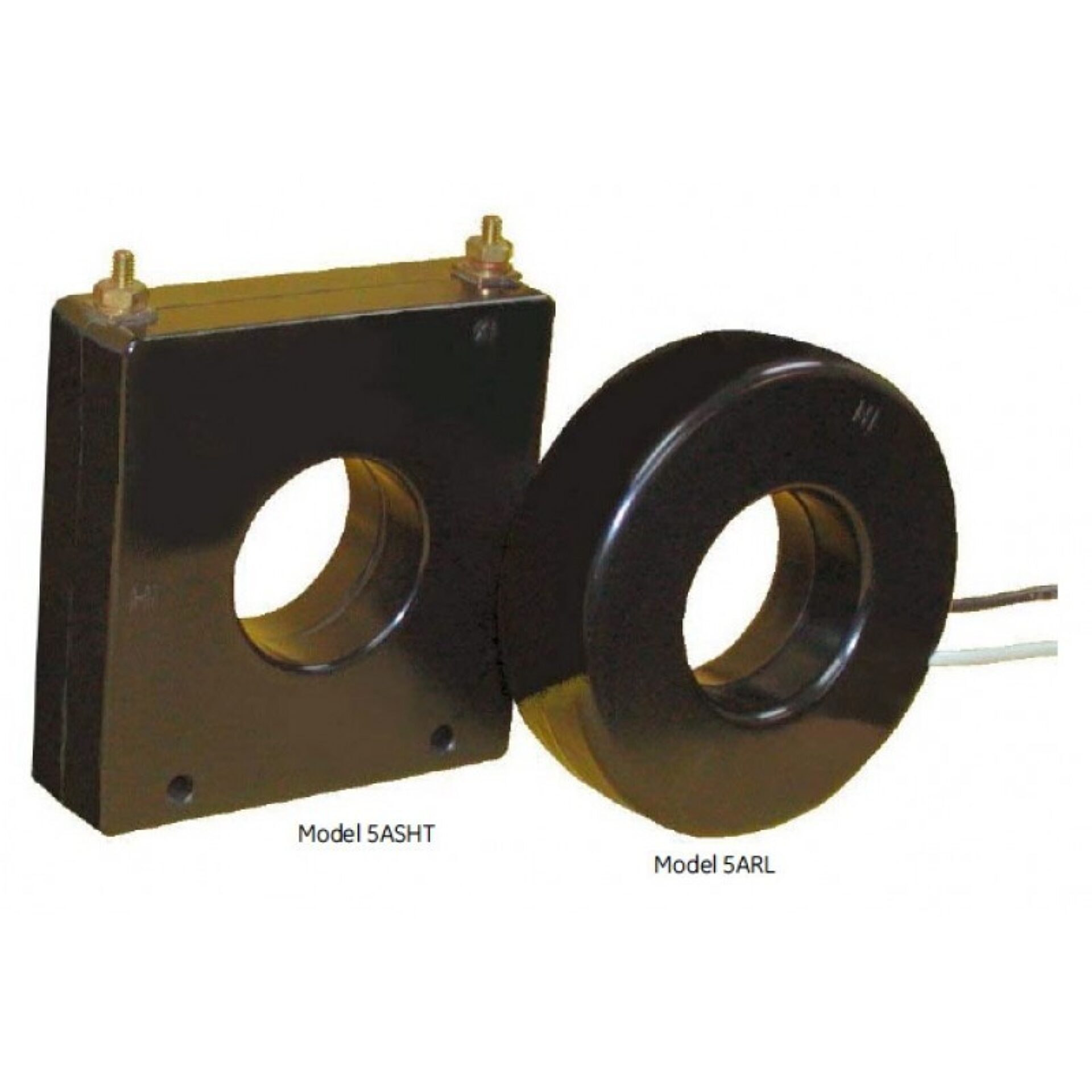

- 5ARL, 5ASHT, 5ASFT (also 5ASHL / 5ASFL with leads)
- Mounting Kit
- 0221B00180 (order separately for Model 5ASHT)
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | 2 | 2 | 0.009 |
| 75 | 5 | 75:5 | 2 | 2 | 0.01 |
| 100 | 5 | 100:5 | 2 | 2 | 0.012 |
| 150 | 5 | 150:5 | 2 | 2 | 0.019 |
| 200 | 5 | 200:5 | 2 | 2 | 0.024 |
| 250 | 5 | 250:5 | 2 | 1.5 | 0.033 |
| 300 | 5 | 300:5 | 2 | 1.5 | 0.04 |
| 400 | 5 | 400:5 | 1.5 | 1 | 0.091 |
| 500 | 5 | 500:5 | 1.33 | 0.8 | 0.105 |
| 600 | 5 | 600:5 | 1 | 0.8 | 0.158 |
| 750 | 5 | 750:5 | 1 | 0.8 | 0.147 |
| 800 | 5 | 800:5 | 1 | 0.8 | 0.156 |
| 1000 | 5 | 1000:5 | 1 | 0.8 | 0.196 |
| 1200 | 5 | 1200:5 | 1 | 0.6 | 0.291 |
