Model 6 Transformer
Introducing the Model 6 Transformer, a high-performance power solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this transformer is an essential component for a wide range of industrial and commercial applications. Whether you are upgrading existing systems or deploying new infrastructure, the Model 6 offers the robustness and efficiency needed to ensure seamless power distribution.
Overview
Introducing the Model 6 Transformer, a high-performance power solution, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this transformer is an essential component for a wide range of industrial and commercial applications. Whether you are upgrading existing systems or deploying new infrastructure, the Model 6 offers the robustness and efficiency needed to ensure seamless power distribution.
a globally recognized leader in electrical and electronic manufacturing, this transformer embodies decades of expertise and innovation. It features advanced construction materials and cutting-edge technology to deliver consistent performance under demanding conditions. The Model 6 is built to meet stringent safety standards and provide long-lasting durability, making it a dependable choice for professionals seeking quality and peace of mind.
Spectrum Industries takes pride in offering products that combine technical excellence with user-friendly design. The Model 6 Transformer is no exception, providing easy installation and maintenance, along with superior electrical performance. Whether used in industrial plants, commercial buildings, or utility projects, this transformer guarantees efficient power transfer and minimized energy loss. Trust the Model 6 Transformer by, supplied by Spectrum Industries, to deliver exceptional performance and reliability for your power needs.
Request a Quote for Model 6 Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.2 lbs
- Application
- Metering
- Standards
- UL, CSA
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Window Diameter
- 2.06 in (Model 6SHT)
- Lead Wire
- UL 1015, 105 C, #16 AWG, 24 in long
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher and nut

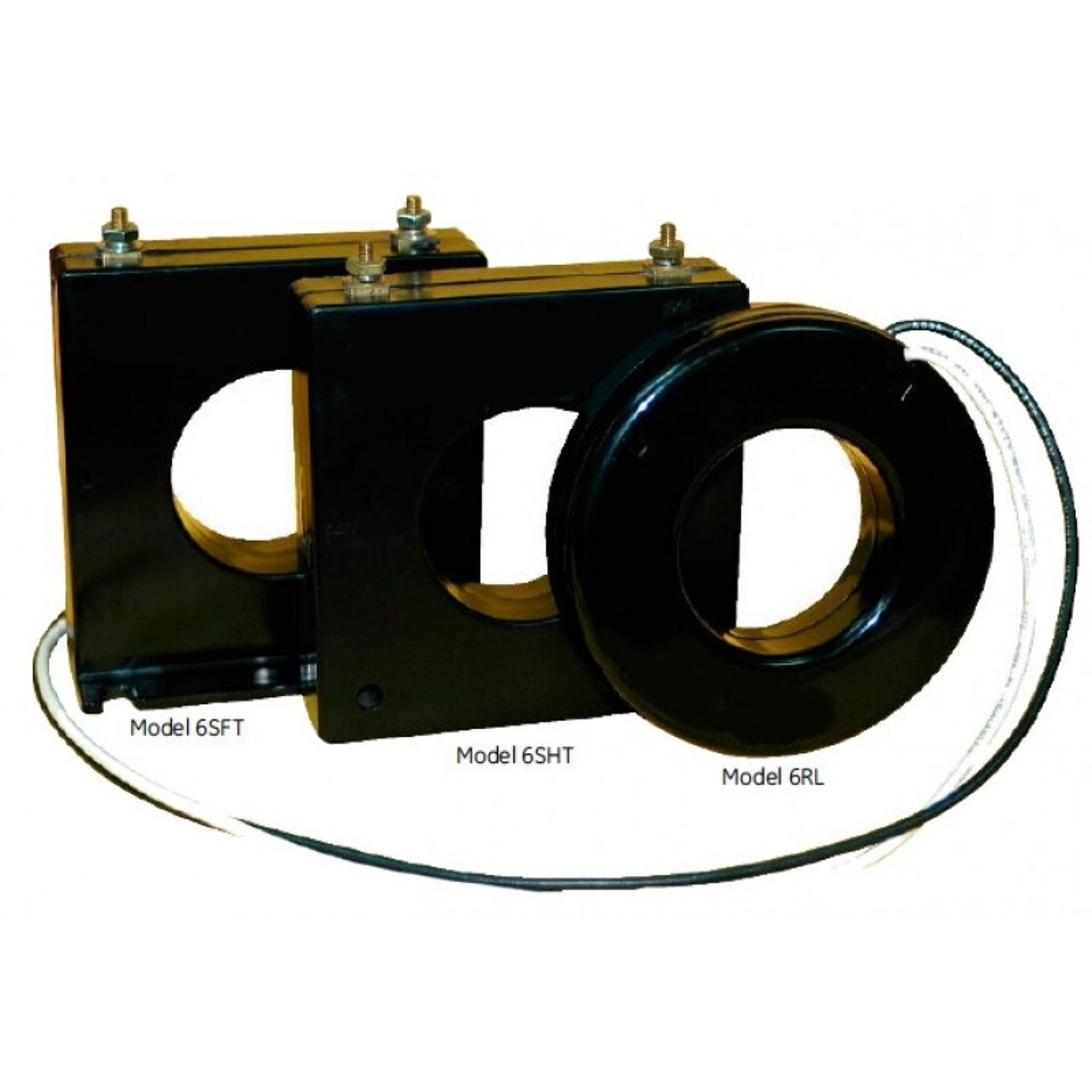

- Case Styles
- SFT, SHT, RL (SFT/SHT also available as SFL/SHL with leads)
- Mounting Bracket Kit
- 0221B00181 (for Model 6SHT when required)
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 150 | 5 | 150:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
