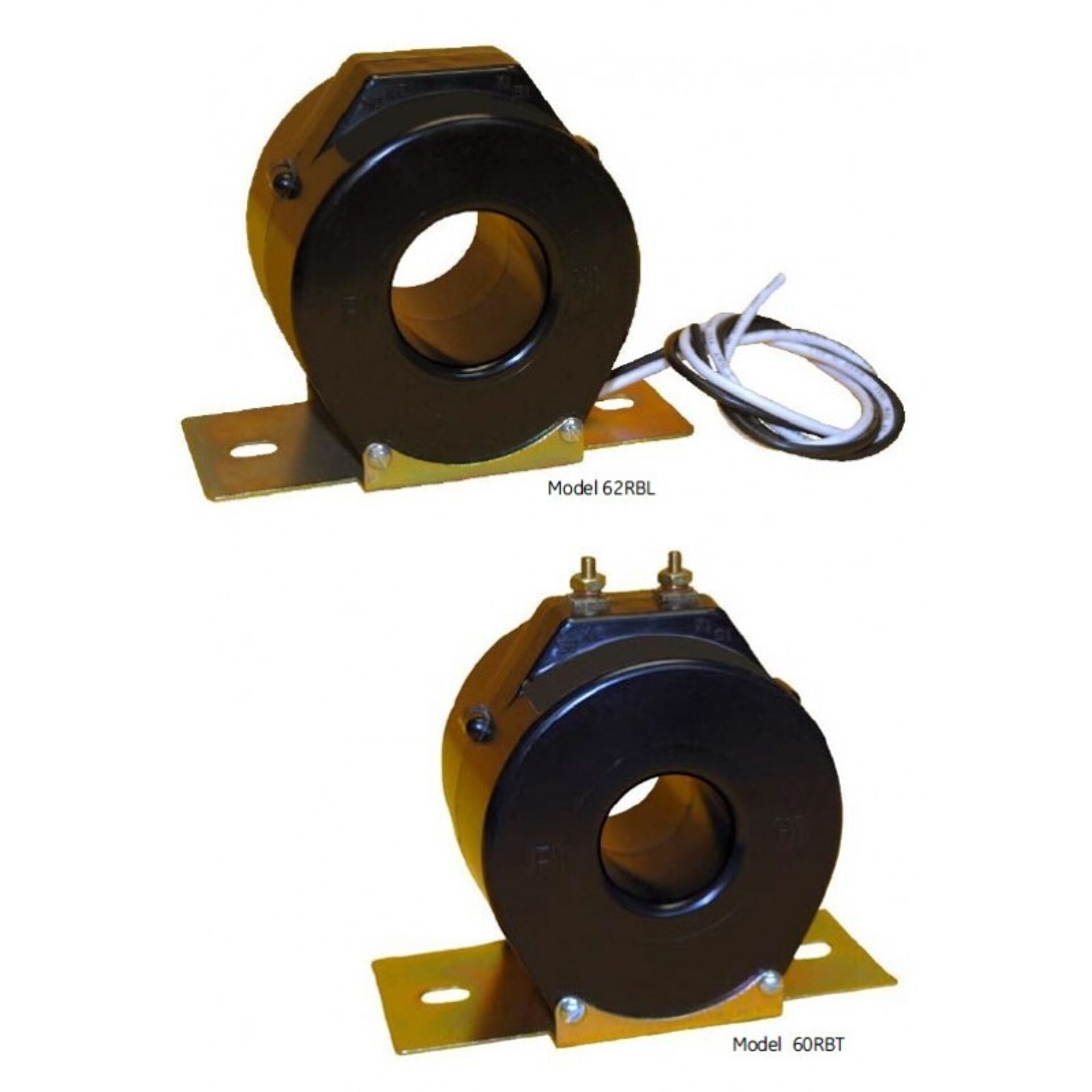

Model 60 Current Transformer
Introducing the Model 60 Current Transformer, a high-quality electrical component meticulously designed and. Crafted with precision and engineered for reliability, this current transformer is an essential tool for accurately measuring alternating current in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 60 provides dependable performance, ensuring that your electrical measurements are both precise and consistent.
Overview
Introducing the Model 60 Current Transformer, a high-quality electrical component meticulously designed and. Crafted with precision and engineered for reliability, this current transformer is an essential tool for accurately measuring alternating current in various electrical systems. Whether used in industrial, commercial, or utility applications, the Model 60 provides dependable performance, ensuring that your electrical measurements are both precise and consistent.
a globally renowned leader in electrical and electronic manufacturing, the Model 60 Current Transformer benefits from decades of expertise and innovation. Spectrum Industries has partnered with to bring this advanced product to market, combining ’s technological excellence with Spectrum’s commitment to quality and customer satisfaction. The transformer’s robust construction and thoughtful design make it suitable for demanding environments, providing durability and long-term stability.
The Model 60 features a compact form factor while maintaining high accuracy, making it an ideal choice for integration into existing electrical systems. Its easy installation process and reliable operation help streamline maintenance and reduce downtime. Whether for new installations or upgrades, this current transformer by from Spectrum Industries offers a dependable solution to meet your current measurement needs, ensuring safety, efficiency, and performance in your electrical infrastructure.
Request a Quote for Model 60 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 5.25 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 0.94 in
- Insulation Level
- 600 V, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with flatwasher, lockwasher, and regular nut
- Flexible Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
- Catalog Number Prefix
- 60RBT / 60RBL
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | 2 | 2 | 0.018 |
| 60 | 5 | 60:5 | 2 | 2 | 0.021 |
| 75 | 5 | 75:5 | 2 | 2 | 0.027 |
| 80 | 5 | 80:5 | 2 | 2 | 0.028 |
| 100 | 5 | 100:5 | 2 | 2 | 0.037 |
| 120 | 5 | 120:5 | 2 | 2 | 0.043 |
| 125 | 5 | 125:5 | 2 | 2 | 0.044 |
| 150 | 5 | 150:5 | 2 | 1.5 | 0.055 |
| 200 | 5 | 200:5 | 2 | 1.5 | 0.073 |
