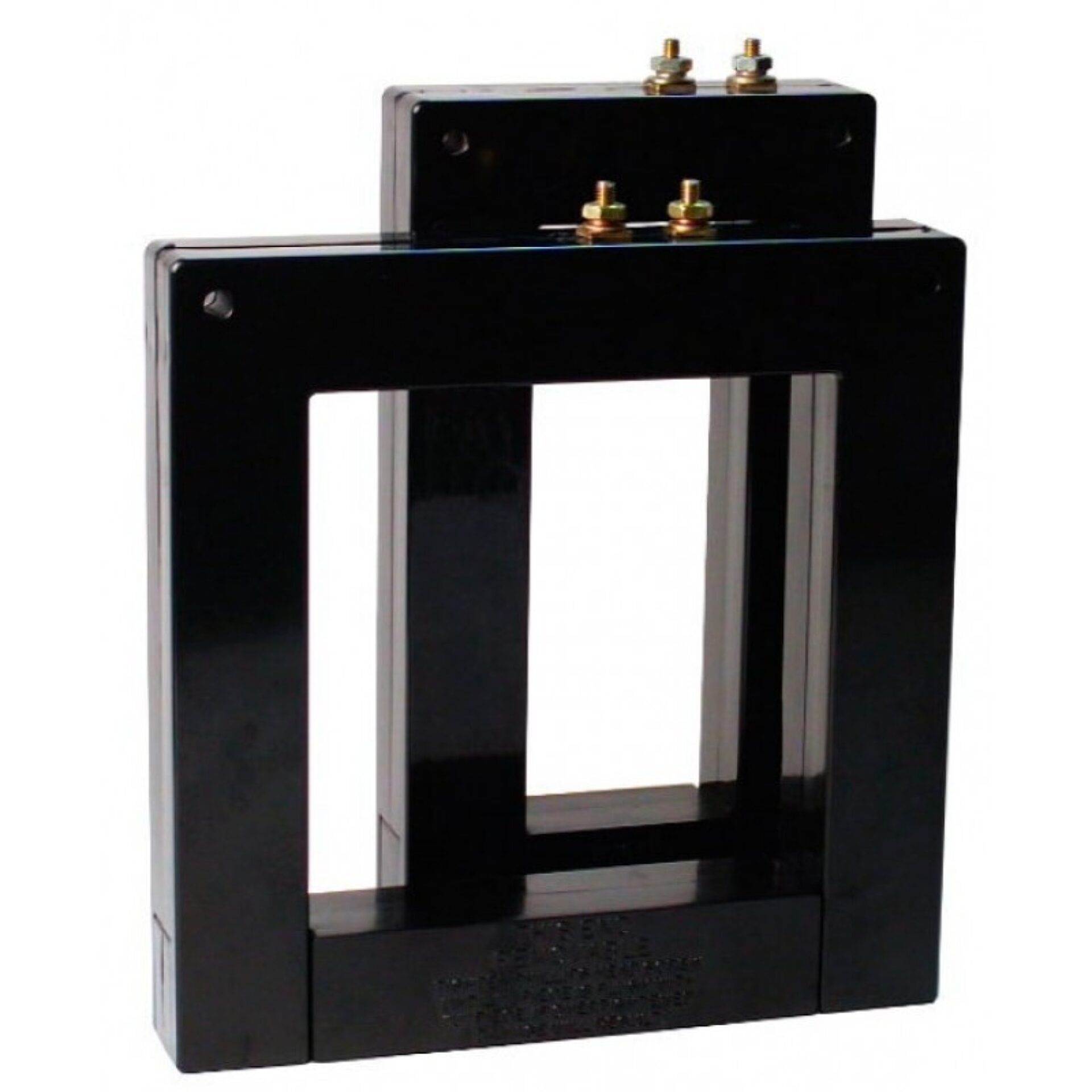

Model 600 Split Core Current Transformer
Introducing the Model 600 Split Core Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and produced by Spectrum Industries, this current transformer offers reliable performance, precision, and ease of installation, making it an ideal choice for both industrial and commercial environments.
Overview
Introducing the Model 600 Split Core Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and produced by Spectrum Industries, this current transformer offers reliable performance, precision, and ease of installation, making it an ideal choice for both industrial and commercial environments.
The Model 600 is engineered with a split core design, allowing for quick and effortless installation without the need to disconnect wiring or de-energize circuits. This feature significantly reduces downtime and simplifies maintenance, making it especially valuable in situations where continuous operation is critical. Its robust construction ensures durability and long-term stability, even in challenging conditions.
Designed to accurately measure current in AC circuits, the Model 600 provides precise readings essential for effective energy management, system troubleshooting, and ensuring safety compliance. Spectrum Industries, a trusted name in electrical measurement solutions, has produced this transformer with attention to detail and quality standards that meet or exceed industry expectations. Whether used in power distribution, monitoring systems, or energy audits, the Model 600 split core current transformer delivers dependable performance and ease of use.
Overall, this product exemplifies Spectrum Industries’ commitment to providing innovative, reliable, and user-friendly electrical measurement tools, backed by ’s reputation for excellence in electrical manufacturing.
Request a Quote for Model 600 Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering, Energy Management
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Class
- 600 Volts, 10 kV BIL full wave
- Continuous Thermal Current Rating Factor
- 1.33 at 30°C amb., 1.0 at 55°C amb.
- Terminals
- 8-32 brass studs with one flatwasher, lockwasher, and regular nut
- Flexible Leads (optional)
- UL 1015, 105°C, CSA approved, #16 AWG, 24” long
- Window Size
- 2.00” x 5.50”, 4.50” x 4.50”
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|---|
| 400 | 5 | 400:5 | — |
| 500 | 5 | 500:5 | — |
| 600 | 5 | 600:5 | — |
| 800 | 5 | 800:5 | 1.2B0.2 |
| 1000 | 5 | 1,000:5 | 1.2B0.2 |
| 1200 | 5 | 1,200:5 | 0.6B0.1 |
| 1500 | 5 | 1,500:5 | 0.6B0.2 |
| 1600 | 5 | 1,600:5 | 0.6B0.2 |
| 2000 | 5 | 2,000:5 | 0.6B0.5 |
