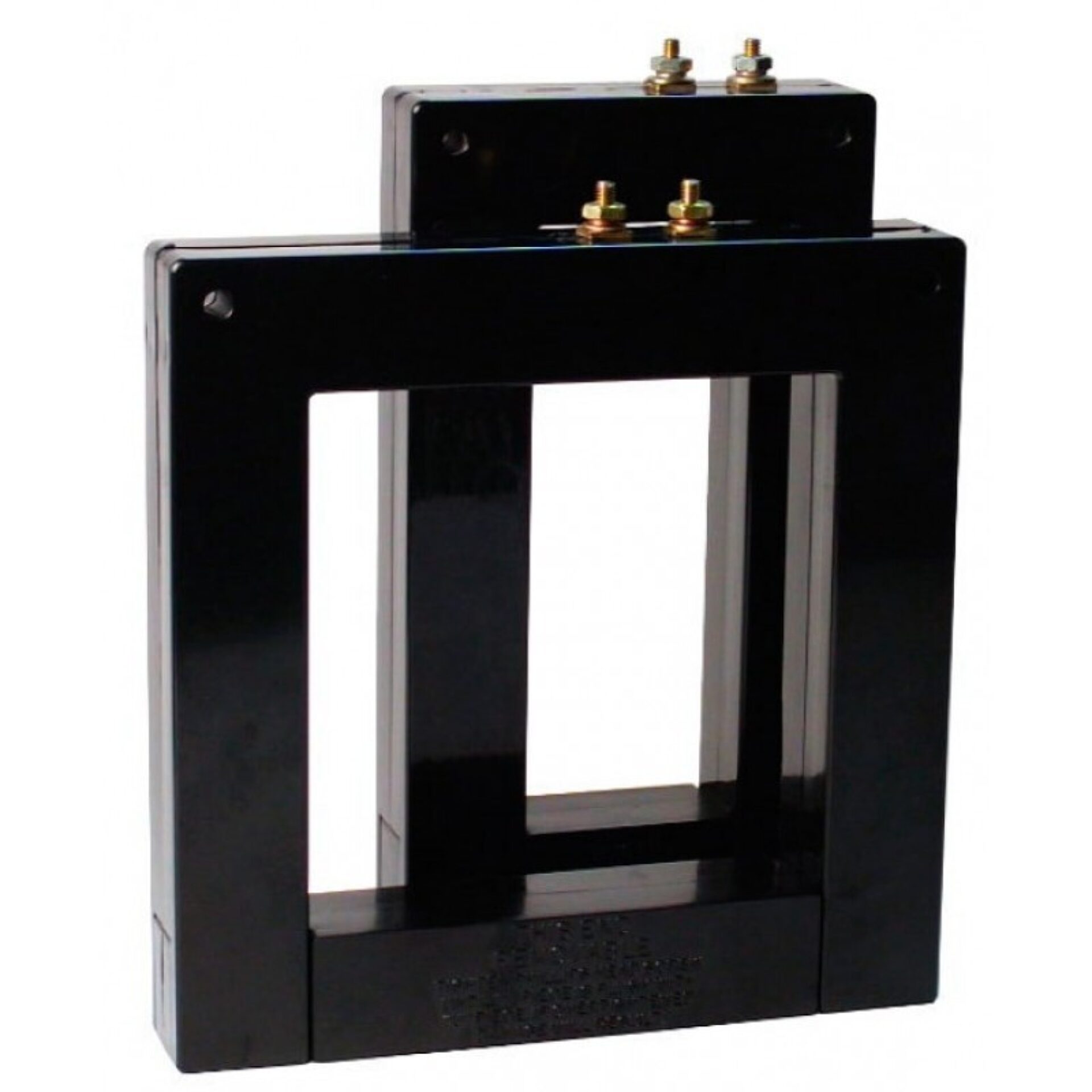

Model 601 Split Core Current Transformer
Introducing the Model 601 Split Core Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this innovative device offers reliable performance, ease of installation, and exceptional accuracy. Whether used in industrial, commercial, or residential settings, the Model 601 provides a seamless way to monitor electrical currents without the need to disconnect or de-energize circuits.
Overview
Introducing the Model 601 Split Core Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this innovative device offers reliable performance, ease of installation, and exceptional accuracy. Whether used in industrial, commercial, or residential settings, the Model 601 provides a seamless way to monitor electrical currents without the need to disconnect or de-energize circuits.
The Model 601 Split Core Current Transformer is engineered with precision and durability in mind. Its split-core design allows for quick and effortless installation around existing conductors, making it an ideal choice for retrofit applications or situations where circuit interruption is undesirable. The product features a robust construction that ensures consistent performance over time, even in challenging environments. With its wide current range and accurate measurement capabilities, this transformer is well-suited for use in energy management systems, power monitoring, and fault detection.
a trusted leader in electrical and electronic manufacturing, the Model 601 embodies quality and innovation. Spectrum Industries ensures that this product reaches customers with the highest standards of reliability and customer support. Whether you're upgrading your current monitoring setup or implementing a new system, the Model 601 Split Core Current Transformer is a dependable choice that delivers precise, real-time insights into your electrical systems.
Request a Quote for Model 601 Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Energy Management
- Standards
- ANSI/IEEE C57.13, IEC 44-1
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Continuous Thermal Current Rating Factor
- 1.33 at 30 C ambient, 1.0 at 55 C ambient
- Terminals
- 8-32 brass studs with one flatwasher, lockwasher, and regular nut
- Flexible Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 inch long, available
- Window Size
- 2.00 in x 5.50 in, 4.50 in x 4.50 in
- Core Type
- Split Core
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 400 | 5 | 400:5 | — | 1.33 | 1 |
| 500 | 5 | 500:5 | — | 1.33 | 1 |
| 600 | 5 | 600:5 | — | 1.33 | 1 |
| 800 | 5 | 800:5 | 1.2B0.1 | 1.33 | 1 |
| 1000 | 5 | 1000:5 | 1.2B0.2 | 1.33 | 1 |
| 1200 | 5 | 1200:5 | 1.2B0.2 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | 1.2B0.5 | 1.33 | 1 |
| 1600 | 5 | 1600:5 | 1.2B0.5 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | 0.6B0.2 | 1.33 | 1 |
