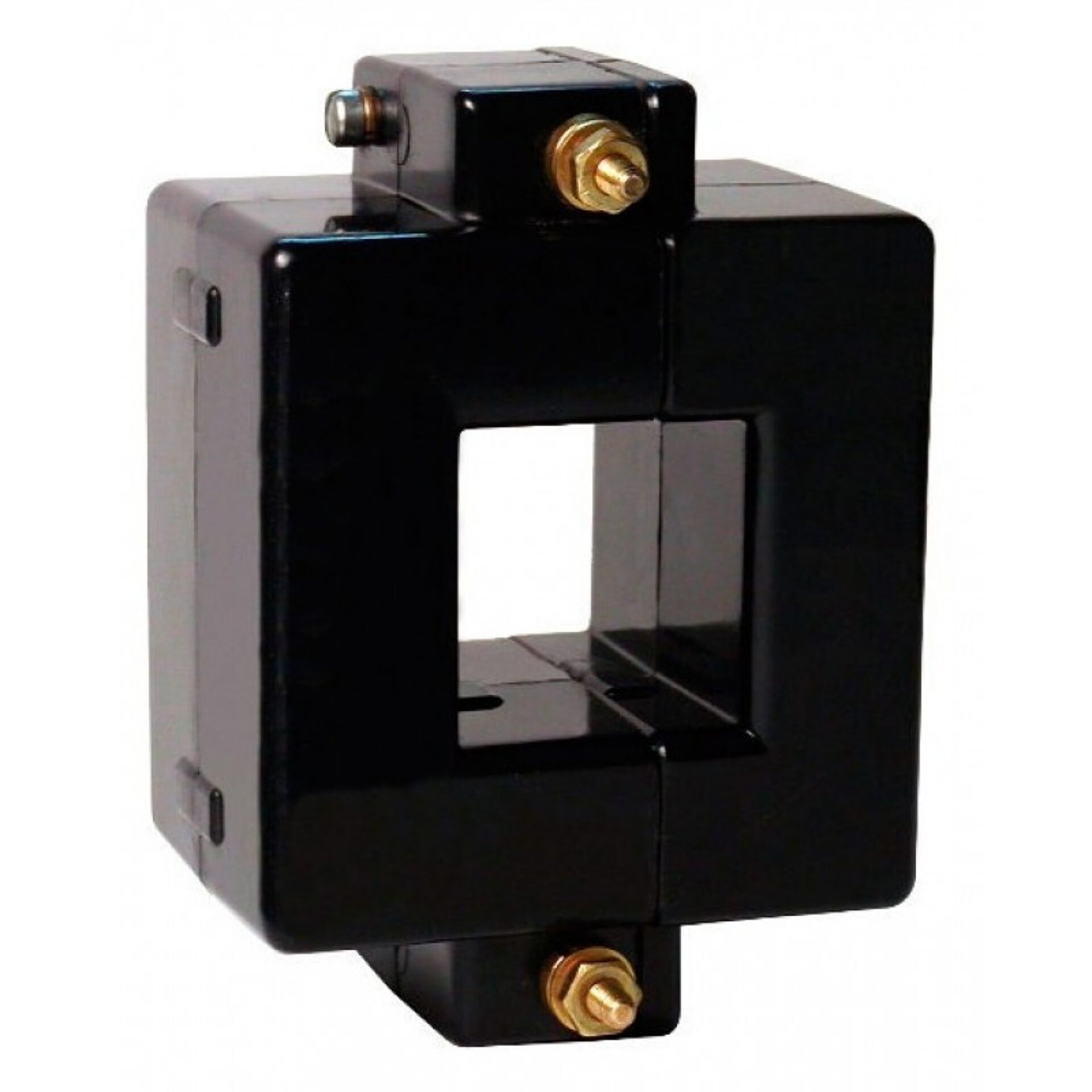

Model 604 High Accuracy Low Ratio Split Core Current Transformer
Introducing the Model 604 High Accuracy Low Ratio Split Core Current Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this innovative current transformer combines precision engineering with ease of use, making it an ideal choice for professionals seeking reliable and accurate current measurement.
Overview
Introducing the Model 604 High Accuracy Low Ratio Split Core Current Transformer, a state-of-the-art solution designed to meet the demanding needs of modern electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this innovative current transformer combines precision engineering with ease of use, making it an ideal choice for professionals seeking reliable and accurate current measurement.
The Model 604 is engineered to deliver high accuracy across a wide range of low current ratios, ensuring precise readings even in challenging environments. Its split-core design allows for quick and easy installation without the need to disconnect wiring or power sources, significantly reducing downtime and simplifying maintenance procedures. This feature makes it particularly suitable for retrofitting existing systems or performing on-the-fly measurements in live electrical setups.
Built with durable materials and stringent quality standards, the Model 604 guarantees long-term performance and stability. It is designed to seamlessly integrate into various electrical systems, providing critical data for energy management, system troubleshooting, and safety monitoring. As a product of, a trusted leader in electrical and electronic manufacturing, this current transformer embodies innovation, reliability, and excellence.
Spectrum Industries takes pride in offering solutions that meet the highest industry standards, ensuring that your electrical measurement needs are met with precision and confidence. The Model 604 exemplifies this commitment, delivering accurate, dependable performance for a wide range of applications.
Request a Quote for Model 604 High Accuracy Low Ratio Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 2.5 lbs
- Application
- Energy Management
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage Class
- 0.6 kV
- Window Size
- 1.42 in x 1.53 in
- Secondary Terminals
- 10-32 brass studs with one flatwasher and 2 regular nuts
- Flexible Leads (available option)
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 100 | 5 | 100:5 | 1.33 | 1 |
| 125 | 5 | 125:5 | 1.33 | 1 |
| 150 | 5 | 150:5 | 1.33 | 1 |
| 175 | 5 | 175:5 | 1.33 | 1 |
| 200 | 5 | 200:5 | 1.33 | 1 |
| 250 | 5 | 250:5 | 1.33 | 1 |
| 300 | 5 | 300:5 | 1.33 | 1 |
| 350 | 5 | 350:5 | 1.33 | 1 |
| 400 | 5 | 400:5 | 1.33 | 1 |
| 100 | 0.1 | 100:0.1 | — | — |
