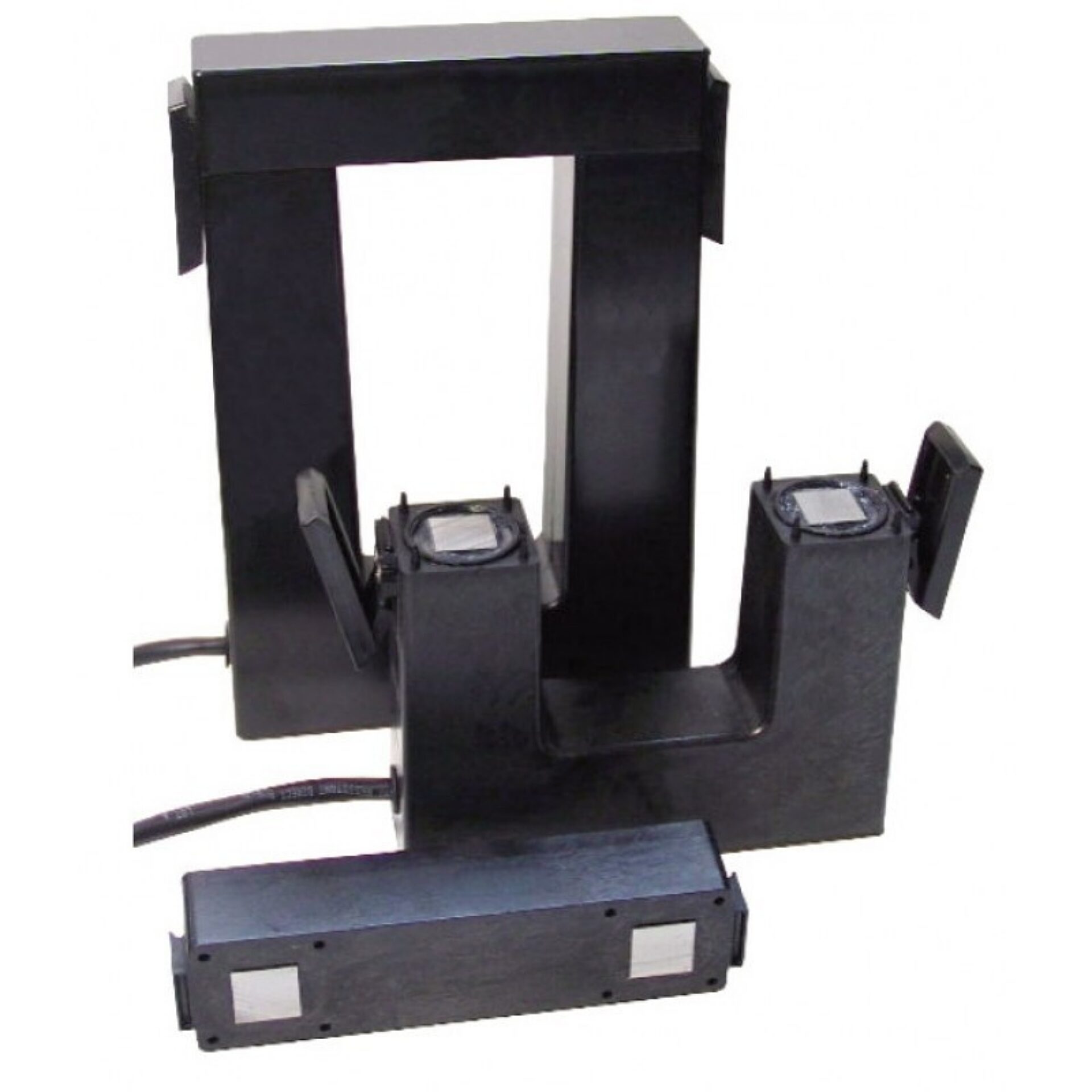

Model 606 Split Core Current Transformer - Transformers
Overview
The Model 606 Split Core Current Transformer - Transformers is engineered for accurate, reliable performance in industrial, commercial, and utility environments.
Request a Quote for Model 606 Split Core Current Transformer - Transformers
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 4.5 lbs
- Application
- Energy Management
- Standards
- ANSI/IEEE C57.13
- Rated insulation voltage
- 0.6 kV, BIL 10 kV full wave
- Environment
- Suitable for use in wet location environments
- Continuous thermal current rating factor
- 1.33 at 30 C amb., 1.00 at 55 C amb.
- Secondary cable
- Two No. 16 AWG, 6 feet long
- Window size
- 2.75 in x 2.70 in
Maximum 1000 characters
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 350 | 5 | 350:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
