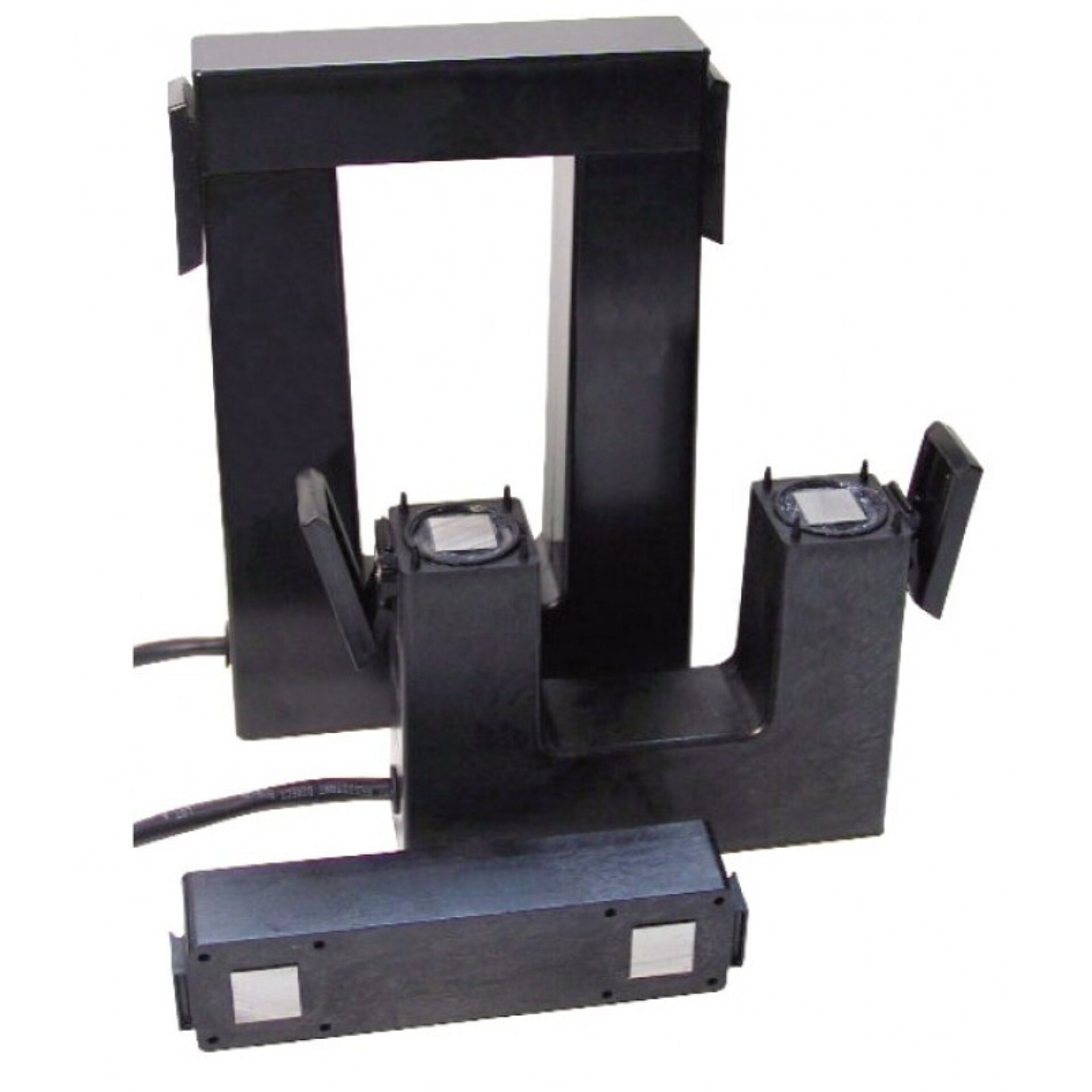

Model 608 Split Core Current Transformer
Introducing the Model 608 Split-Core Current Transformer, a reliable and efficient solution for accurately measuring electrical current in a variety of applications. and produced by Spectrum Industries, this current transformer is designed to meet the demanding needs of electrical professionals, engineers, and technicians. Its innovative split-core design allows for easy installation and removal without the need to disconnect wiring, making it ideal for retrofit projects and situations where quick access is essential.
Overview
Introducing the Model 608 Split-Core Current Transformer, a reliable and efficient solution for accurately measuring electrical current in a variety of applications. and produced by Spectrum Industries, this current transformer is designed to meet the demanding needs of electrical professionals, engineers, and technicians. Its innovative split-core design allows for easy installation and removal without the need to disconnect wiring, making it ideal for retrofit projects and situations where quick access is essential.
The Model 608 is engineered to provide precise current measurement with minimal insertion loss, ensuring accurate readings for monitoring and control purposes. Its robust construction and high-quality materials ensure durability and long-term performance in diverse environments. Whether used in industrial settings, commercial buildings, or energy management systems, this current transformer delivers consistent and dependable results.
Spectrum Industries, renowned for their commitment to quality and innovation, has partnered with to produce this top-tier current transformer. The collaboration combines ’s advanced electrical engineering expertise with Spectrum Industries’ manufacturing excellence, resulting in a product that stands out for its reliability, ease of use, and precision. Whether for new installations or upgrades, the Model 608 Split-Core Current Transformer is a trusted choice for professionals seeking accurate current measurement solutions.
Request a Quote for Model 608 Split Core Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 7.5 lbs
- Application
- Energy Management
- Standards
- ANSI/IEEE C57.13
- Environment
- Suitable for use in wet location environments
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Secondary Cable
- Two No. 16 AWG, 6 feet long
- Window Size
- 2.60" x 6.25"
- Continuous Thermal Current Rating Factor
- 608-501 thru 608-202: 1.33 at 30C amb / 1.00 at 55C amb; 608-252 thru 608-322: 1.0 at 30C amb / 0.7 at 55C amb
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- typical
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 500 | 5 | 500:5 | 1.33 | 1 |
| 600 | 5 | 600:5 | 1.33 | 1 |
| 800 | 5 | 800:5 | 1.33 | 1 |
| 1000 | 5 | 1000:5 | 1.33 | 1 |
| 1200 | 5 | 1200:5 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | 1.33 | 1 |
| 1600 | 5 | 1600:5 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | 1.33 | 1 |
| 2500 | 5 | 2500:5 | 1 | 0.7 |
| 3000 | 5 | 3000:5 | 1 | 0.7 |
| 3200 | 5 | 3200:5 | 1 | 0.7 |
