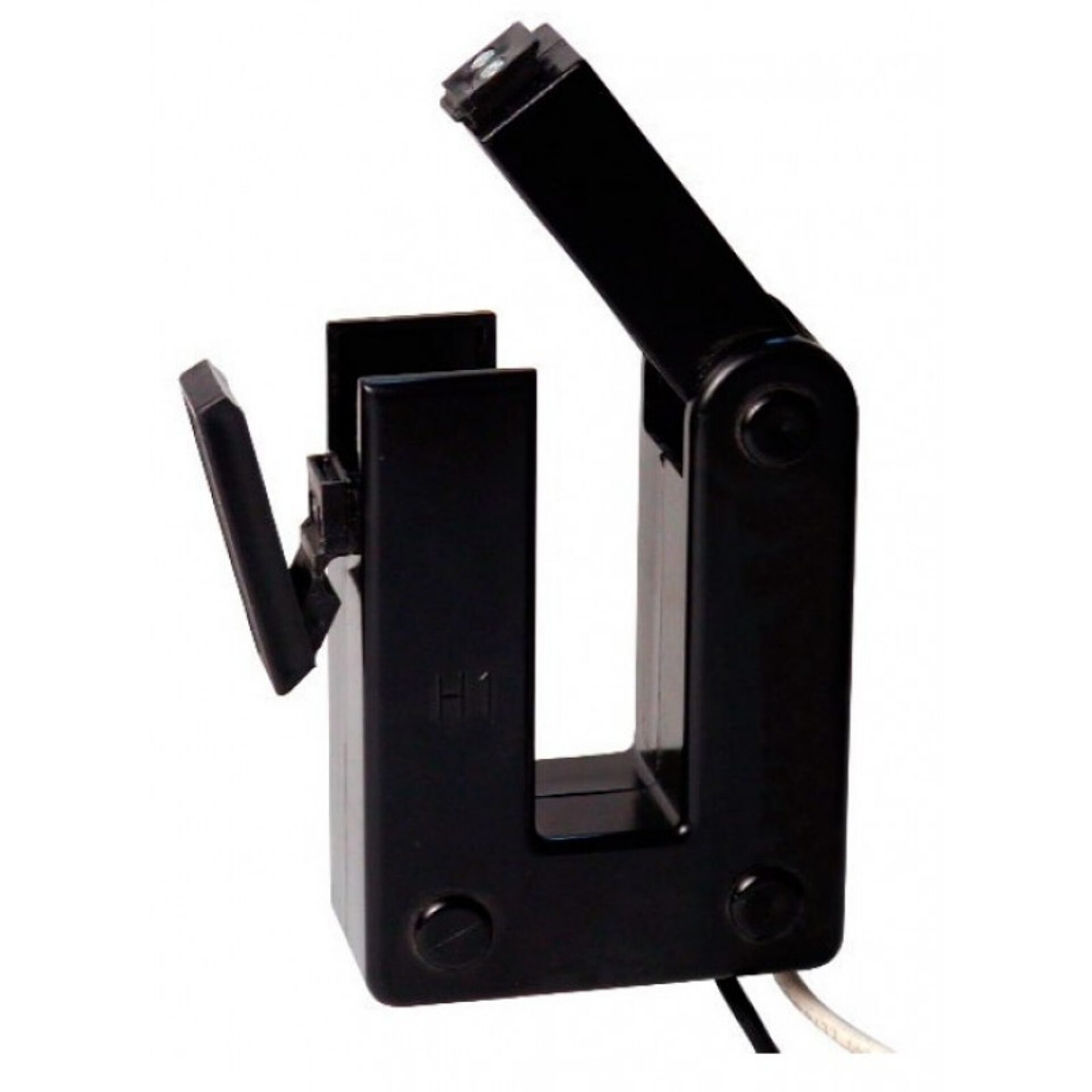

Model 613 Split Core/Clamp On Current Transformer
Introducing the Model 613 Split Core Clamp-On Current Transformer, a reliable and efficient solution for measuring electrical current in various applications. and distributed by Spectrum Industries, this innovative device is designed to provide accurate current readings without the need to disconnect or interrupt the electrical circuit. Its split core design allows for quick and easy installation around existing wiring, making it an ideal choice for maintenance, troubleshooting, and energy management tasks.
Overview
Introducing the Model 613 Split Core Clamp-On Current Transformer, a reliable and efficient solution for measuring electrical current in various applications. and distributed by Spectrum Industries, this innovative device is designed to provide accurate current readings without the need to disconnect or interrupt the electrical circuit. Its split core design allows for quick and easy installation around existing wiring, making it an ideal choice for maintenance, troubleshooting, and energy management tasks.
The Model 613 current transformer boasts high precision and durability, ensuring consistent performance in demanding environments. Its compact and lightweight construction makes it suitable for use in tight spaces, while its robust build guarantees long-lasting operation. Whether for industrial, commercial, or residential use, this clamp-on transformer simplifies the process of monitoring electrical systems, helping users optimize energy consumption and maintain safety standards.
a trusted leader in electrical equipment and technology, the Model 613 reflects a commitment to quality and innovation. Spectrum Industries distributes this product to meet the needs of professionals and technicians seeking a dependable, easy-to-use current measurement tool. With its user-friendly design and reliable performance, the Model 613 Split Core Clamp-On Current Transformer is an excellent addition to any electrical toolkit, ensuring accurate readings and efficient system management.
Request a Quote for Model 613 Split Core/Clamp On Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1 lbs
- Application
- Energy Management
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- Window Size
- 0.80" x 1.95"
- Input Impedance Requirement
- 14K ohms minimum
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Lead Wire
- UL 1015, 105°C, CSA approved, #16 AWG, 24" long unless otherwise specified
- Continuous Thermal Current Rating Factor
- Models 613-101 thru 613-401: 1.33 at 30°C amb., 1.0 at 55°C amb.; Model 613-1000T: 330 A at 30°C amb., 250 A at 55°C amb.
- Approvals
- Classified by U.L. in accordance with IEC 44-1
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 100 | 5 | 100:5 | 1.33 | 1 |
| 125 | 5 | 125:5 | 1.33 | 1 |
| 150 | 5 | 150:5 | 1.33 | 1 |
| 175 | 5 | 175:5 | 1.33 | 1 |
| 200 | 5 | 200:5 | 1.33 | 1 |
| 250 | 5 | 250:5 | 1.33 | 1 |
| 300 | 5 | 300:5 | 1.33 | 1 |
| 400 | 5 | 400:5 | 1.33 | 1 |
| 100 | 0.1 | 100:0.1 | — | — |
