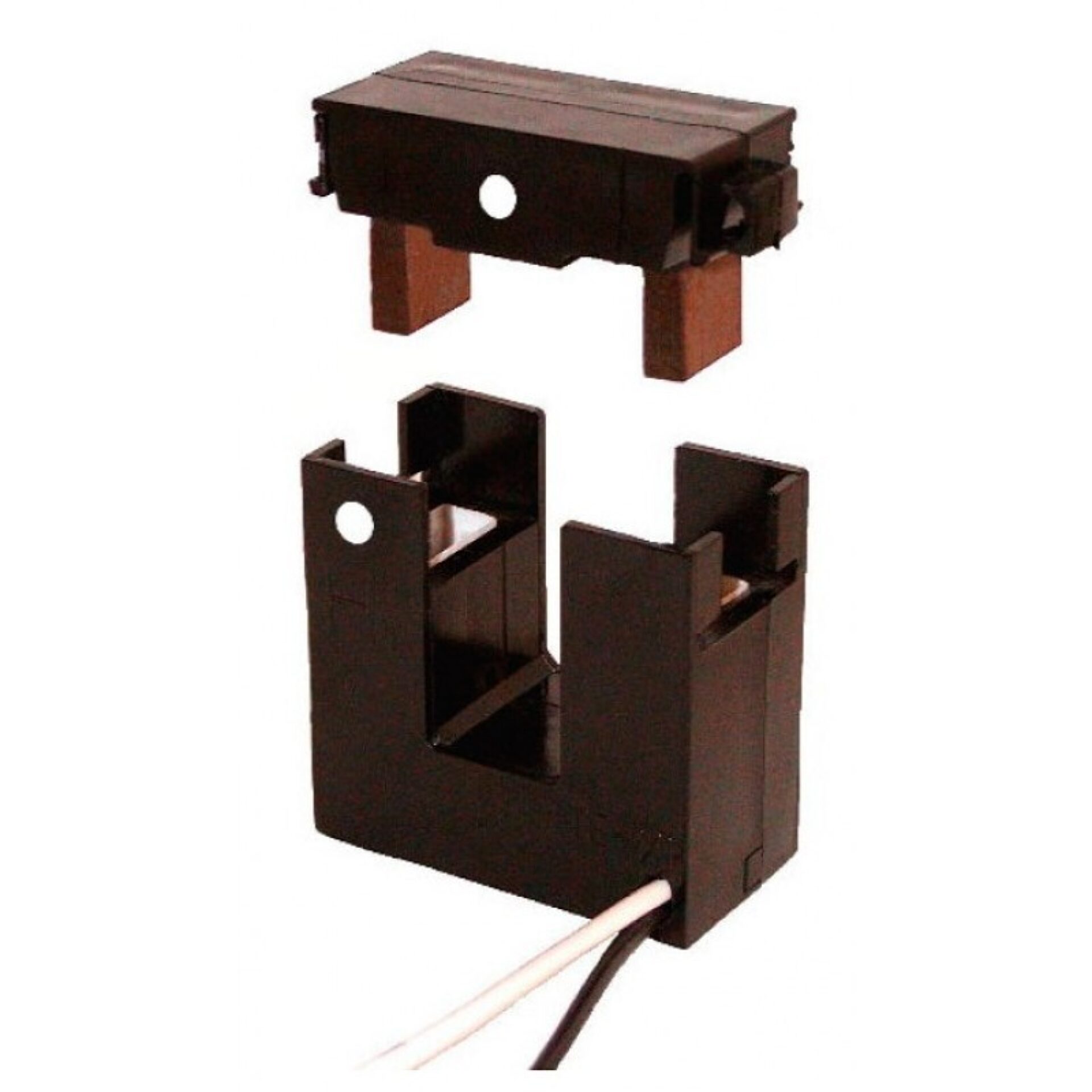

Model 614 Split Core/Clamp On Current Transformer
Introducing the Model 614 Split-Core Clamp-On Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to provide accurate and reliable current measurements, this transformer is an essential tool for professionals in electrical maintenance, energy management, and system monitoring. Its split-core design allows for easy installation without the need to disconnect wiring, making it ideal for retrofit applications or situations where quick and non-intrusive measurements are required.
Overview
Introducing the Model 614 Split-Core Clamp-On Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to provide accurate and reliable current measurements, this transformer is an essential tool for professionals in electrical maintenance, energy management, and system monitoring. Its split-core design allows for easy installation without the need to disconnect wiring, making it ideal for retrofit applications or situations where quick and non-intrusive measurements are required.
a global leader in electrical and electronic manufacturing, the Model 614 combines durability with precision. Its robust construction ensures long-lasting performance even in demanding environments, while the split-core feature offers convenience and flexibility. This current transformer is capable of handling a wide range of current levels, providing accurate readings that are crucial for system diagnostics, load analysis, and energy auditing.
Spectrum Industries is proud to distribute this advanced product, which exemplifies their commitment to delivering high-quality electrical instrumentation. Whether you are conducting routine maintenance or performing detailed system analysis, the Model 614 Split-Core Clamp-On Current Transformer offers a dependable and efficient solution. With its user-friendly design and ’s renowned engineering standards, this transformer is a valuable addition to any electrical toolkit, ensuring precise measurements and enhanced system safety.
Request a Quote for Model 614 Split Core/Clamp On Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 0.4 lbs
- Application
- Energy Management
- Standards
- UL
- Window Size
- 0.75" x 0.75"
- Construction
- Core and winding encased in UL approved plastic; flexible leads UL 1015, 105C, #18 AWG, 36 in long unless otherwise specified.
- Regulatory Agency Approval
- Canadian (C) mark shown on sheet
- Application wording
- energy management systems and instrumentation equipment
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- 60 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 100 | 0.1 | 100:0.1 | 1.33 | 1 | 5 |
| 200 | 0.1 | 200:0.1 | 1.33 | 1 | 5 |
