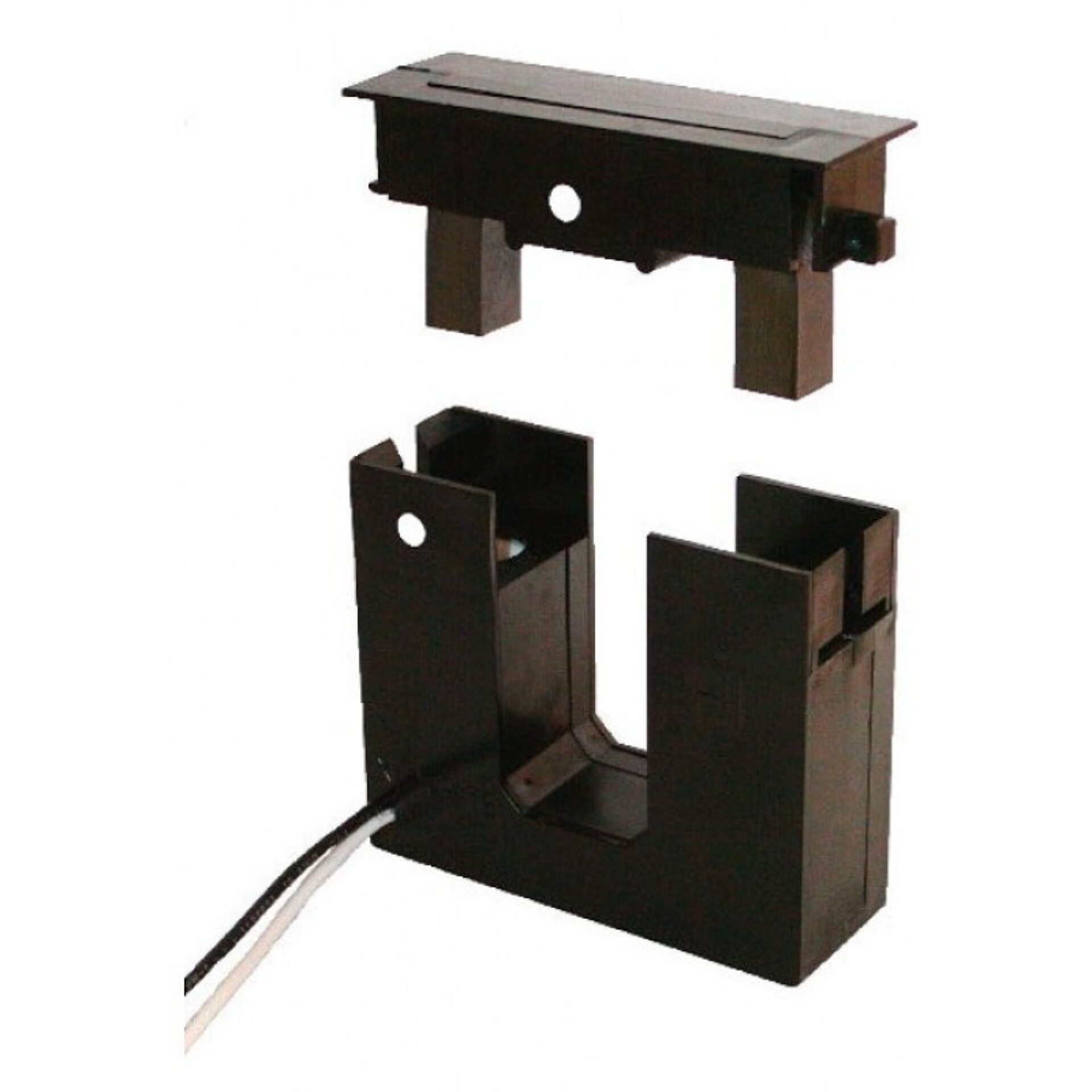

Model 615 Split Core/Clamp On Current Transformer
Introducing the Model 615 Split-Core Clamp-On Current Transformer, a high-quality solution designed to provide accurate current measurement with ease and convenience. and distributed by Spectrum Industries, this innovative device is ideal for professionals and technicians seeking reliable electrical measurement tools. Its split-core design allows for quick installation without the need to disconnect wiring, making it perfect for retrofit applications or situations where minimizing downtime is essential.
Overview
Introducing the Model 615 Split-Core Clamp-On Current Transformer, a high-quality solution designed to provide accurate current measurement with ease and convenience. and distributed by Spectrum Industries, this innovative device is ideal for professionals and technicians seeking reliable electrical measurement tools. Its split-core design allows for quick installation without the need to disconnect wiring, making it perfect for retrofit applications or situations where minimizing downtime is essential.
The Model 615 is engineered to deliver precise current readings across a wide range of electrical systems. Its robust construction ensures durability and long-term performance, even in demanding environments. The clamp-on design not only simplifies installation but also allows for easy removal and repositioning, providing flexibility for ongoing maintenance or system adjustments. Whether used in industrial, commercial, or residential settings, this current transformer offers dependable functionality that helps ensure safety and efficiency in electrical system monitoring.
a trusted name in electrical and electronic manufacturing, the Model 615 reflects the company's commitment to quality and innovation. Spectrum Industries’ distribution ensures that this product is readily accessible to professionals who require accurate, reliable current measurement tools. Overall, the Model 615 Split-Core Clamp-On Current Transformer is an excellent choice for those seeking a dependable, easy-to-use solution for their electrical measurement needs.
Request a Quote for Model 615 Split Core/Clamp On Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1 lbs
- Application
- Metering, Energy Management
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Window Size
- 1.31" x 1.66"
- Construction
- Core and winding encased in U.L. approved plastic.
- Lead Wire
- Flexible leads UL 1015, 105°C, #16 AWG, 36” long unless otherwise specified.
- Continuous Thermal Current Rating Factor
- 1.33 at 30°C amb., 1.0 at 55°C amb.
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 100 | 5 | 100:5 |
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 200 | 1 | 200:1 |
| 250 | 1 | 250:1 |
| 300 | 1 | 300:1 |
| 400 | 1 | 400:1 |
| 100 | 0.1 | 100:0.1 |
| 200 | 0.1 | 200:0.1 |
| 400 | 0.1 | 400:0.1 |
