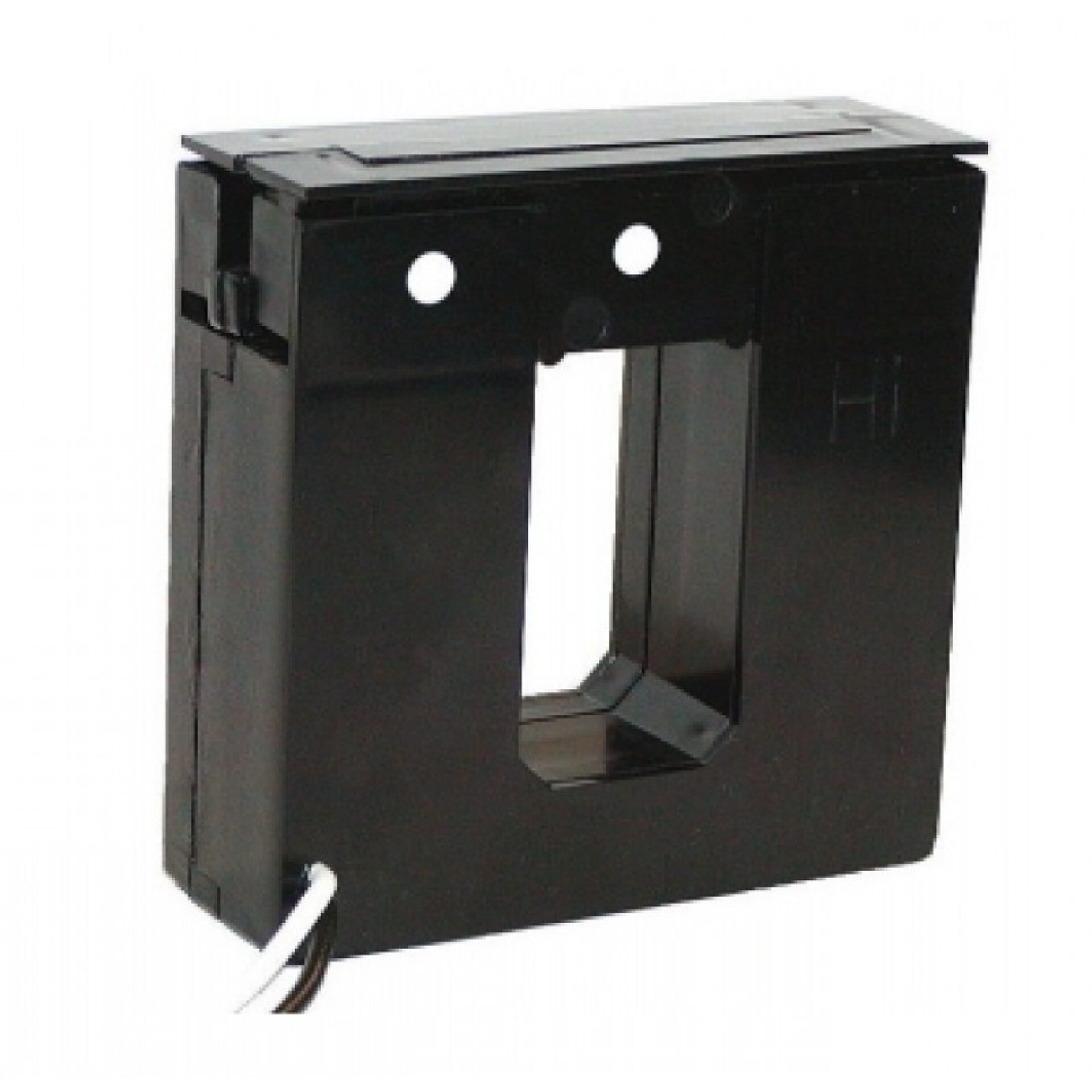

Model 616 Split Core/Clamp On Current Transformer
Introducing the Model 616 Split-Core Clamp-On Current Transformer, a reliable and efficient solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this high-quality current transformer is engineered to provide precise current measurement while offering the convenience of easy installation. Its split-core design allows technicians to easily clamp the device around existing wiring without the need to disconnect or alter the circuit, making it an ideal choice for both maintenance and new installations.
Overview
Introducing the Model 616 Split-Core Clamp-On Current Transformer, a reliable and efficient solution to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this high-quality current transformer is engineered to provide precise current measurement while offering the convenience of easy installation. Its split-core design allows technicians to easily clamp the device around existing wiring without the need to disconnect or alter the circuit, making it an ideal choice for both maintenance and new installations.
Built with durability and accuracy in mind, the Model 616 is suitable for a wide range of applications, including energy management, electrical troubleshooting, and system monitoring. Its robust construction ensures consistent performance even in challenging environments, while the split-core feature minimizes downtime and simplifies the process of current measurement. Whether used in industrial, commercial, or residential settings, this transformer delivers dependable readings that help optimize electrical performance and ensure safety.
and distributed through Spectrum Industries, the Model 616 exemplifies the commitment to quality and innovation that both companies are known for. Its user-friendly design, combined with precise measurement capabilities, makes it an essential tool for electricians, engineers, and maintenance professionals alike. With the Model 616, you can confidently monitor electrical currents and maintain the integrity of your electrical systems with ease and accuracy.
Request a Quote for Model 616 Split Core/Clamp On Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.2 lbs
- Application
- Energy Management
- Standards
- UL
- Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Construction
- Core and winding encased in UL approved plastic
- Continuous Thermal Current Rating Factor
- 1.33 at 30°C amb., 1.0 at 55°C amb.
- Window Size
- 1.31" x 2.16"
- Lead Wire
- UL 1015, 105°C, #16 AWG, 24 in long unless otherwise specified
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 200 | 5 | 200:5 |
| 400 | 5 | 400:5 |
| 600 | 5 | 600:5 |
| 800 | 5 | 800:5 |
| 200 | 1 | 200:1 |
| 400 | 1 | 400:1 |
| 600 | 1 | 600:1 |
| 800 | 1 | 800:1 |
| 200 | 0.1 | 200:0.1 |
| 400 | 0.1 | 400:0.1 |
| 600 | 0.1 | 600:0.1 |
| 800 | 0.1 | 800:0.1 |
