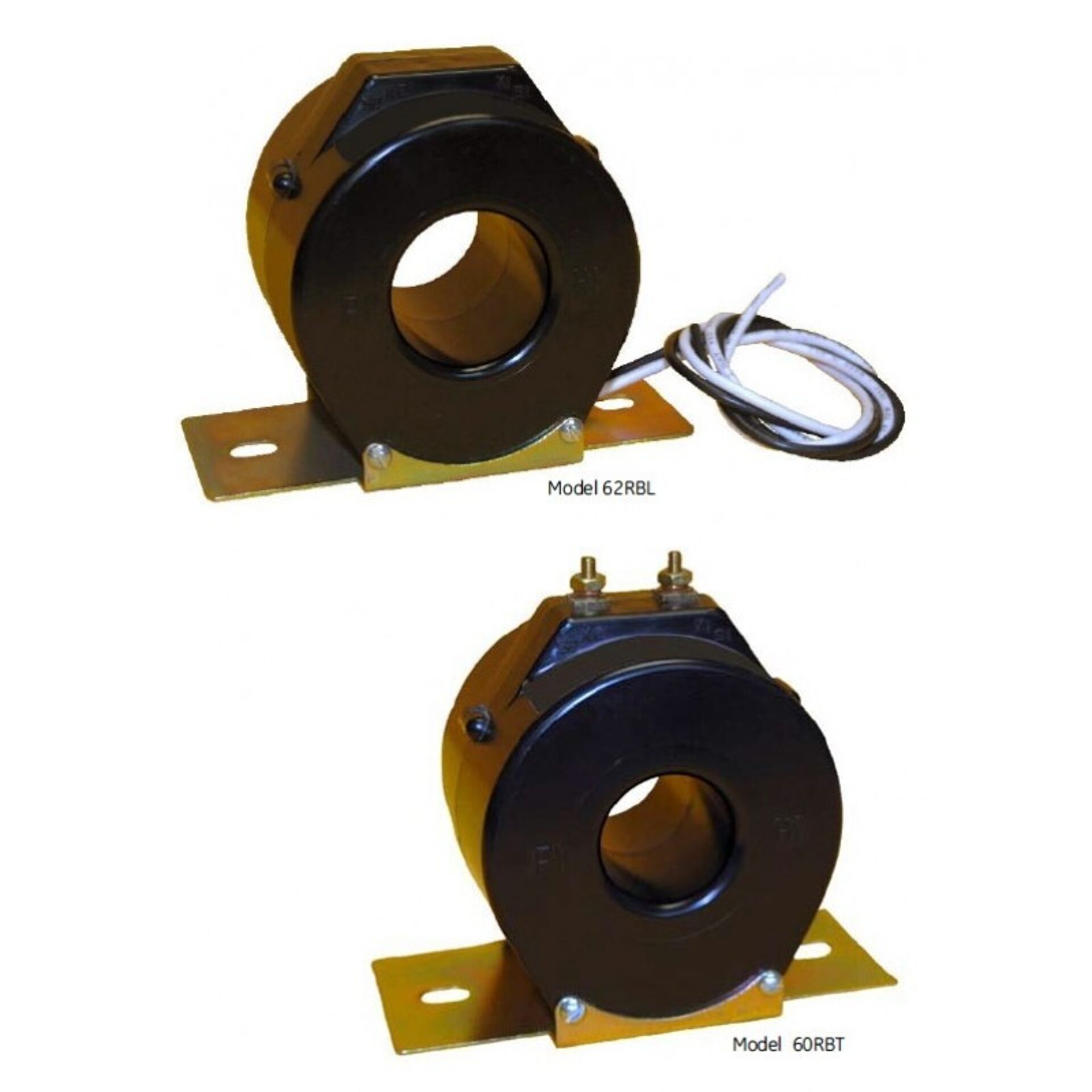

Model 62 Current Transformer
Introducing the Model 62 Current Transformer, a reliable and precise instrument and distributed by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection, this current transformer offers exceptional accuracy and durability for a wide range of industrial and commercial applications. Whether you're involved in power distribution, automation, or testing environments, the Model 62 provides the performance you can depend on.
Overview
Introducing the Model 62 Current Transformer, a reliable and precise instrument and distributed by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and protection, this current transformer offers exceptional accuracy and durability for a wide range of industrial and commercial applications. Whether you're involved in power distribution, automation, or testing environments, the Model 62 provides the performance you can depend on.
a global leader in electrical equipment and technology, this current transformer exemplifies quality engineering and innovative design. It is engineered to deliver accurate current measurement while maintaining safety and ease of installation. The robust construction ensures long-term reliability, even in challenging operating conditions, making it a valuable addition to any electrical system. The Model 62's compatibility with various measurement and control devices makes it a versatile choice for professionals seeking dependable current transformation.
Spectrum Industries proudly distributes this high-quality product, ensuring that customers receive genuine, expertly supported equipment. The Model 62 Current Transformer is an ideal solution for applications requiring precise current measurement, whether for monitoring, metering, or protective relays. With its proven performance and trusted brand backing, this current transformer is designed to help you achieve accurate, safe, and efficient electrical system operation.
Request a Quote for Model 62 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3.75 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 1.56 in
- Insulation Level
- 600 Volts, 10 kV BIL full wave
- Terminals
- Brass studs No. 8-32 with one flatwasher, lockwasher and regular nut
- Flexible Leads
- UL 1015, 105 C, CSA approved, #16 AWG, 24 in long
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 2 | 2 | 0.013 |
| 75 | 5 | 75:5 | 1.2B0.1 | 2 | 2 | 0.018 |
| 100 | 5 | 100:5 | 0.6B0.1 | 2 | 2 | 0.037 |
| 150 | 5 | 150:5 | 0.3B0.1 | 2 | 2 | 0.05 |
| 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 | 0.066 |
| 250 | 5 | 250:5 | 0.3B0.2 | 2 | 1.5 | 0.083 |
| 300 | 5 | 300:5 | 0.3B0.5 | 1.5 | 1.33 | 0.1 |
| 400 | 5 | 400:5 | 0.3B0.5 | 1.5 | 1 | 0.15 |
| 500 | 5 | 500:5 | 0.3B0.9 | 1.33 | 1 | 0.235 |
| 600 | 5 | 600:5 | 0.3B0.9 | 1 | 0.8 | 0.354 |
| 750 | 5 | 750:5 | 0.3B1.8 | 1 | 0.8 | 0.262 |
| 800 | 5 | 800:5 | 0.3B1.8 | 1 | 0.8 | 0.28 |
| 1000 | 5 | 1000:5 | 0.3B1.8 | 1 | 0.6 | 0.438 |
| 1200 | 5 | 1200:5 | 0.3B1.8 | 0.8 | 0.6 | 0.657 |
