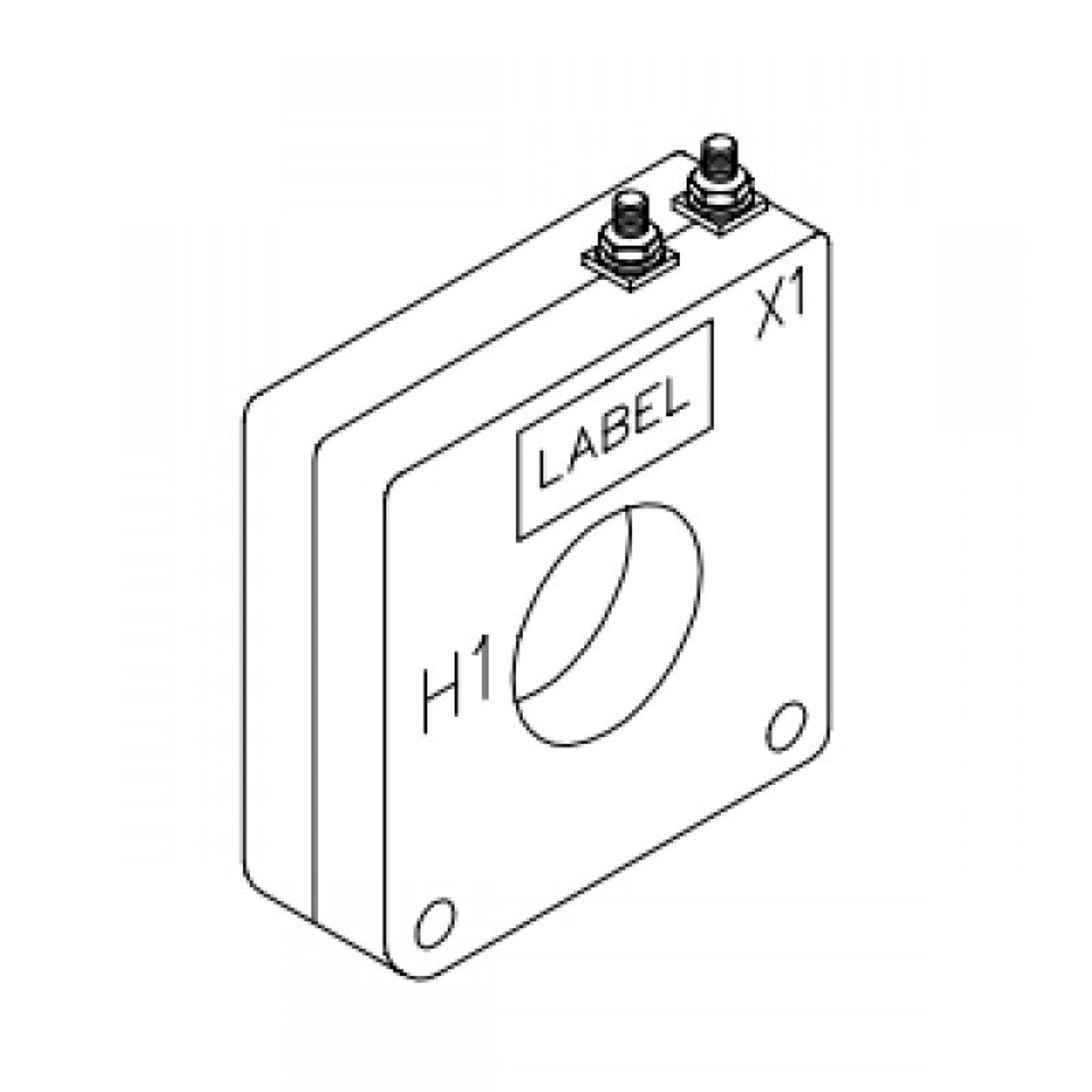

Model 64 Current Transformer
Introducing the Model 64 Current Transformer, a high-quality product, brought to you through Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical applications. Whether you're managing industrial systems, power distribution networks, or electrical testing environments, the Model 64 offers dependable performance that ensures safety and efficiency.
Overview
Introducing the Model 64 Current Transformer, a high-quality product, brought to you through Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate current measurement and monitoring in various electrical applications. Whether you're managing industrial systems, power distribution networks, or electrical testing environments, the Model 64 offers dependable performance that ensures safety and efficiency.
a globally recognized leader in electrical and electronic solutions, the Model 64 Current Transformer embodies advanced engineering and rigorous quality standards. Its robust construction and precise calibration enable it to deliver consistent, accurate readings across a wide range of current levels. This makes it an ideal choice for professionals seeking a dependable instrument to support their operational needs.
Spectrum Industries has partnered with to bring this exceptional product to market, emphasizing durability, ease of installation, and long-term reliability. The Model 64 is designed to seamlessly integrate into existing systems, providing clear and accurate current measurements that are vital for effective system monitoring and control. With its proven performance and trusted brand backing, the Model 64 Current Transformer is a smart investment for any electrical professional seeking quality and precision in their measurement tools.
Request a Quote for Model 64 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 3.75 lbs
- Application
- Metering
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- System voltage rating
- 600 V
- Window diameter
- 1.56 in
- Secondary terminals
- No. 8-32 UNC brass studs
- Mounting bracket kit
- 0221B01976
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 50 | 5 | 50:5 | — | 2 | 2 | 0.011 |
| 75 | 5 | 75:5 | 1.2B0.1 | 2 | 2 | 0.02 |
| 100 | 5 | 100:5 | 1.2B0.2 | 2 | 2 | 0.026 |
| 150 | 5 | 150:5 | 0.6B0.2 | 2 | 2 | 0.043 |
| 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 | 0.063 |
| 250 | 5 | 250:5 | 0.3B0.2 | 2 | 1.5 | 0.074 |
| 300 | 5 | 300:5 | 0.3B0.5 | 2 | 1.5 | 0.086 |
| 400 | 5 | 400:5 | 0.3B0.5 | 1.5 | 1.33 | 0.11 |
| 500 | 5 | 500:5 | 0.3B0.9 | 1.5 | 1 | 0.173 |
