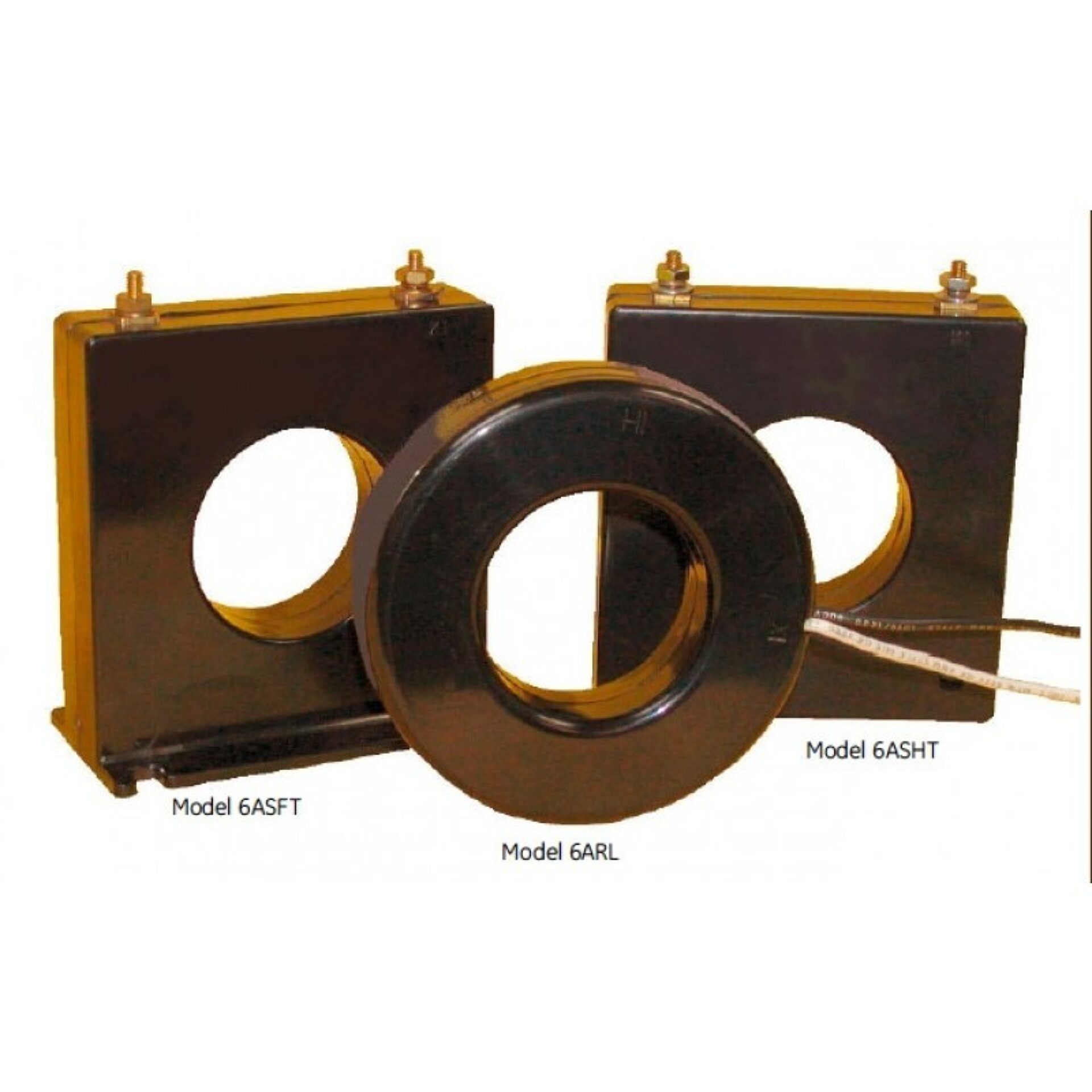

Model 6A Transformer
Introducing the Model 6A Transformer, a reliable and high-performance product, a globally recognized leader in electrical and electronic manufacturing. Designed with precision and durability in mind, this transformer is an essential component for a wide range of industrial and commercial applications, ensuring efficient power management and signal integrity.
Overview
Introducing the Model 6A Transformer, a reliable and high-performance product, a globally recognized leader in electrical and electronic manufacturing. Designed with precision and durability in mind, this transformer is an essential component for a wide range of industrial and commercial applications, ensuring efficient power management and signal integrity.
the Model 6A Transformer exemplifies the company's commitment to innovation and quality. It features robust construction and advanced engineering to deliver consistent performance even in demanding environments. Whether used in testing facilities, power distribution systems, or specialized electronic setups, this transformer provides stable voltage transformation and excellent electrical isolation, helping to safeguard equipment and optimize operational efficiency.
Spectrum Industries proudly offers the Model 6A Transformer as part of their extensive portfolio of high-quality electrical products. Known for their commitment to excellence, Spectrum Industries ensures that each unit meets rigorous standards for safety, reliability, and longevity. This transformer is easy to install and maintain, making it a practical choice for professionals seeking dependable performance.
In summary, the Model 6A Transformer by, supplied through Spectrum Industries, is a trusted solution for those requiring a durable, efficient, and high-quality transformer. Its proven design and manufacturing excellence make it a valuable asset for any electrical setup, supporting your operational needs with confidence and precision.
Request a Quote for Model 6A Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.25 lbs
- Application
- Metering
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Insulation Voltage
- 600 V
- Window Diameter
- 2.06 in
- Terminals
- Brass studs No. 8-32
- Flexible Leads
- UL 1015, 105 C, #16 AWG, 24 in
- Application
- Ammeters and wattmeters
- Model Variants
- 6ASHT, 6ASFT, 6ARL, 6ASHL, 6ASFL
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | — | 2 | 2 | 0.015 |
| 150 | 5 | 150:5 | 1.2B0.1 | 2 | 2 | 0.024 |
| 200 | 5 | 200:5 | 0.6B0.1 | 2 | 2 | 0.037 |
| 250 | 5 | 250:5 | 0.3B0.1 | 2 | 1.5 | 0.044 |
| 300 | 5 | 300:5 | 0.3B0.1 | 2 | 1.5 | 0.055 |
| 400 | 5 | 400:5 | 0.3B0.2 | 1.5 | 1.33 | 0.071 |
| 500 | 5 | 500:5 | 0.3B0.2 | 1.5 | 1 | 0.107 |
| 600 | 5 | 600:5 | 0.3B0.2 | 1.33 | 1 | 0.128 |
| 750 | 5 | 750:5 | 0.3B0.2 | 1.25 | 1 | 0.156 |
| 800 | 5 | 800:5 | 0.3B0.2 | 1.25 | 0.8 | 0.167 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 1 | 0.8 | 0.208 |
| 1200 | 5 | 1200:5 | 0.3B0.9 | 1 | 0.8 | 0.25 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 1 | 0.8 | 0.388 |
