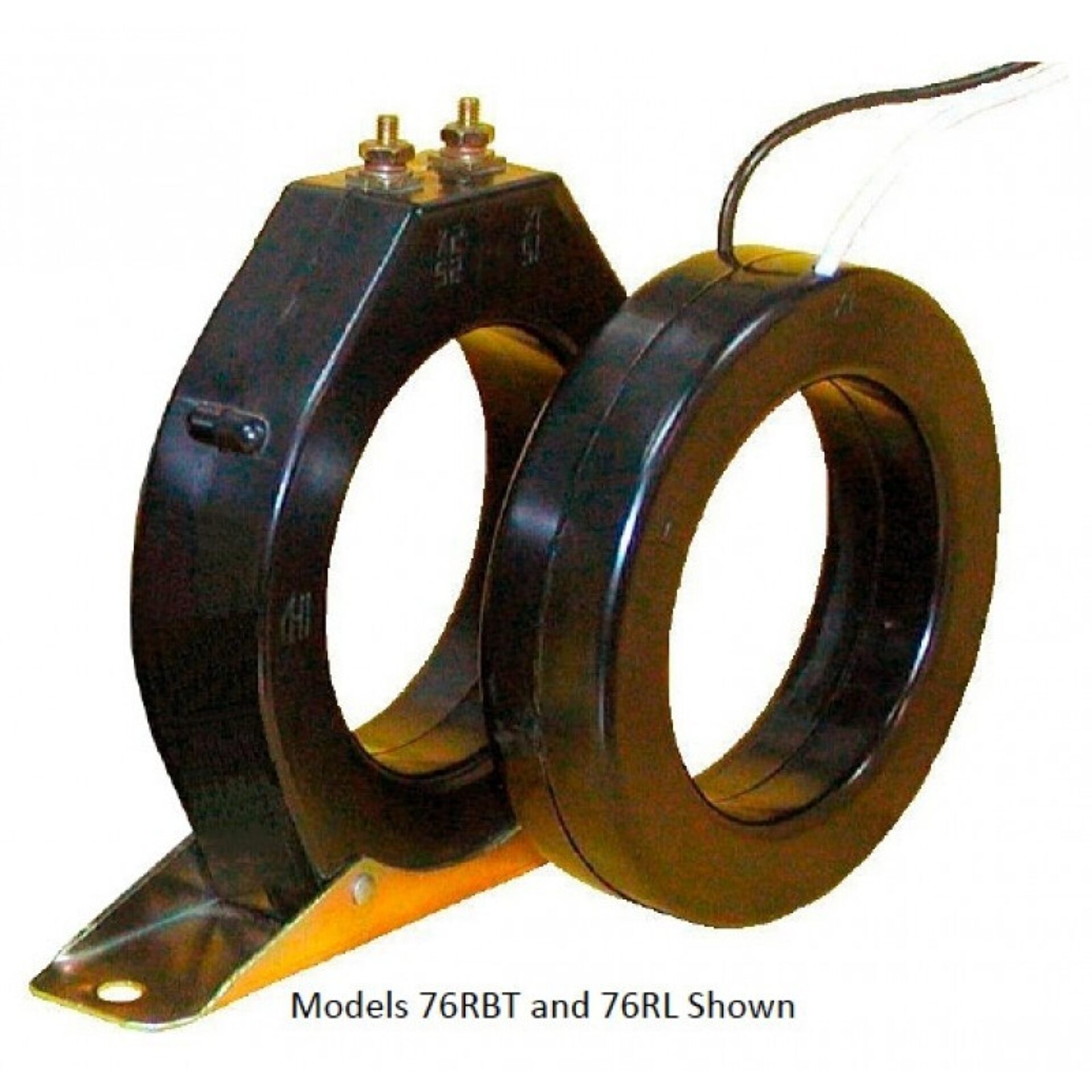

Model 76 Current Transformer
Introducing the Model 76 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to provide precise current measurement and ensure reliable performance in a variety of electrical applications, this current transformer is an essential tool for engineers, technicians, and electrical professionals.
Overview
Introducing the Model 76 Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to provide precise current measurement and ensure reliable performance in a variety of electrical applications, this current transformer is an essential tool for engineers, technicians, and electrical professionals.
Manufactured with advanced engineering standards, the Model 76 is built to deliver accurate and consistent readings, making it ideal for both industrial and commercial environments. Its robust construction and reliable performance help facilitate efficient system monitoring, protection, and control. Whether you're working on power distribution systems, instrumentation, or automation projects, this current transformer offers the durability and precision needed to meet demanding operational requirements.
Spectrum Industries takes pride in offering products that uphold the highest quality standards, and the Model 76 Current Transformer is no exception., a globally recognized leader in electrical and electronic solutions, this product benefits from decades of innovation and expertise. Its compatibility with a wide range of electrical systems, combined with its ease of installation and maintenance, makes it a versatile choice for professionals seeking dependable measurement solutions.
In summary, the Model 76 Current Transformer by, supplied by Spectrum Industries, is a reliable, accurate, and durable component designed to enhance the performance and safety of your electrical systems. Whether for new installations or maintenance upgrades, this transformer is built to meet the rigorous demands of modern electrical infrastructure.
Request a Quote for Model 76 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering
- Standards
- UL, CSA
- Window Diameter
- 3.00 in
- Insulation Voltage
- 600 V
- Leads
- #16 AWG, 24 in
- Terminals
- Brass studs No. 8-32
- Case Styles
- RT, SFT, RBT, RL, RBL
- Overall Accuracy — Accuracy
- 1
- Overall Accuracy — Condition
- at 60 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) |
|---|---|---|
| 200 | 5 | 200:5 |
| 250 | 5 | 250:5 |
| 300 | 5 | 300:5 |
| 400 | 5 | 400:5 |
| 500 | 5 | 500:5 |
| 600 | 5 | 600:5 |
| 750 | 5 | 750:5 |
| 800 | 5 | 800:5 |
| 1000 | 5 | 1000:5 |
| 1200 | 5 | 1200:5 |
| 1500 | 5 | 1500:5 |
| 1600 | 5 | 1600:5 |
| 2000 | 5 | 2000:5 |
