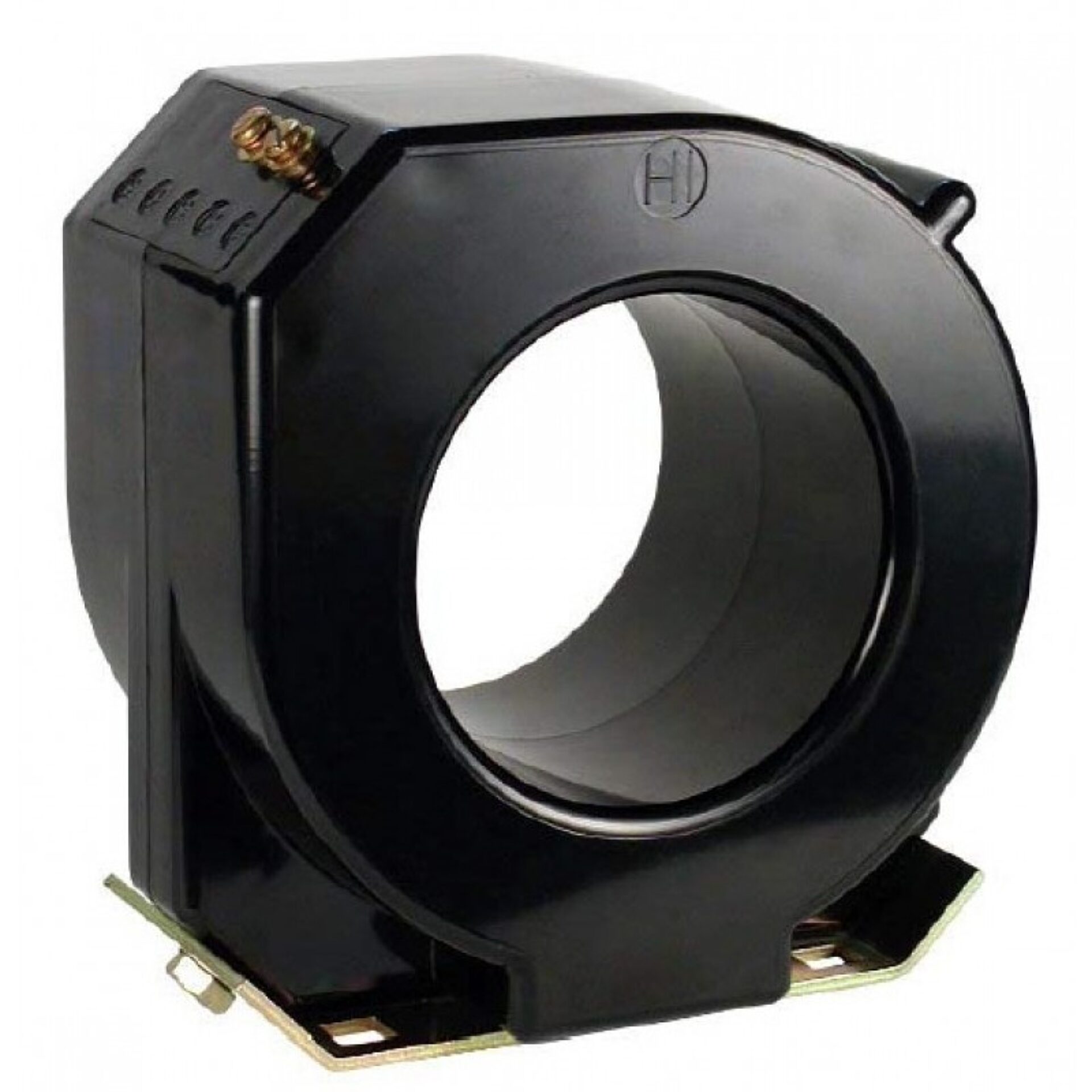

Model 792 Current Transformer
Introducing the Model 792 Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision, reliability, and durability. Engineered with advanced technology, the Model 792 is ideal for accurately transforming high current levels into manageable signals for metering, protection, and control systems.
Overview
Introducing the Model 792 Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision, reliability, and durability. Engineered with advanced technology, the Model 792 is ideal for accurately transforming high current levels into manageable signals for metering, protection, and control systems.
Spectrum Industries, a trusted name in electrical instrumentation, has partnered with to deliver products that adhere to the highest standards of performance and safety. The Model 792 Current Transformer is crafted to provide consistent and accurate readings, ensuring that your electrical systems operate efficiently and safely. Its robust construction and precise design make it suitable for a wide range of industrial, commercial, and utility applications.
Whether you are monitoring power distribution or implementing protective relays, the Model 792 offers dependable performance under various operating conditions. Its ease of installation and maintenance adds to its appeal, making it a practical choice for engineers and technicians alike. With the backing of ’s renowned manufacturing expertise and Spectrum Industries’ commitment to quality, the Model 792 Current Transformer stands out as a reliable and essential component for your electrical measurement needs.
Request a Quote for Model 792 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 16 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 4.00 in
- Insulation Class
- 0.6 kV
- Secondary Terminals
- Brass screws No. 10-32 with one flatwasher and lockwasher
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 100 | 5 | 100:5 | C10 | 1.2B1.8 | 2 | 0.036 |
| 150 | 5 | 150:5 | C20 | 0.6B1.8 | 2 | 0.052 |
| 200 | 5 | 200:5 | C20 | 0.6B1.8 | 2 | 0.077 |
| 250 | 5 | 250:5 | C20 | 0.3B1.8 | 2 | 0.097 |
| 300 | 5 | 300:5 | C20 | 0.3B1.8 | 2 | 0.116 |
| 400 | 5 | 400:5 | C50 | 0.3B1.8 | 2 | 0.155 |
| 500 | 5 | 500:5 | C50 | 0.3B1.8 | 2 | 0.213 |
| 600 | 5 | 600:5 | C50 | 0.3B1.8 | 2 | 0.256 |
| 750 | 5 | 750:5 | C100 | 0.3B1.8 | 1.5 | 0.32 |
| 800 | 5 | 800:5 | C100 | 0.3B1.8 | 1.5 | 0.341 |
| 1000 | 5 | 1000:5 | C100 | 0.3B1.8 | 1.5 | 0.536 |
| 1200 | 5 | 1200:5 | C100 | 0.3B1.8 | 1 | 1.019 |
| 1500 | 5 | 1500:5 | C100 | 0.3B1.8 | 1.33 | 0.6 |
| 1600 | 5 | 1600:5 | C100 | 0.3B1.8 | 1.33 | 0.64 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 1 | 0.99 |
| 2500 | 5 | 2500:5 | C100 | 0.3B1.8 | 1 | 1.29 |
| 3000 | 5 | 3000:5 | C100 | 0.3B1.8 | 1 | 1.55 |
