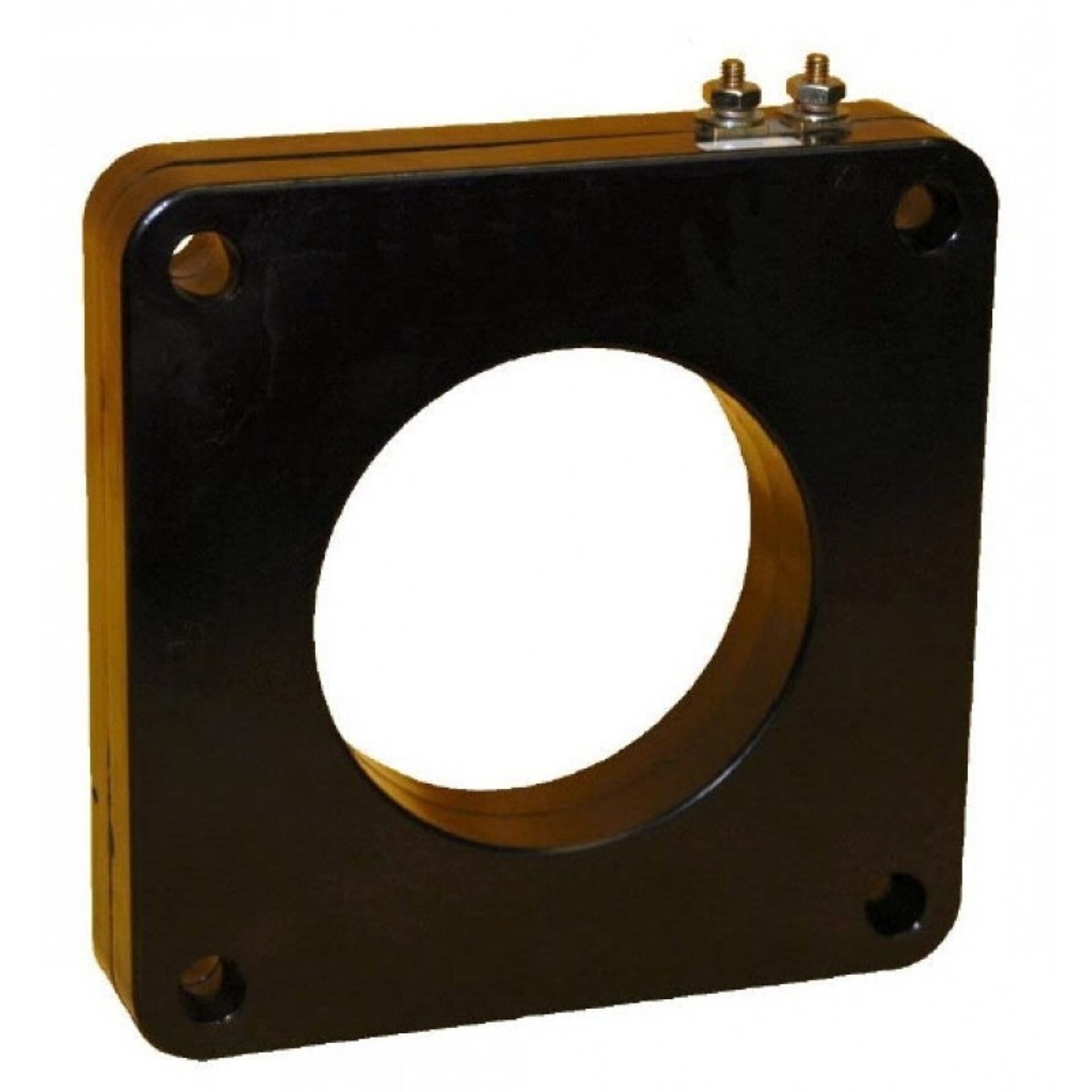

Model 8 Current Transformer
Introducing the Model 8 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 8 offers consistent performance and durability to meet demanding industry standards.
Overview
Introducing the Model 8 Current Transformer, a high-quality electrical measurement device, distributed by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential tool for professionals seeking accurate current measurement in a variety of electrical applications. Whether used in power distribution, industrial automation, or testing environments, the Model 8 offers consistent performance and durability to meet demanding industry standards.
a globally recognized leader in electrical equipment and technology, this current transformer benefits from advanced engineering and rigorous quality control. Spectrum Industries, a trusted distributor, ensures that customers receive authentic, high-performance products that adhere to strict specifications. The Model 8 is engineered to provide precise current readings, making it ideal for monitoring, metering, and protective relay applications.
Built with robust materials and designed for ease of installation, the Model 8 Current Transformer offers long-lasting service life even in challenging environments. Its compact size and straightforward wiring make it suitable for a wide range of setups. Whether you are upgrading existing systems or designing new installations, the Model 8, available through Spectrum Industries, is a dependable choice for accurate, efficient current measurement.
Request a Quote for Model 8 Current Transformer
Product Specifications
- Frequency
- 50–400 Hz
- Insulation BIL
- 10 kV
- Weight
- 2.5 lbs
- Application
- Metering
- Standards
- UL, CSA, ANSI/IEEE C57.13, IEC 44-1
- Window Diameter
- 3.25 in
- Insulation Level
- 600 V
- Terminals
- No. 8-32 brass studs
- Flexible Leads
- UL 1015, #16 AWG, 24 in
- Mounting Bracket Kit
- 0221B00183
- Bus Bar Mounting Kit
- 0221A26074
- Revenue Metering Approval
- Industry Canada No. T-188
- Model Variants
- 8SHT / 8SHL / 8RL
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 2 | 2 | 0.03 |
| 250 | 5 | 250:5 | 2 | 2 | 0.044 |
| 300 | 5 | 300:5 | 2 | 2 | 0.049 |
| 400 | 5 | 400:5 | 2 | 1.5 | 0.079 |
| 500 | 5 | 500:5 | 2 | 1.5 | 0.102 |
| 600 | 5 | 600:5 | 1.5 | 1.33 | 0.147 |
| 750 | 5 | 750:5 | 1.5 | 1 | 0.184 |
| 800 | 5 | 800:5 | 1.5 | 1 | 0.197 |
| 1000 | 5 | 1000:5 | 1.33 | 1 | 0.246 |
| 1200 | 5 | 1200:5 | 1.5 | 1 | 0.169 |
| 1500 | 5 | 1500:5 | 1.33 | 1 | 0.316 |
| 1600 | 5 | 1600:5 | 1.33 | 0.8 | 0.337 |
| 2000 | 5 | 2000:5 | 1 | 0.8 | 0.422 |
| 2500 | 5 | 2500:5 | 1 | 0.8 | 0.438 |
| 3000 | 5 | 3000:5 | 1 | 0.8 | 0.526 |
| 3200 | 5 | 3200:5 | 1 | 0.8 | 0.561 |
| 4000 | 5 | 4000:5 | 0.8 | 0.8 | 0.973 |
